Specification:

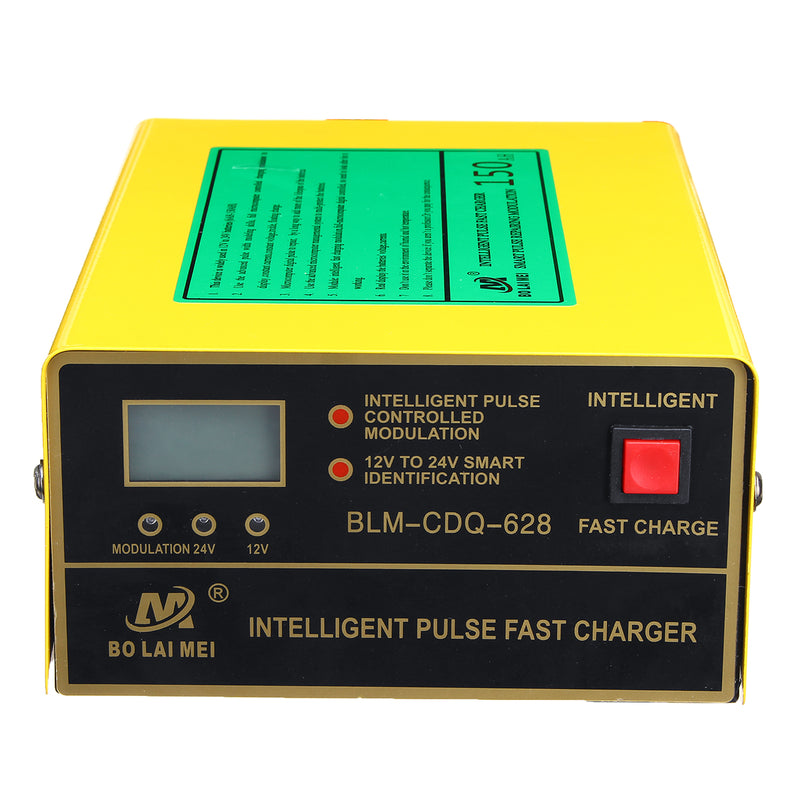

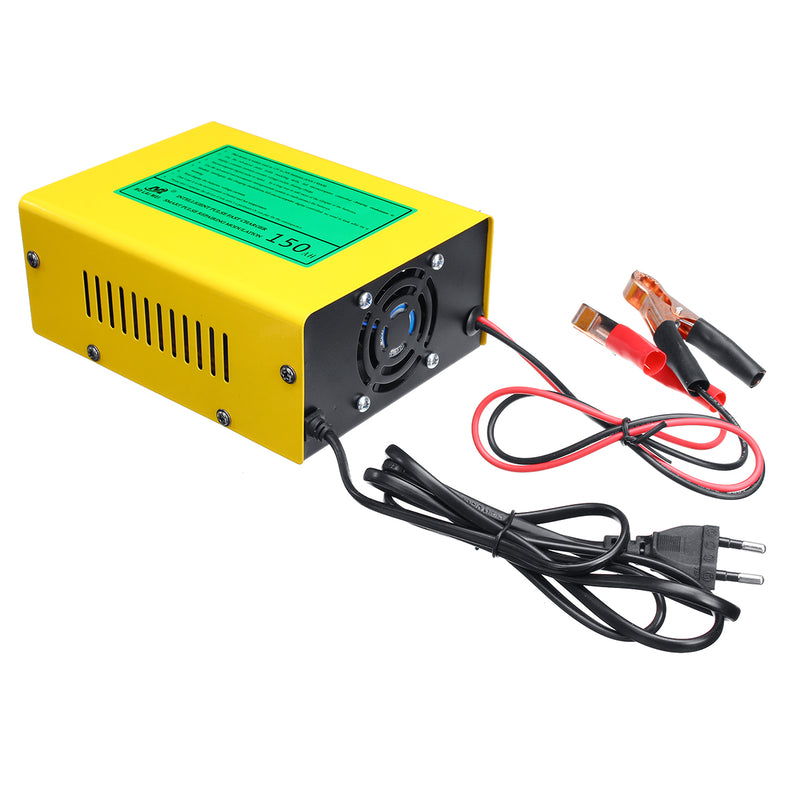

Name:12V/24V 150000mAh Pulse Repair With LCD Lead Acid Battery Intelligent Charger For Car Motorcycle
Material:Plastic Shell
Rated Output: 12/24V DC, 10A Max.
Working Current: 0-10A Adjustable automatically
Input Voltage: 150V-250V 50-60Hz
Voltage Idenification : 12Peak (8-14.5V); 24VPeak (18-29V)
Battery Range: 6000mAh -150000mAh
Work Temperature: 98%
Working Temperature Range: -30℃ +50℃
Power Line Length: approx. 135 cm
Output Line Length: approx. 60cm
Size:(L×W×H):approx. 17.5×13.5×7.5cm
Product: approx. 700g
Product Description:
Mode: Switch, Voltage Display
Battery Type: Lead-acid Battery
Voltage Detection: Yes
Short Circuit Protection: Yes
Overheat Protection: Yes
Low Voltage Protection: Yes
Reverse Connection Protection: Yes
Cooling: Fan
Application:Various motorcycles, family cars, business cars, off-road vehicles and minivans.
Features:
- LED LCD display. When charging, LED screen is used to display the charging status.
- Voltage indicator. Intelligent identification of 12V or 24V batteries.
- Fan heat dissipation. According to the charger in use stage to determine the speed of fan heat dissipation.
- Anodic oxidation copper plating technology was adopted. The corrosion of the clamp by sulfuric acid was slowed down, and the life of the clamp was prolonged greatly.
- Four-stage charging can repair batteries intelligently.
- 4 protections. Overheat protection, short circuit protection, low voltage protection, reverse connection protection.
Package includes:
1x Battery Intelligent Charger
1x Manual
Note:
- Disconnect the power supply before connecting or disconnecting the battery charger to the battery.
- High pressure inside, non-professional personnel are strictly prohibited to open.
- Purchase please select the same polarity consistent socket, charger
- This charger please for indoor,beware of rain
- Pls check the capacity (mAh) of your battery before buying the charger! Thanks!
- Do not be carried with the vehicle, prevent shock.
