Feature:
When using 12-24V DC input, the supply current is required to be no less than 4A at 12V and not less than 8A at 24V.
It can be powered by switching power supply, battery or lithium battery pack, or it can be rectified and filtered by high-power transformer. The filter capacitor is not less than 10000uF.
| Input voltage |
Output voltage |
Maximum power |
| 12V |
10000V |
100W |
| 24V |
20000V |
200W |
Package includes:

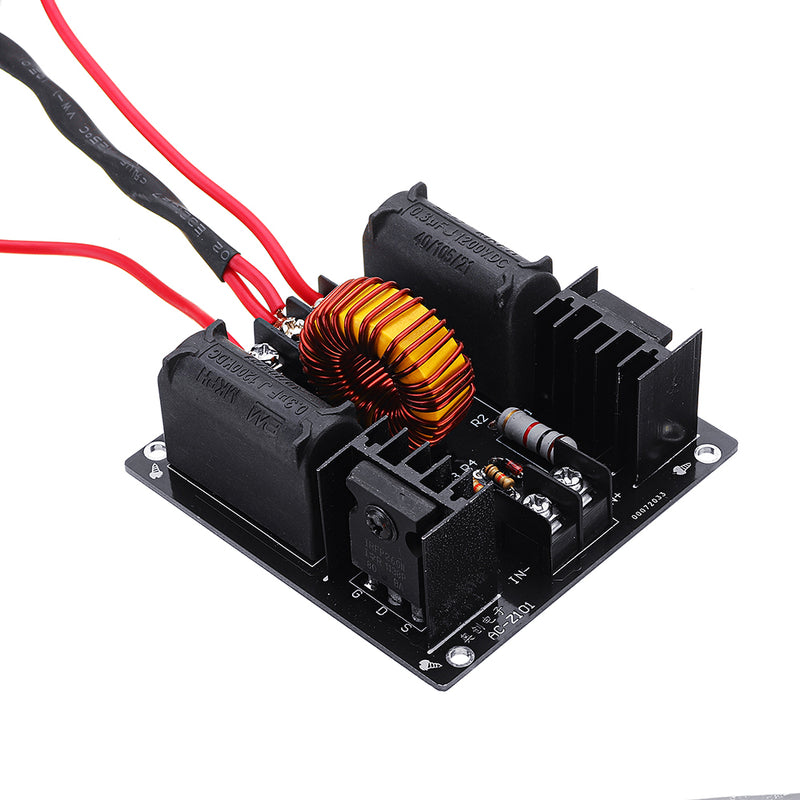

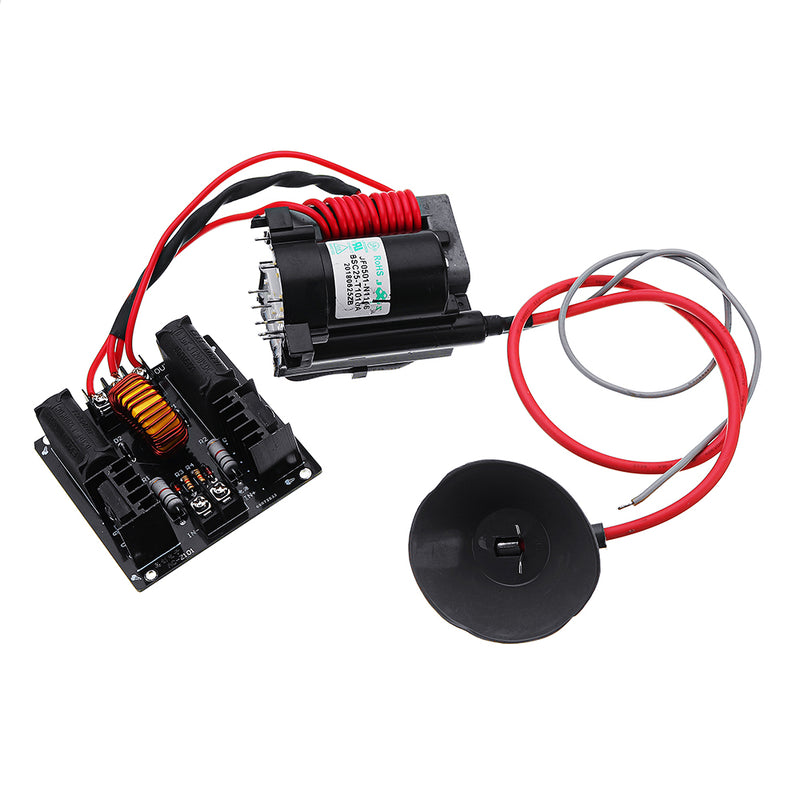

1 x ZVS High Voltage Power Module
24V200W switching power supply arcing effect, the arc length can be up to 6-7cm:
