Description:
128 x 160 TFT Color Display Multi-functional Transistor Tester Diode Thyristor Capacitance Resistor Inductance MOSFET ESR LCR Meter Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate.
Features:

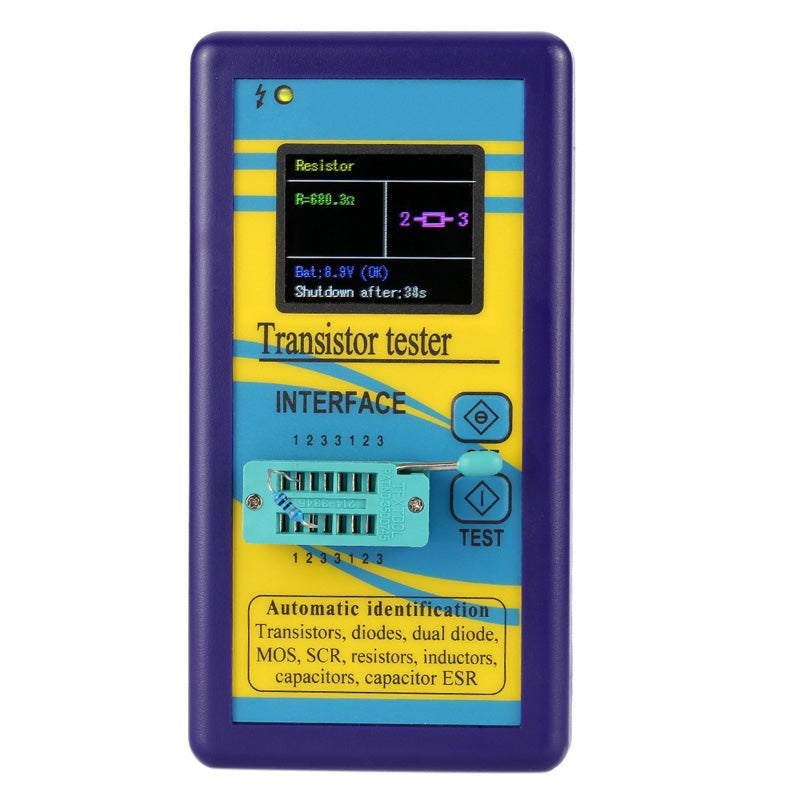

128 x 160 TFT color display for easy readings, can display measured data and graphics.

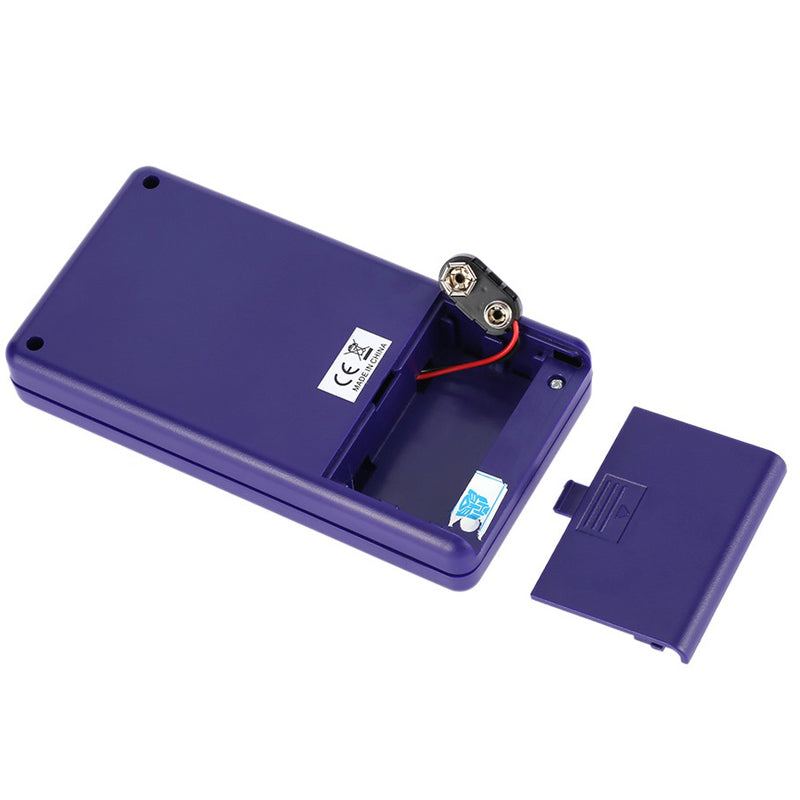

Powered by 9V battery(NOT included).

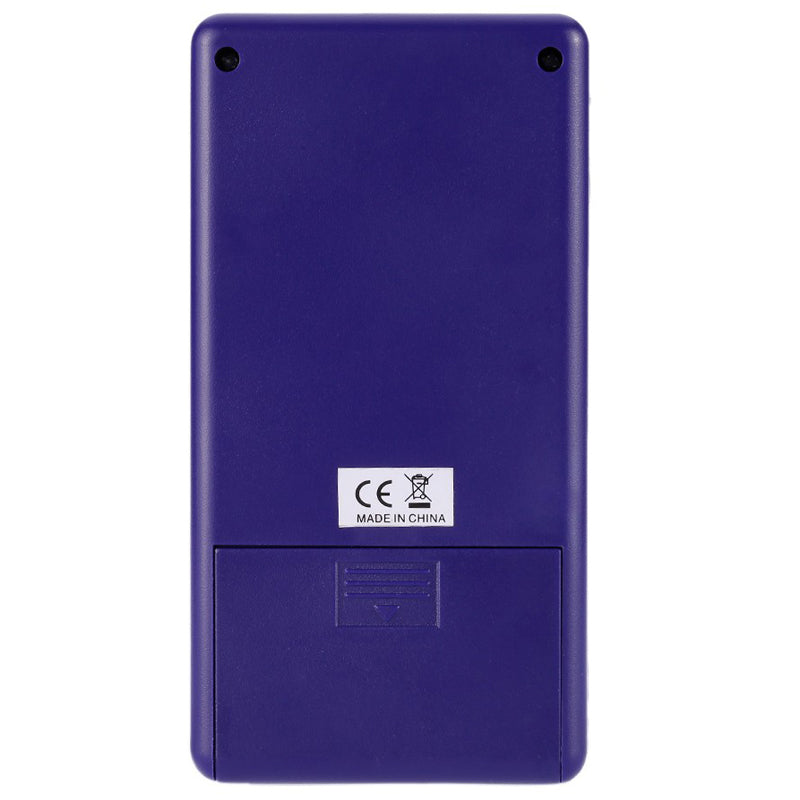

All components are protected by a plastic case, convenient to carry.
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices.
Automatically test the pins of a component and display on the LCD.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
Two-button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.
Specifications:
Case Color: Purple
Display: 1.8" TFT Color Display
Material: PCB + Plastic
Shutdown Current: 20nA
Resistor Test Range: 0.5Ω-50MΩ
Inductor Test Range: 0.01mH-20H
Capacitor Test Range: 25pF-100000uF
Item Size: 13.5 x 7 x 2.2cm / 5.3 x 2.76 x 0.86in
Item Weight: 99g / 3.5oz
Package Size: Approx. 16 x 8 x 2.5cm / 6.3 x 3.15 x 0.98in
Package Weight: 102g / 3.61oz
Package included:
1 x Transistor Tester (battery not included)
Note: Please make sure that capacitors are discharged before testing.
Details pictures:
