Description:
Led power switch momentary type.
This has a wide range of functions.
For example, it can be applied as the switches for the additional equipment inside & outside the vehicle.
Easy setup. All you need is a 19mm hole and the switch will sit in nicely.
Specification:
Model Number: 683688

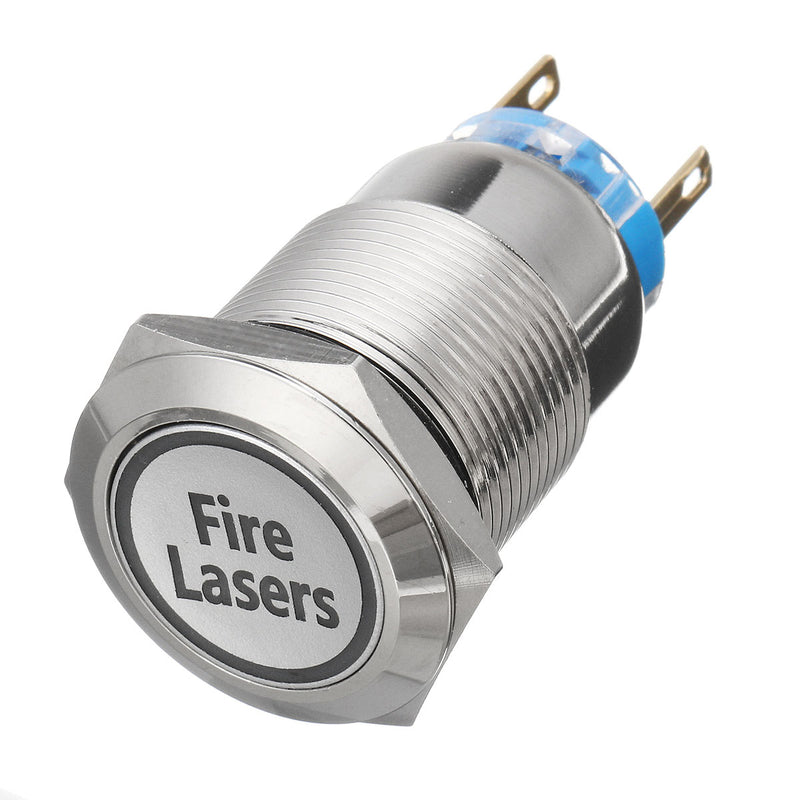

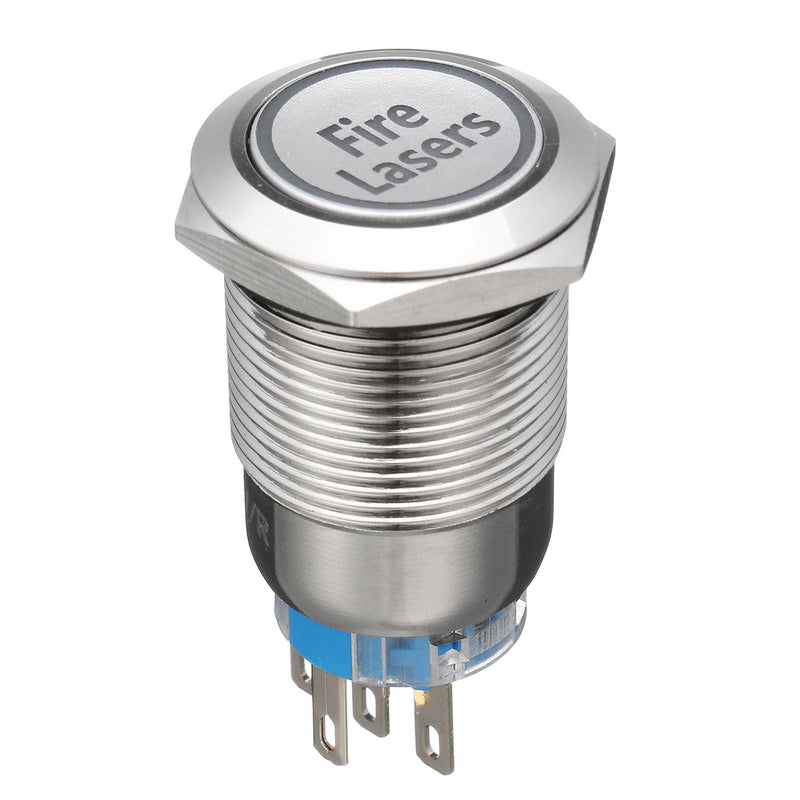

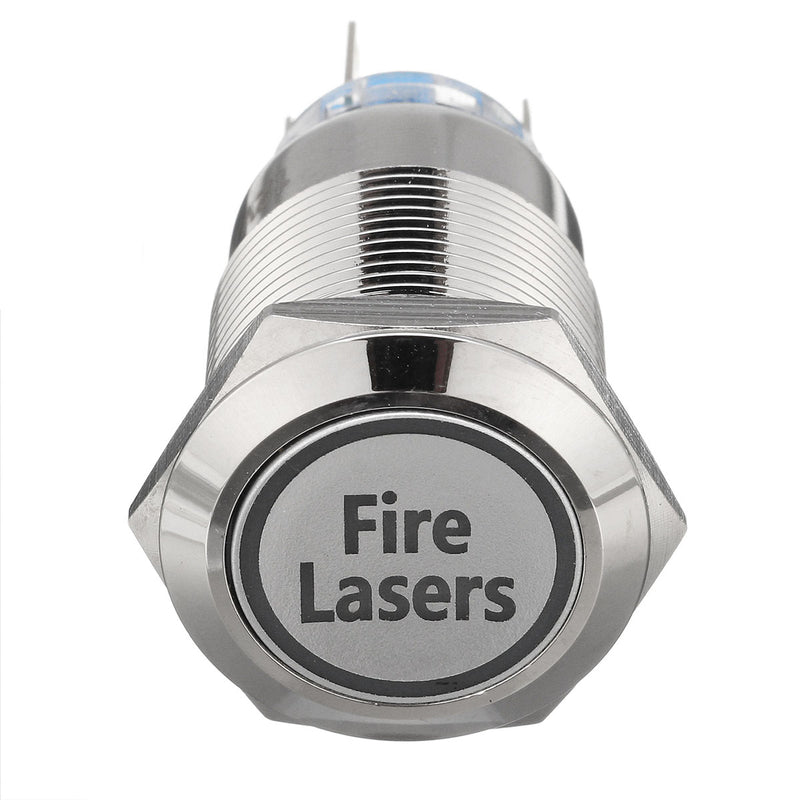

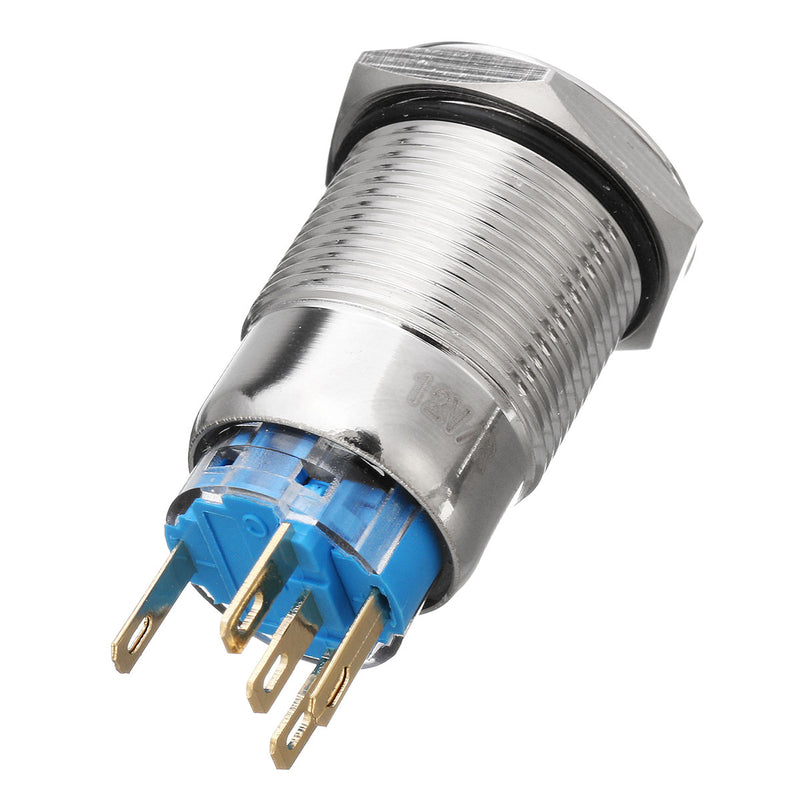

Product Name: Fire lasers led light push button momentary switch
Material: Metal
Body Color: Silver
Light Color: Red/Yellow/Blue/Green/White
LED Voltage: 12V only
Switch Rating: 5a/250vac
Contact Configuration: 1NO 1NC
Operation Type: Momentary
Depth Inc Contacts: 40mm
Head Diameter: 22mm
Button Diameter: 15mm
Hole Size Required: 19mm
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.There are no instructions included in this kit.Professional installation is highly recommended!
4.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
Package Included:
1 X Led Light Push Button Momentary Switch (Fire Lasers)
