Description:
1. PVC Screen Protector: waterproof surface
2. Easy to read with LCD display, big figures
3. Small size, light weight, easy assembly and disassembly, easy to carry and use
4. Multifunctional: battery meter & real-time voltage meter, easy switch between two models
4. Easy Use LCD 12V lead acid Battery Meter
5. Reverse Polarity Protection
6. Display: Power, Voltage, Close, the key for cycle.
7. Voltage Range: 6V-63V, products will display based on the voltage value , voltage fluctuations,
power meter will be follow as the voltage fluctuation!
8. The product is suitable for 3.7V lithium series multi-platform, 3 string, 4 string, 5 string, 6 string,
7 string and 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string
Specification:
Working Current: <5mA
Display: LCD

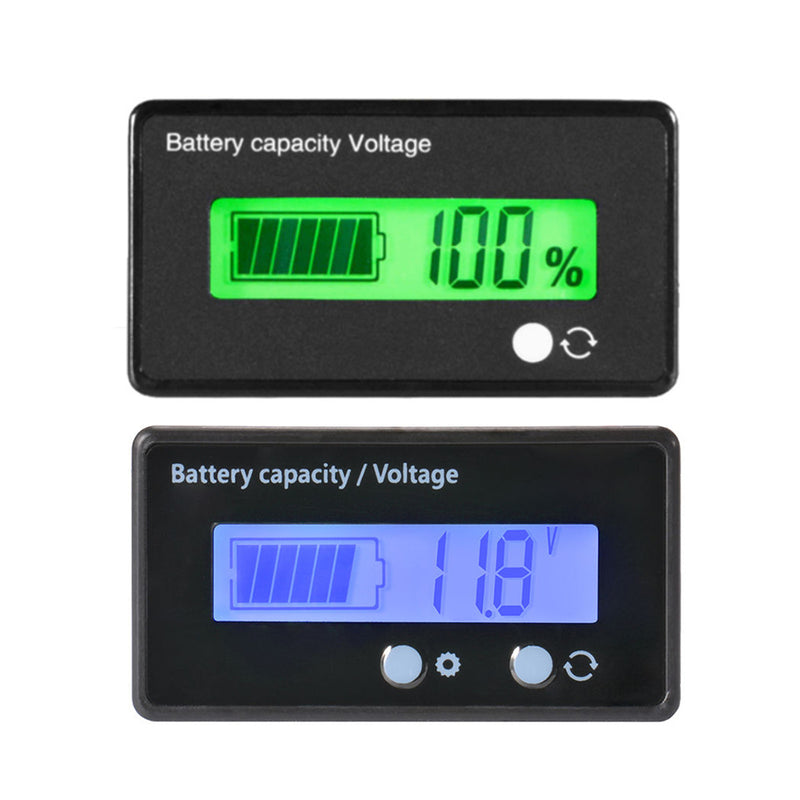

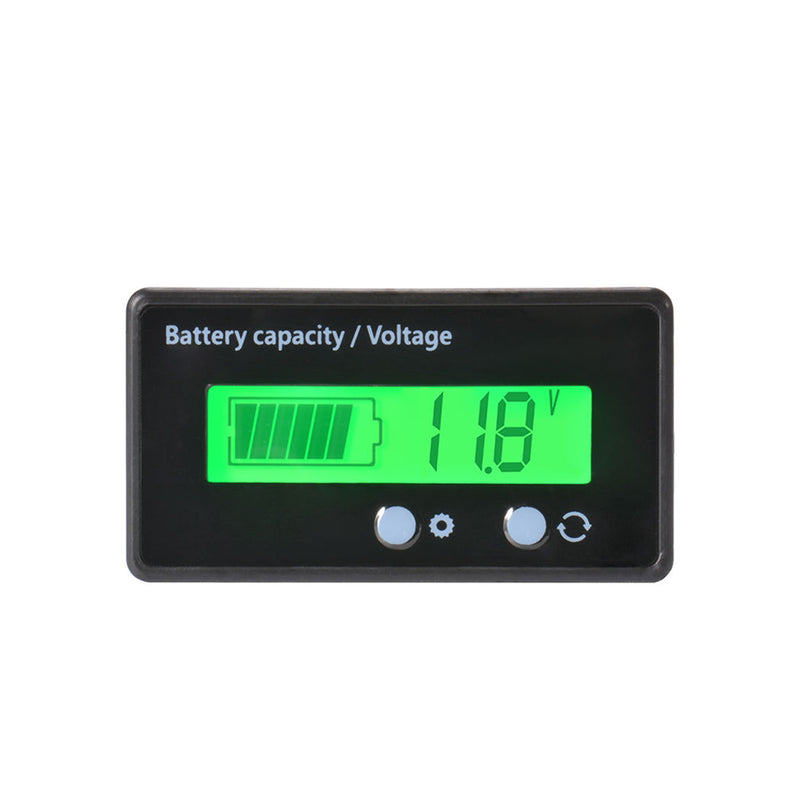

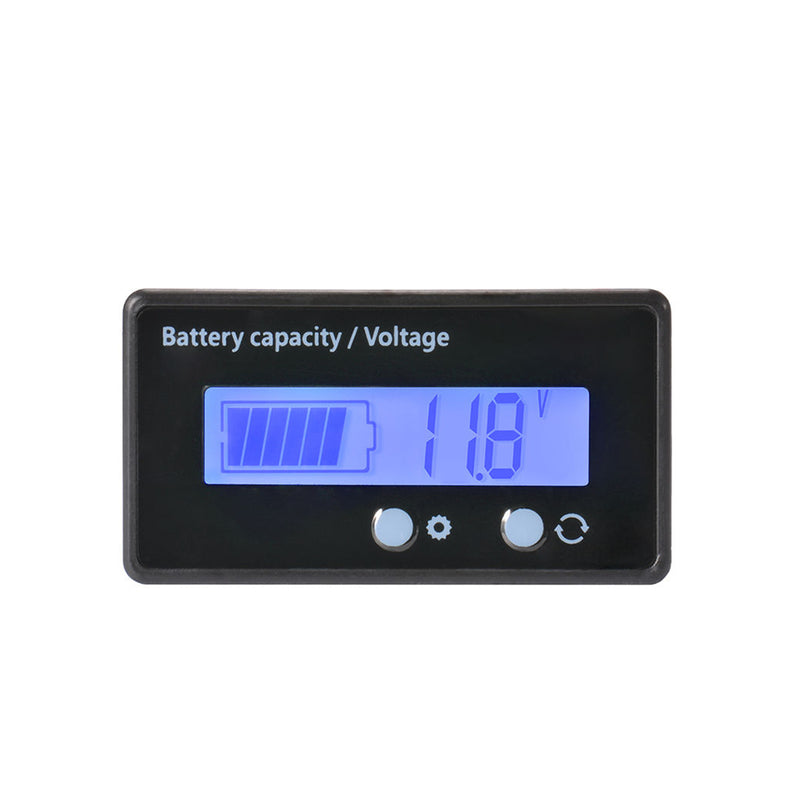

Display Color: Blue / Green
Size Detail: 61*33*13.5mm

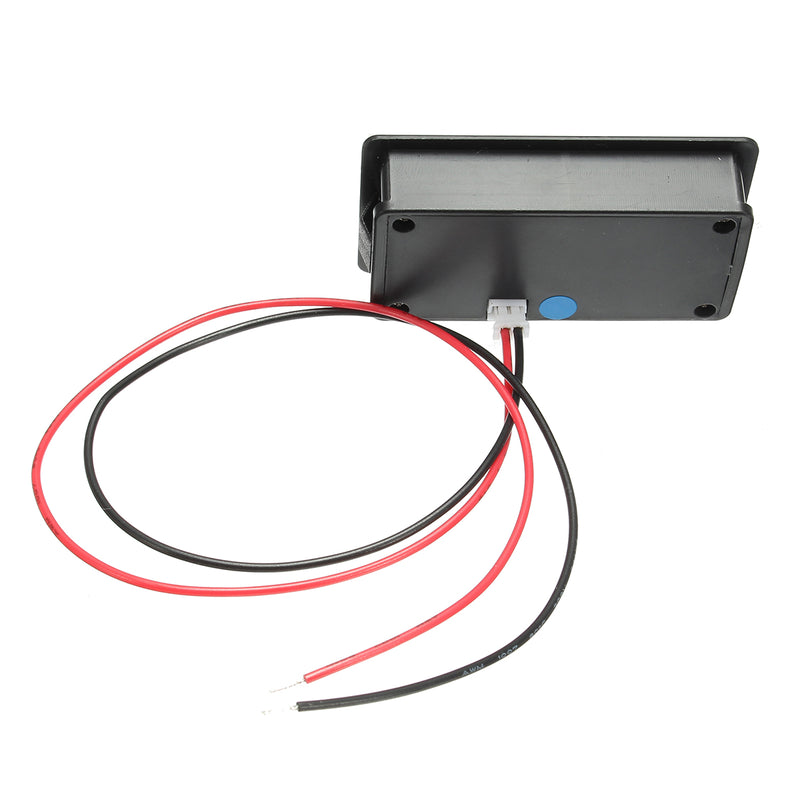

Cable Length: 30cm
Instructions:
1. Press and hold switch on the product, power on, automatically select the interface ( please follow as the code corresponds blow)
2. Select your battery type after corresponding, for example 3 series lithium battery,
you need to enter the selection screen, press the key point to for L3 interface, then off,
re-energized, choose success, such as the need to set 12V lead-acid batteries,
the key point press to P12V interface, power, re-energized, both choose success
3. instruments can be used if you Select successful. Meter shows the power interface,
tap switch, switch to voltage interface, click the switch, turn off the meter. cycle
shown as the code corresponds
Fitment:
Code:
L3: 3 string lithium
L4: 4 string lithium
L5: 5 string lithium
L6: 6 string lithium
L7: 7 string lithium
L8: 8 string lithium
L9: 9 string lithium
L10: 10 string lithium
L11: 11 string lithium
L12: 12 string lithium
L13: 13 string lithium
L14: 14 string lithium
P12V: 12V lead-acid
P24V: 24V lead-acid
P36V: 36V lead-acid
P48V: 48V lead-acid
Package Included:1 X 12V 24V 36V 48V 6V-63V LCD Voltmeter Lead-Acid Battery Capacity Indicator
