Specification :
| Model |
GLS-1202000G |
| Output Power |
24W |
| Output Voltage |
12V DC |
| Output Voltage Tolerance |
±5% |
| Output Current |
2A |
| Output Current Range |
0~2A |
| Efficiency |
82% |
| Input Voltage Range |
100~240V |
| Input Current |
0.3A MAX |
| Surging Current |
30A/24V |
| Leakage Current |
< 1mA/240V AC |
| Ripple and Noise |
<50mVp-p |
| Into line Stability |
±0.5% |
| Load Stability |
±0.5% |
| Overload Protection |
105%~200%, type: cut off output, automatic recovery |
| Workind temperature |
-20℃~45℃,30%~85%RH |
| Start,Rise,Hold Time |
200ms 100ms 20ms |
| Plug Specifications |
US/EU/AU/UK |
| Output DC head |
5.5*2.1 |
| Output DC line |
1.2m |
| size |
83*43.5*31mm |
Features :
1. High efficiency, low loss, circuit design environment; with overvoltage protection, overload protection;
2. Products nice, high-temperature flame shell, ultrasonic welding, safe and reliable;
3. Output interference is very small, the output voltage stability, better able to extend the life of the external appliance;
4. Suitable for liquid digital photo frames, monitors, LED lights billboards, LCD monitors, etc.
Package Included :

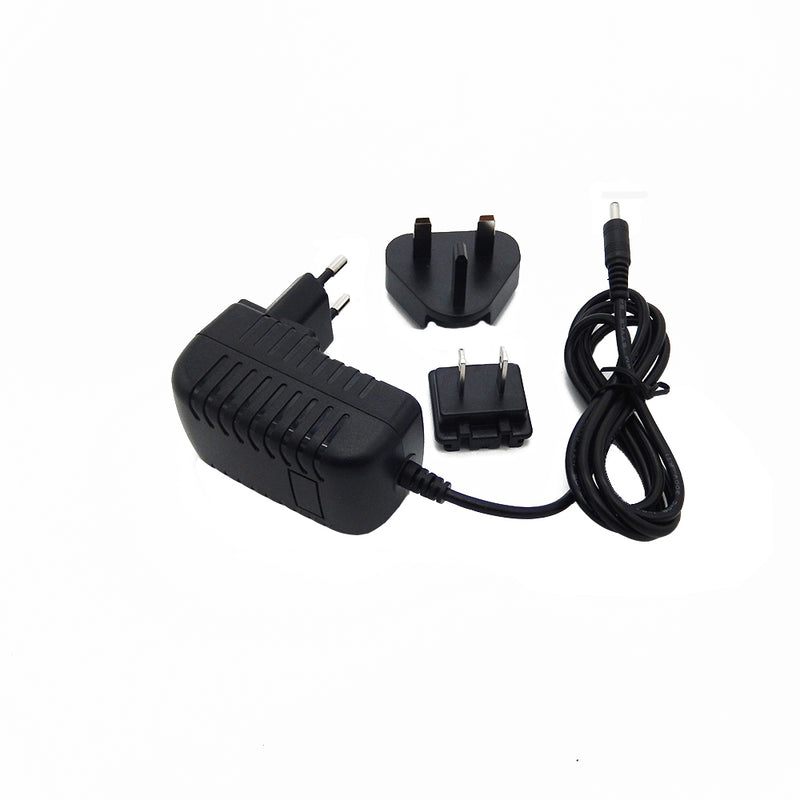

1 x 12V 2A 24W Power Adapter
