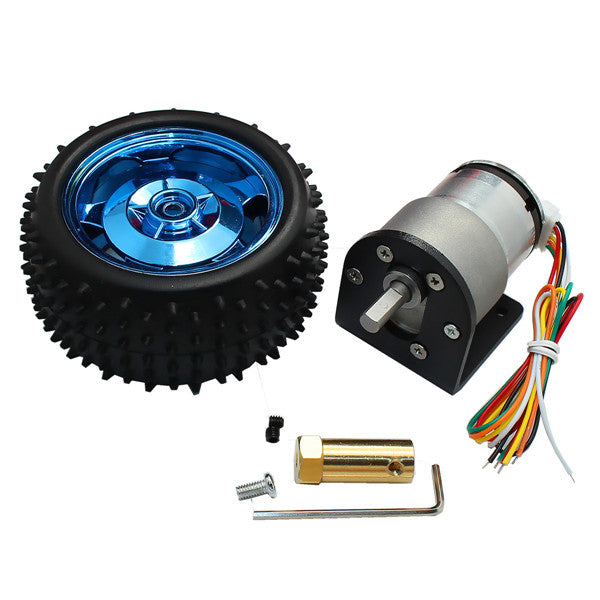

12V 320rpm/12V 107rpm/6V 160rpm DC Gear Motor Encoder Motor with Mounting Bracket and Wheel

Description:
12V 320rpm/12V 107rpm/6V 160rpm DC Gear Motor Encoder Motor with Mounting Bracket and Wheel

Specification:

Type	12V 320rpm	12V 107rpm	6V 160rpm
Rated Voltage	DC 12V	DC 12V	DC 6V
No-load Speed	320RPM 0.15A	107RPM 0.15A	160RPM 0.07A
Max Efficiency	1.7kg.cm/253rpm/4.2W/0.60A	4.3kg.cm/85rpm/3.8W/0.60A	0.8kg.cm/125rpm/1.0W/0.3A
Max Power	4.0kg.cm/160rpm/6.7W/1.2A	10.0kg.cm/52rpm/6.0W/1.12A	1.8kg.cm/80rpm/1.5W/0.6A
Stall Torque	7.5kg.cm 3.4A	20.0kg.cm 3.4A	3.6kg.cm 1.7A
Retarder Reduction Ratio	1 : 30	1 : 90	1 : 30
Hall Resolution	Hall x Ratio 11x30 = 330PPR	Hall x Ratio 11x0 = 990PPR	Hall x Ratio 11x30 = 330PPR

Outline Drawing:























Package Included:
1 x Encoder Motor
1 x Mounting Bracket
1 x Wheel
