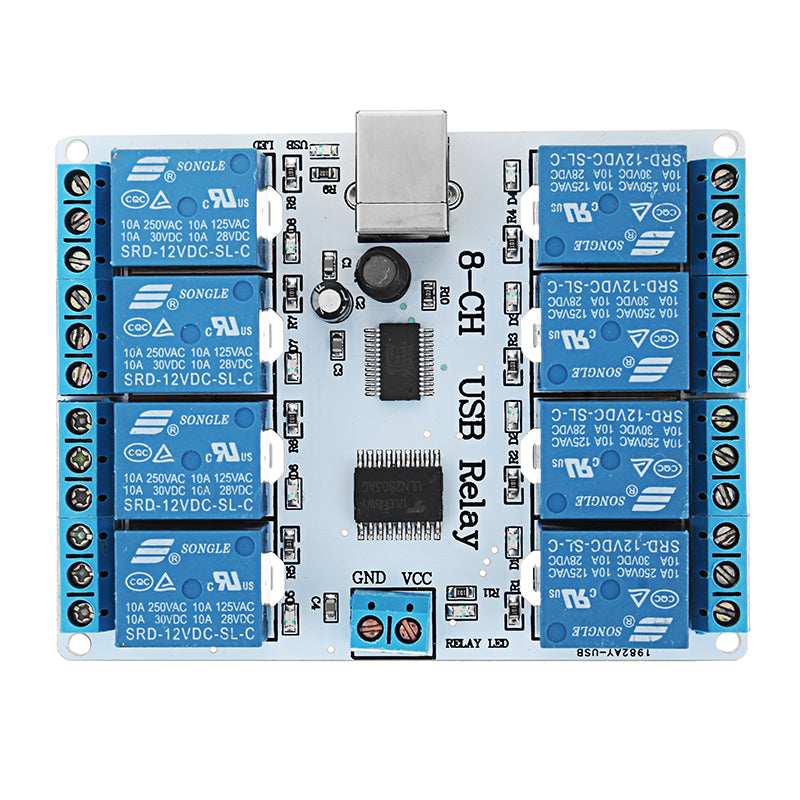

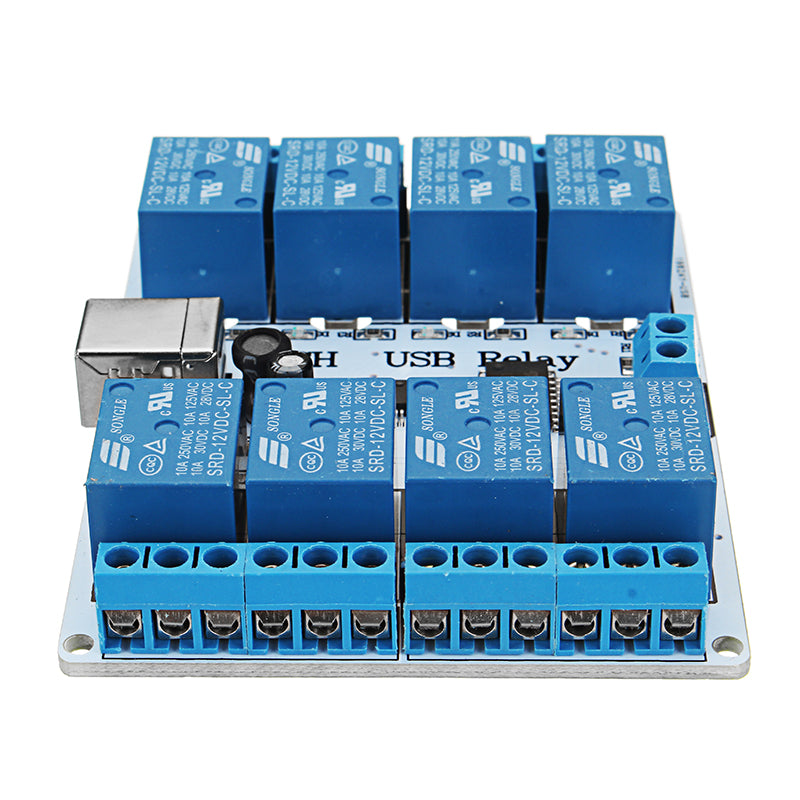

Feature:
8 SPDT relays SRD-12VDC-SL-C
Relay specification: 10A 250VAC/10A 125VAC/10A 30VDC /10A 28VDC
Power supply: 12 VDC
Current consumption: - 300 mA
Led for each relay output
With power LED
With USB LED
Size: 93mm x 70mm x 16mm
Windows software examples: VB6, BCB6, Java (netbeans), VB.NET 2010 Express, C++.NET 2010 Express
PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask
Extra PCB openings for better voltage isolation
Package includes:
1 x 12V USB Relay Module
,,,,,,,
