Description:
Made from ABS plastic material, which is stable and durable.
Easy and convenient to install, you can finish its installation in a few minutes.

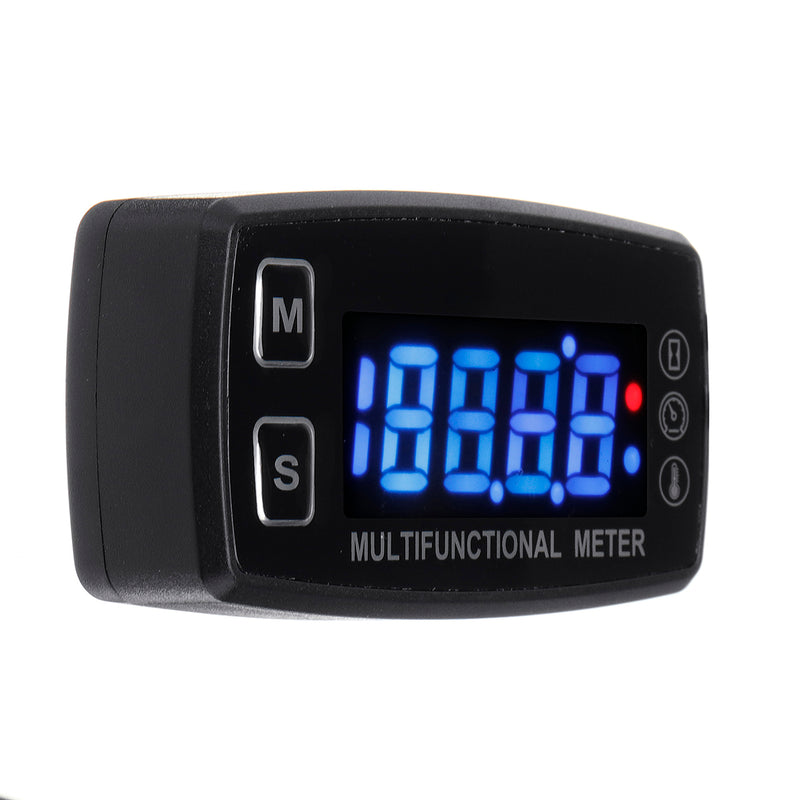

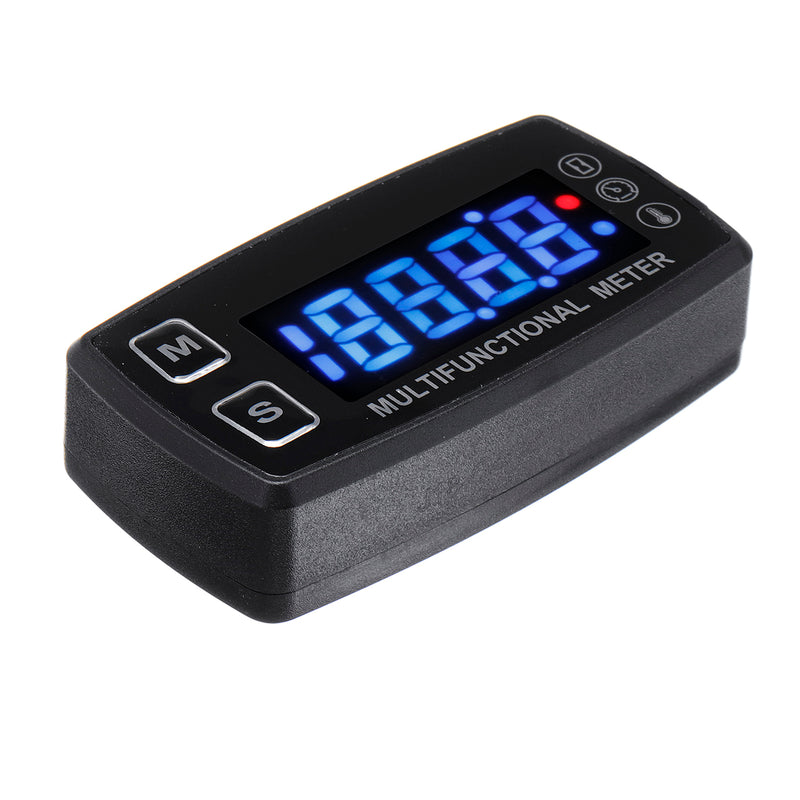

Multi-functional hour meter, it can service as tachometer, hours meter and temperature meter.
Complete waterproof of IP67 level, easily deal with rainy weather or wet environment.
LED display is clear and more visible than the digital display, that is convenient and practical function.
Display RPM and temperature while engine is running and total hours when engine is off.
Specification:
Product Name: Multifunctional hour meter
Housing material: ABS
Total hour range: 19999h
Partial hour range: 19999h
RPM range: 0-19990RPM
Maintenance hour range: 0-1000h
RPM display accuracy: 10RPM
Waterproof level: IP67
Display mode: LED
Display window size: 41*17mm/1.6*0.7inch
Dimension: 69*37*18mm/2.7*1.5*0.7inch
Temperature measuring range: -40℃-+300℃(-40℉-+572℉)
Temperature measuring accuracy: 1%℃
Working voltage: DC 12V
Function: Hours Meter, Tachometer, Temperature Meter
Stroke and Cylinder/RPM range:
2 stroke 2 cylinder/0-19990
2 stroke 2 cylinder/0-15000
2 stroke 3 cylinder/0-10000
4 stroke 1 cylinder/0-19990
4 stroke 2 cylinder/0-19990
4 stroke 3 cylinder/0-19990
4 stroke 4 cylinder/0-15000
4 stroke 5 cylinder/0-12000
4 stroke 6 cylinder/0-10000
4 stroke 8 cylinder/0-7500
4 stroke 12 cylinder/5000
4 stroke 16 cylinder/0-3750
Package Included:
1 X Multi-functional Hour Meter
1 X Manual
2 X Zip Ties
1 X Screws Fitting
1 X Sensor Component
