Specification
Faceplate | Plastic (ABS)
Circuit Protection | Fuse
Switch Ratings | DC 12V
Panel Rating | Max Cumulative Amp | 5A
(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Product Dimensions | (W x H) 90 x 50mm
Mounting Depth | 45mm
Panel Cut-out (W x L) | 75 x 40 mm
Certification:CEFeatures

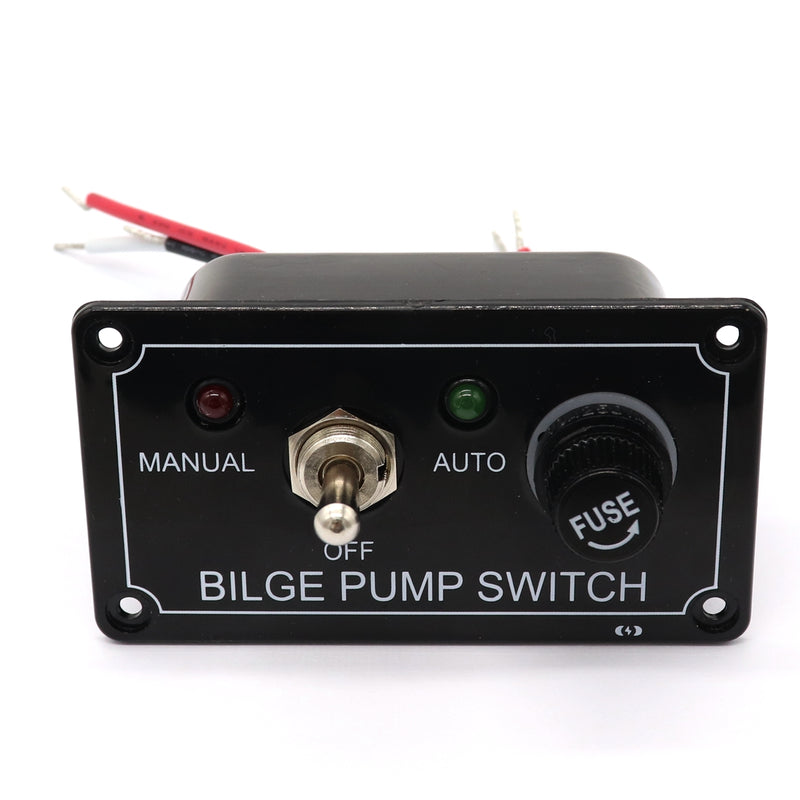

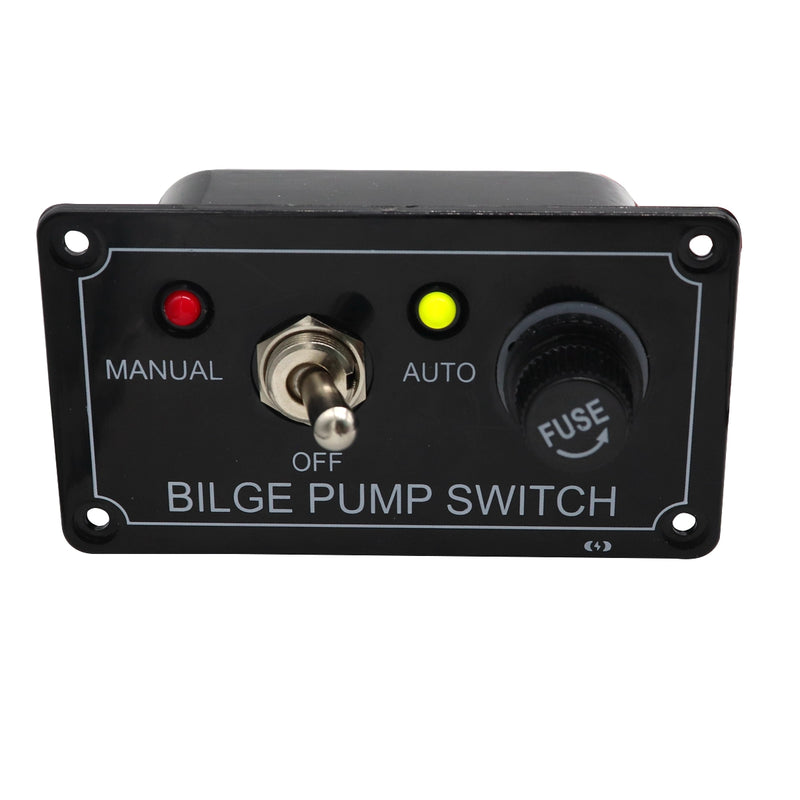

3-Way toggle switch (MANUAL - OFF- AUTO) with LED indication
Fuse holders with pre-installed fuses
Package include:
1x 5A fuse
4x screw
1x manual
