Description:
1-Cell(1S) 1.5V Version:
Input voltage : DC 3.5V-6V(Recommend DC 3.7V/3.8V/4.5V/5V)
Charging voltage : 1.5V
Charging current : 1A
2-Cell(2S) 3V Version:
Input voltage : DC 3.7-6V(Recommend DC 3.7V/3.8V/4.5V/5V)
Charging voltage : 3V
Charging current : 1A
3-Cell(3S) 4.5V Version:
Input voltage : DC 5-6V(Recommend DC 5V)
Charging voltage : 4.5V
Charging current : 1A
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 30mm x 15mm x 2.7mm
Features:
- Precharge Conditioning for reviving deeply discharged cells and minimizing heat dissipation during initial stage of charge?
- Constant-Current/Constant-Temperature operation with thermal regulation to maximize charge rate without risk of overheating
- Automatic Low-Power Sleep Mode when input supply voltage is removed
- Maintenance Charge Mode(Timer Termination)
- Automatic Recharge
Applications:
kids toys car
Digital Cameras
Solar charging
Bluetooth Applications
Audio equipment
Digital Camera
Electronic Dictionary
Portable Devices
Nickel Metal Hydride Battery Charger
Package Included:

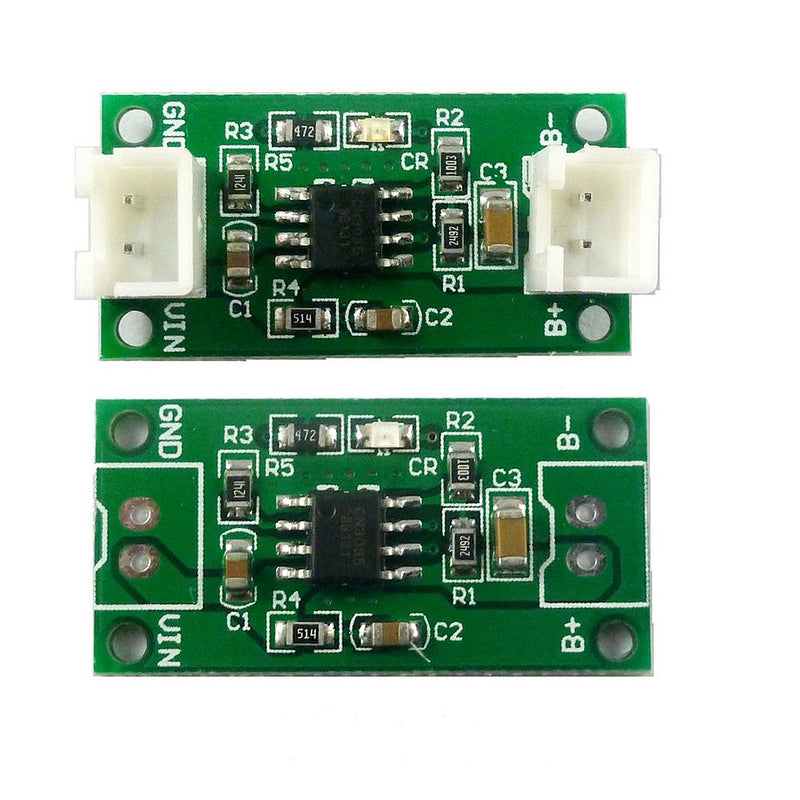

1 x Multipurpose Charger 1.5V 3V 4.5V CC/CV Charging Module with Terminal
