Specifications:
Model: LY2NJ (8 pins)
Coil voltage: DC24V
Coil Power: DC (W): ≤0.9AC (VA): ≤1.2
Contact Structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Pull-in voltage: ≤80% (V)
Release voltage: DC: ≥10% (V), AC: ≥30%
Contact resistance: ≤50 (mΩ)
Insulation resistance: ≤100 (mΩ)
Dimensions: 27.5 × 21 × 35.3mm

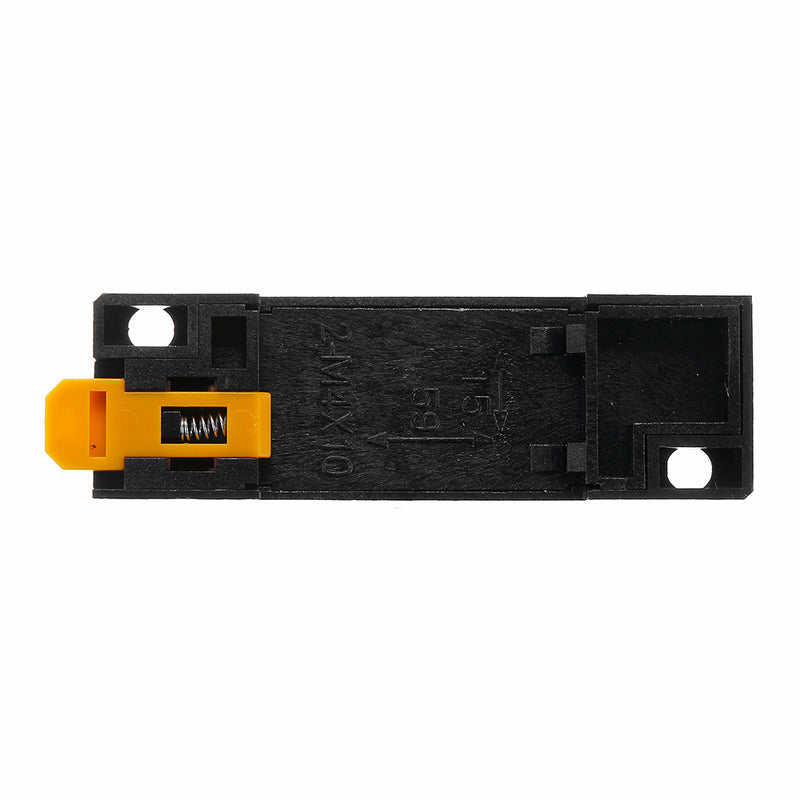

Terminals form: Socket
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency:
Mechanical 18,000 cycles / hour
Electrical 18,000 times / hour
Package included:

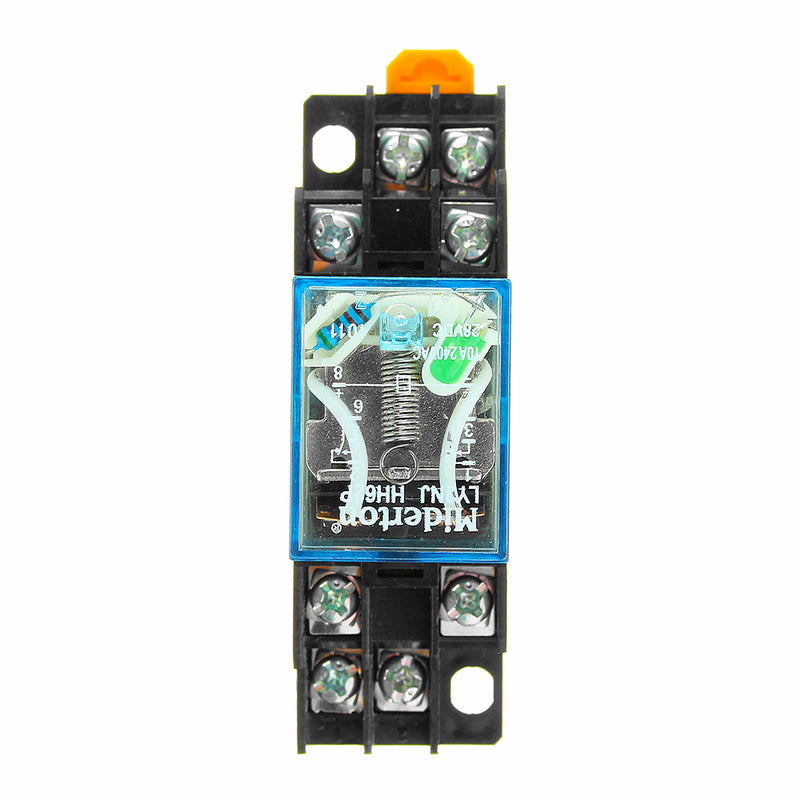

1 x DC24V Coil Power Relay with socket base
