Specifications:
Material: Mixture
Model Number: SCT-013-000
Type: Biosensor
Opening size:13mmx13mm
Non-linearity 3%(10%-120% rated input current)
1.5m leading wire,Φ3.5 3 core plug standard output.
Two form of output current, voltage (voltage output built-in the sampling resistor).
Core material: ferrite
Mechanical strength: opening and closing times, no less than 1000 times (20 C
Safety indicators: Dielectric strength 6000V AC/1min
Meet UL94-V0 flame retardant properties
Operating Temperature: -25 C ~ +70 C
Applications:
For AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection.
Package includes:
1 x Split Core Current Transformer

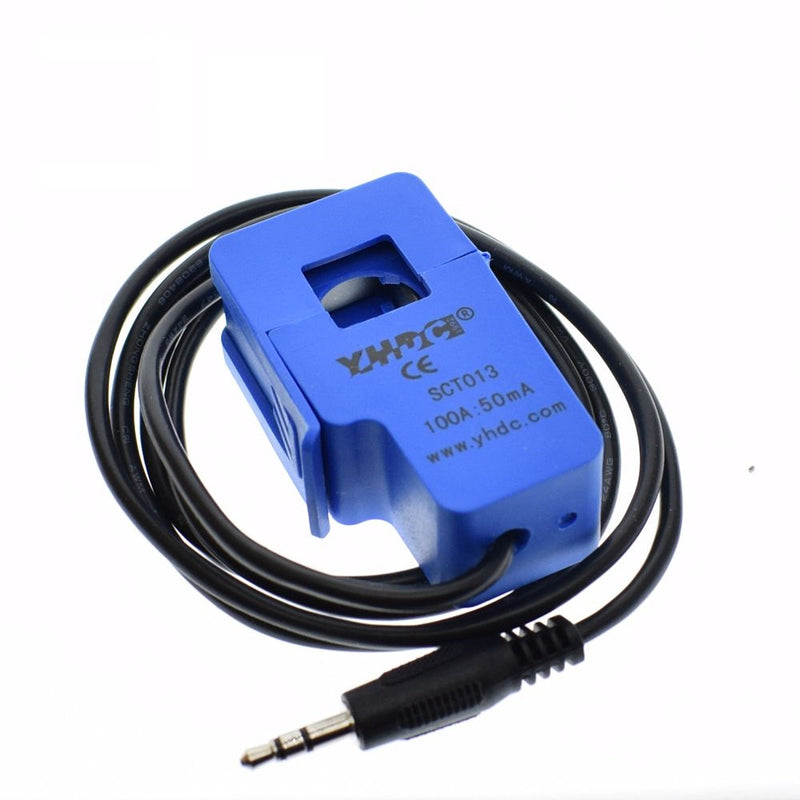

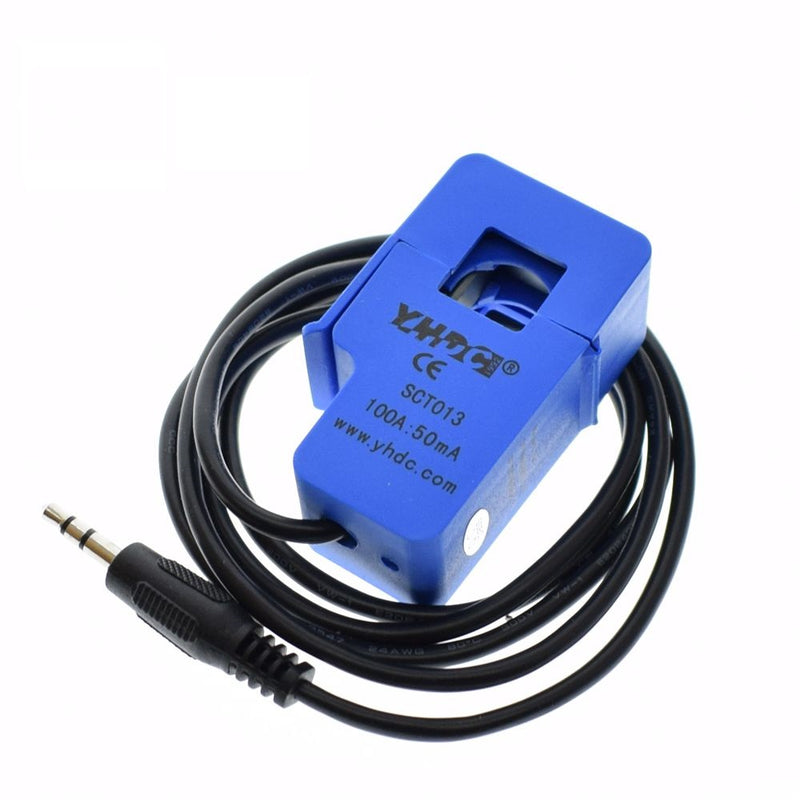

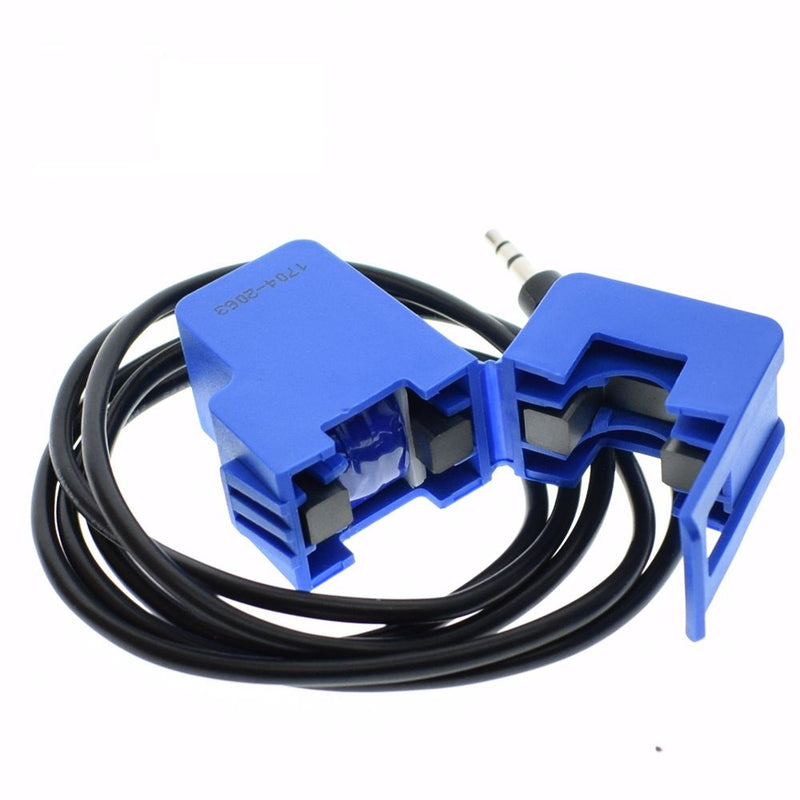

Details Pictures:
