Specifications:
Overcharge detection voltage: 4.25 ± 0.05V
Overcharge release voltage: 4.23 ± 0.05V
Over discharge detection voltage: 2.45 ± 0.1V
Upper limit continuous current: 2A
Overcurrent detection current: 2.5A
Charging voltage: 4.2V

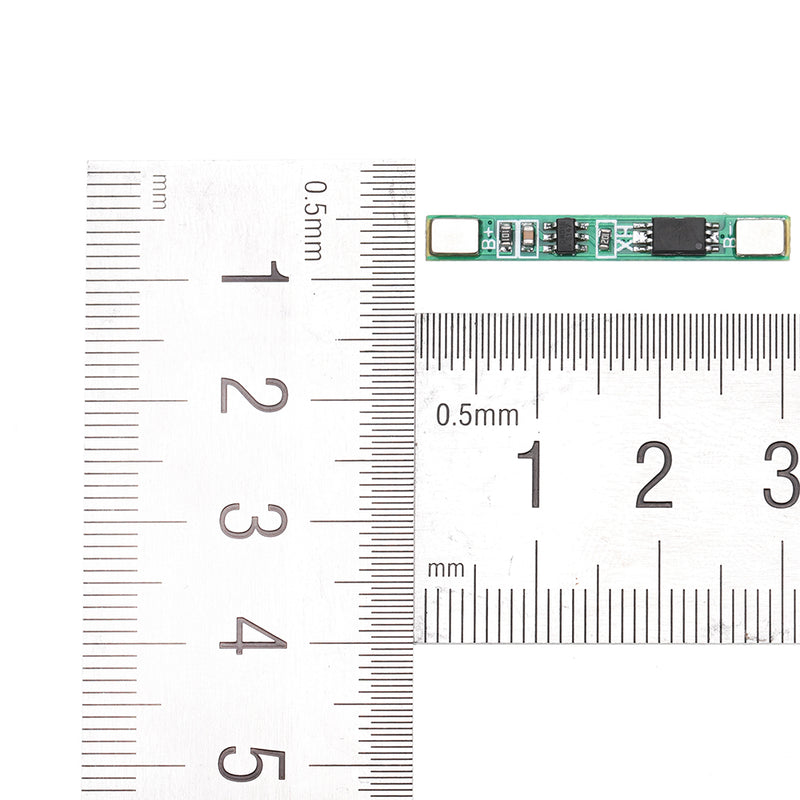

Product Size: 30 * 3.7 * 2.2MM

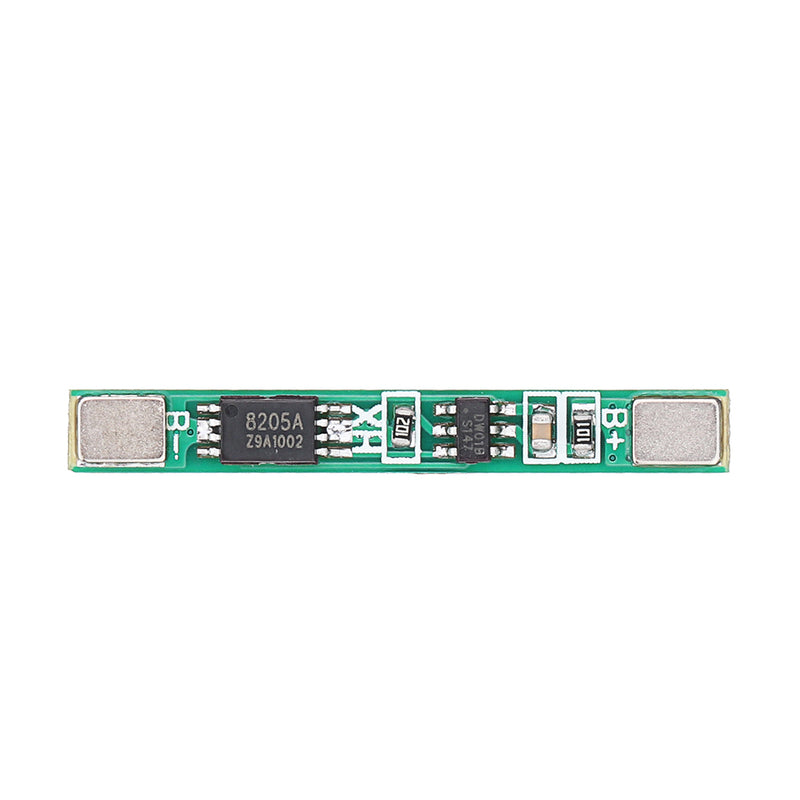

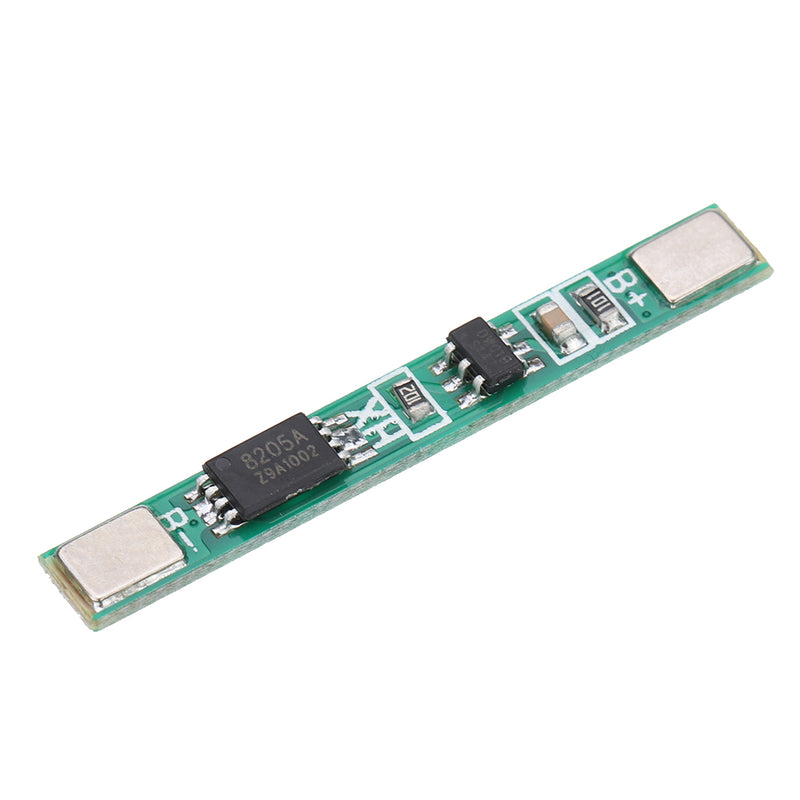

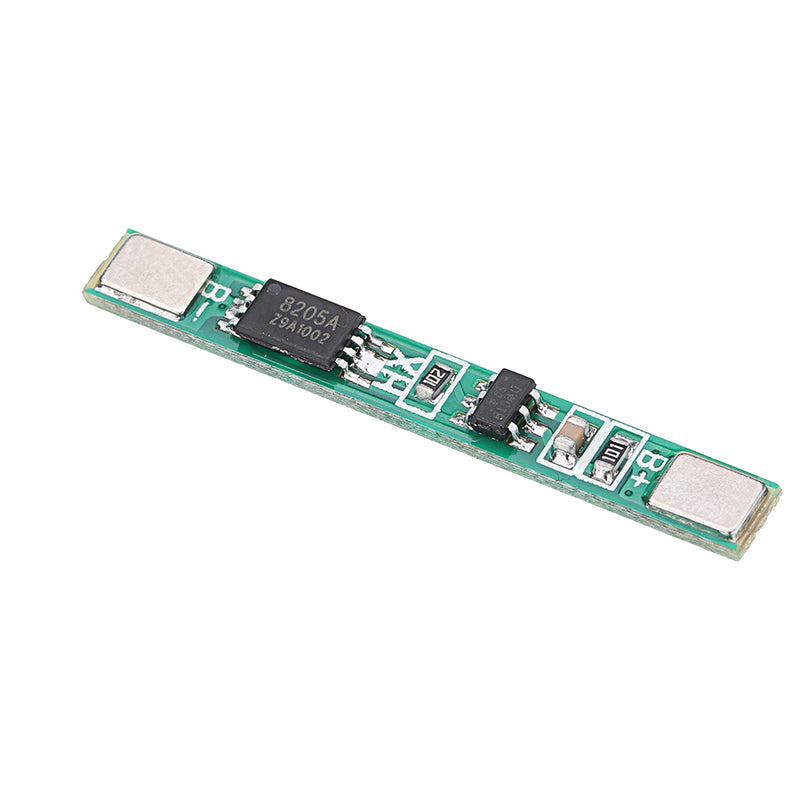

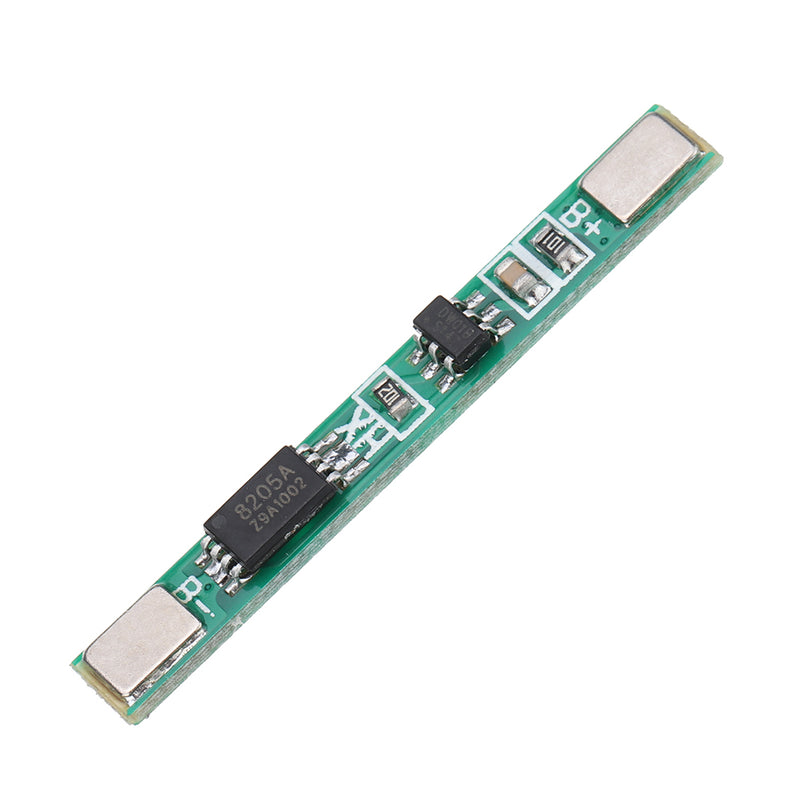

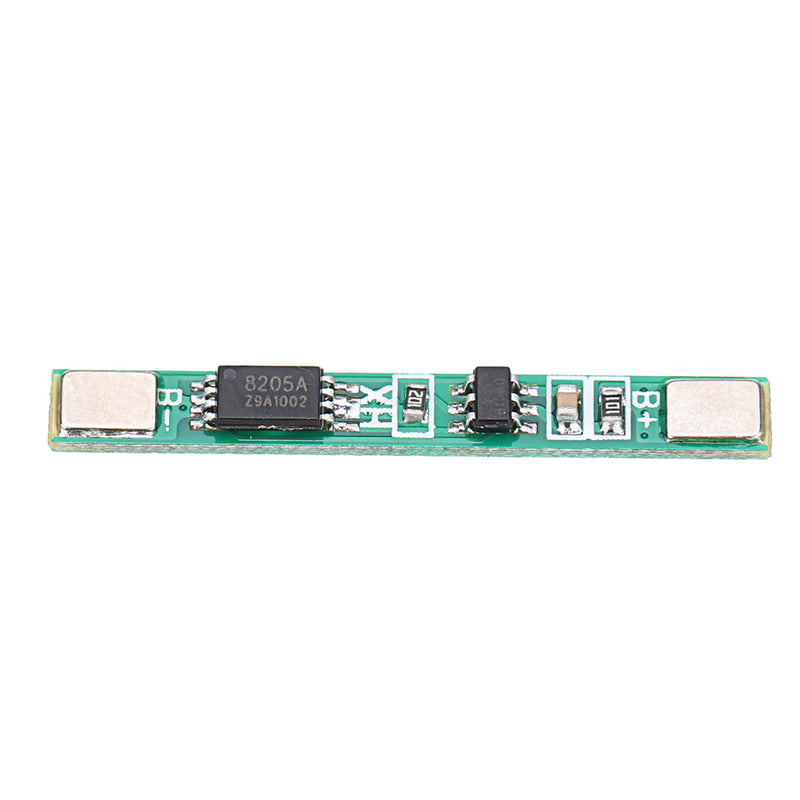

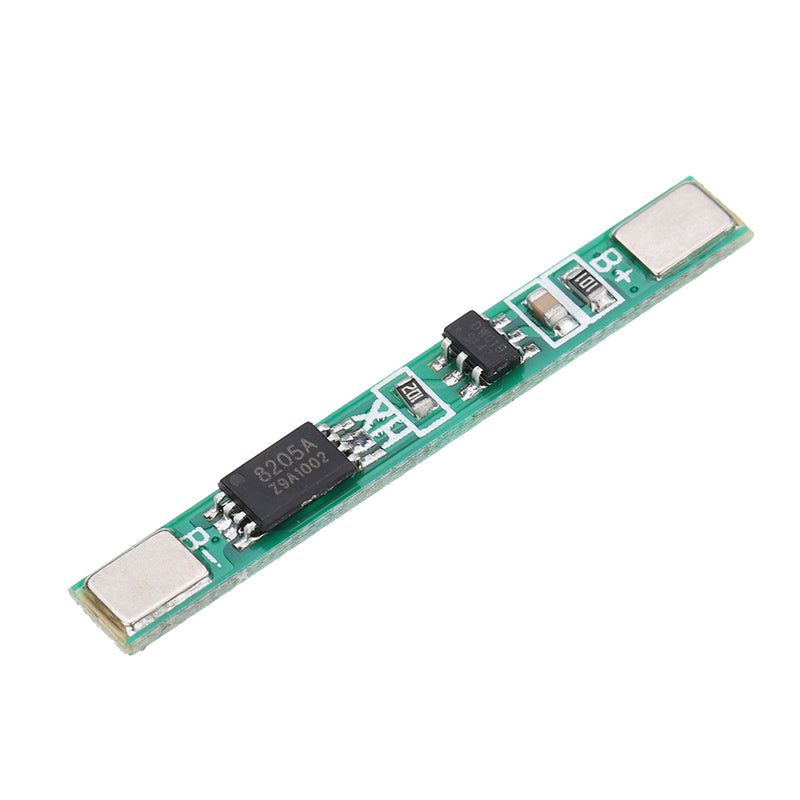

IC Components: DW01 + 8205A
The main function:Overcharge protection, over discharge protection, short circuit protection, overcurrent protection.

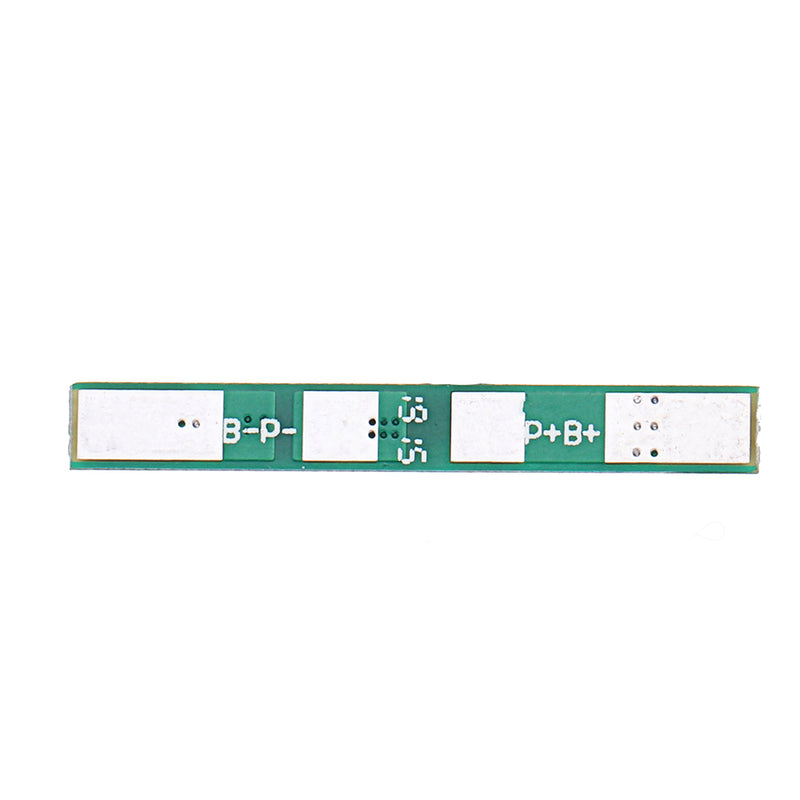

Wiring Instructions:
B +: Connected to the battery positive.
B-: Connected battery negative.
P +: For the battery pack output input positive
P-: For the battery pack output input negative
Package Included:

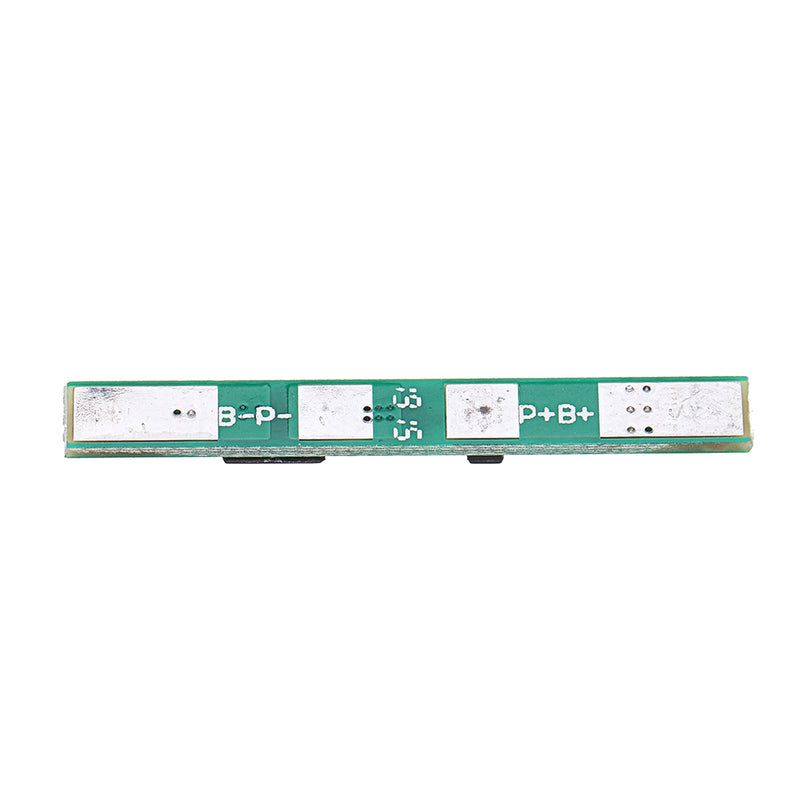

1 x 1S 3.7V 2A li-ion BMS PCM 18650 Battery Protection Board
