20 String 45A 72V 84V Lithium Battery Protection Board with Balance Board

Description:
20 String 45A 72V 84V Lithium Battery Protection Board with Balance Board

Specification:
Heat sink size: 120 * 60 * 9mm
Cable length: 400mm
Electrical parameters: As shown in following table

Features:
-With a balanced, same port 45A discharge.
-Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection.

Attention when connecting:
-When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
-In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage ≦0.05V, IR≦15 mΩ,capacity≦30mAh) to make sure the better consistency of the battery.
-Cell must be connected in parallel first, after then connected in series

Order of connection:
Step1: Connect charging /discharging wire , battery pack negative wire
Step2: After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!

Attention, ESD protection during work
Electrical parameters: (Lithium ion battery) (20 string)

Detail	Specifications	Tipical	Unit
Discharge	Continuous Discharging Current	45	A
Instantaneous Discharge Current	100	A
Charge	Charging Voltage	84	V
Charging Current	45	A
Overcharge Protect	Over-charge Detect	4.28±0.05	V
Protect Delay	100	mS
Over-charge release	4.08±0.05	V
Balance	Detect Voltage	4.2±0.025	V
Release Voltage	4.2±0.05	V
Balance Current	60±5	mA
Over-discharge Protect	Over-discharge Detect	2.55±0.08	V
Over-discharge Detect delay	50	mS
Release Voltage	2.9±0.1	V
Over-current Protect	Detect Voltage	150	mV
Detect Delay	15	mS
Current Detect	130±10	A
Release Condition	Cut Load
Short-circuit Protect	Protect Condition	Cut Load
Detect Delay	200	uS
Release Condition	Cut Load
Temperature Protect	Temperature Protect	/	℃
Resistance	Inner	≤15	mΩ
Self-Consumption	Working Current	≤70	uA
Sleep Current (when Over-discharge)	≤10	uA
Working Temperature	Range	-30/+80	℃

Package Included:

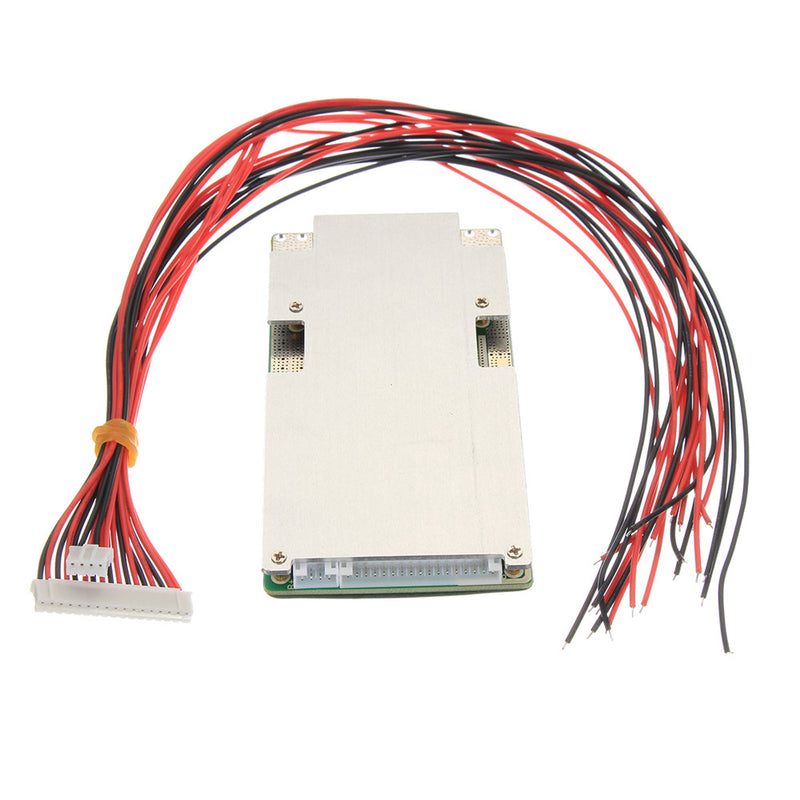

1x 20S 45A Lithium Battery Protection Board

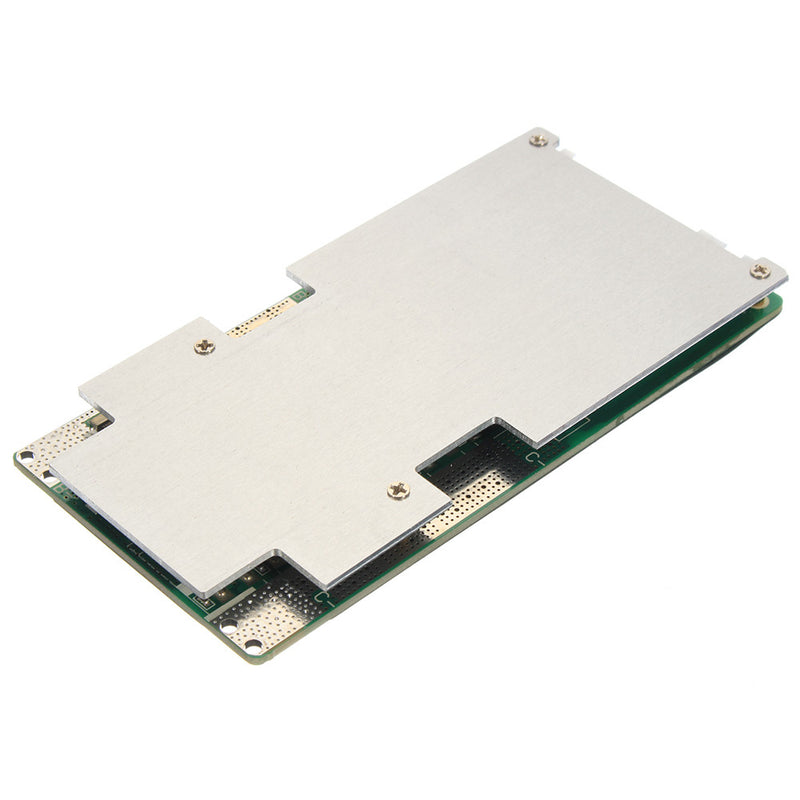

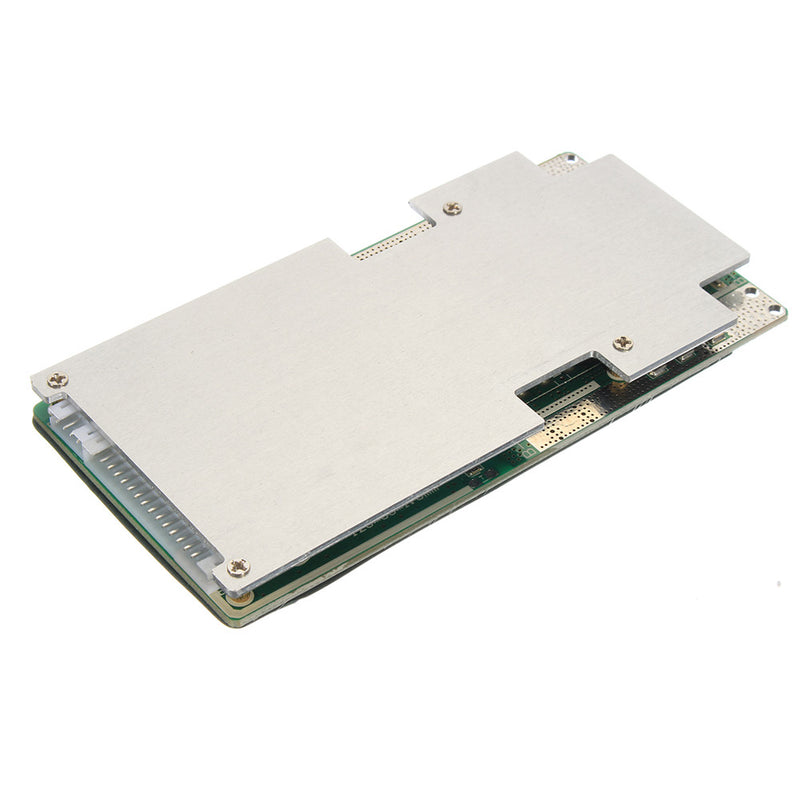

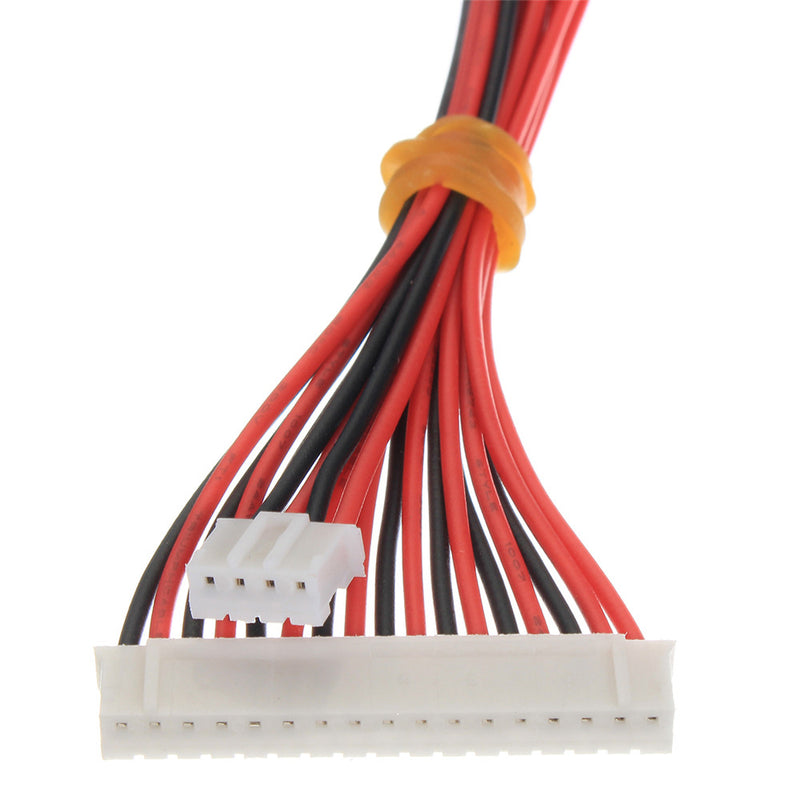

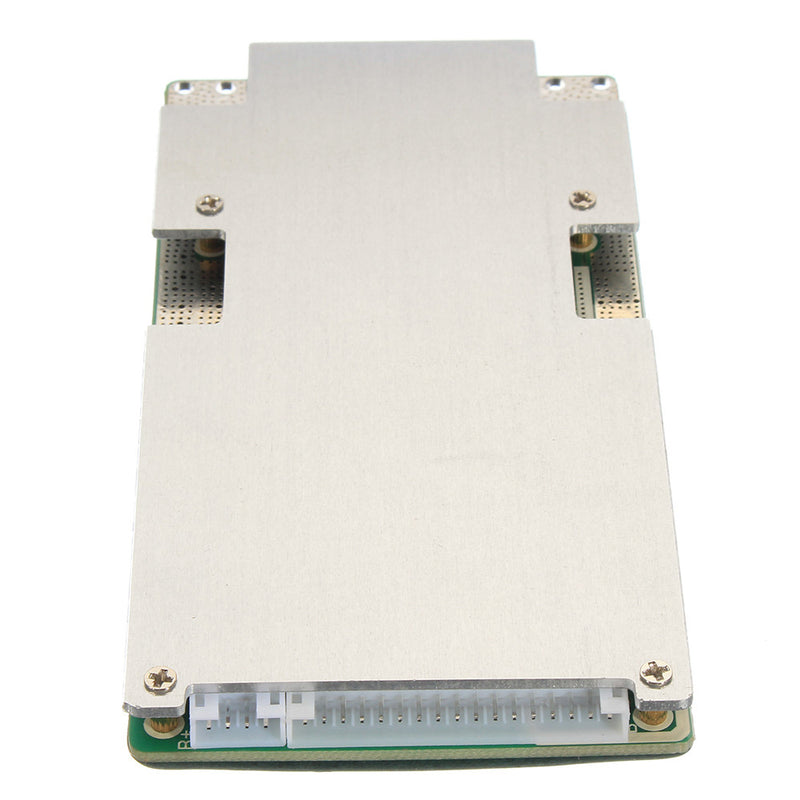

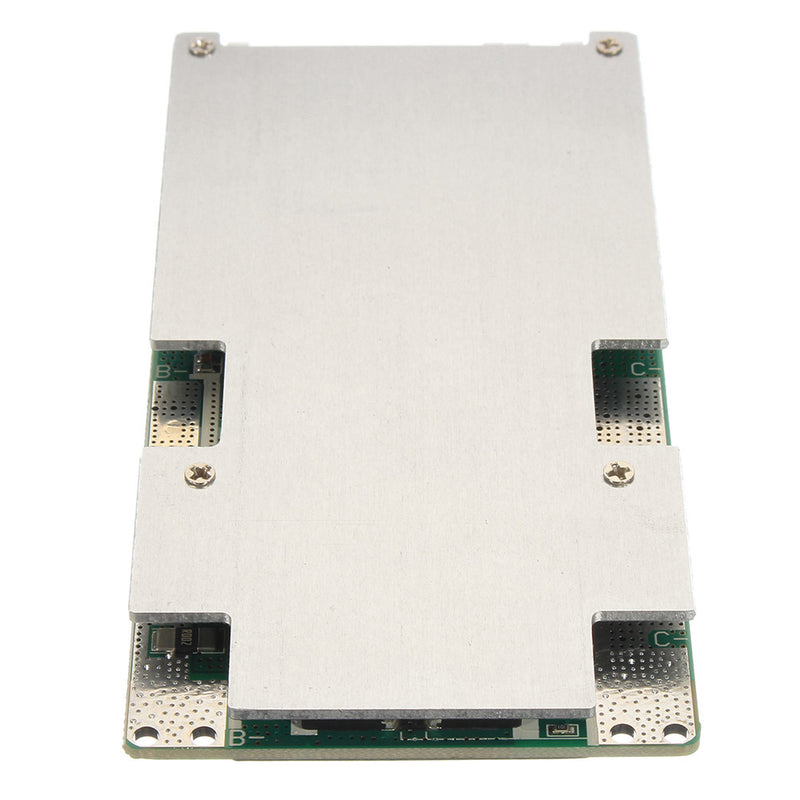

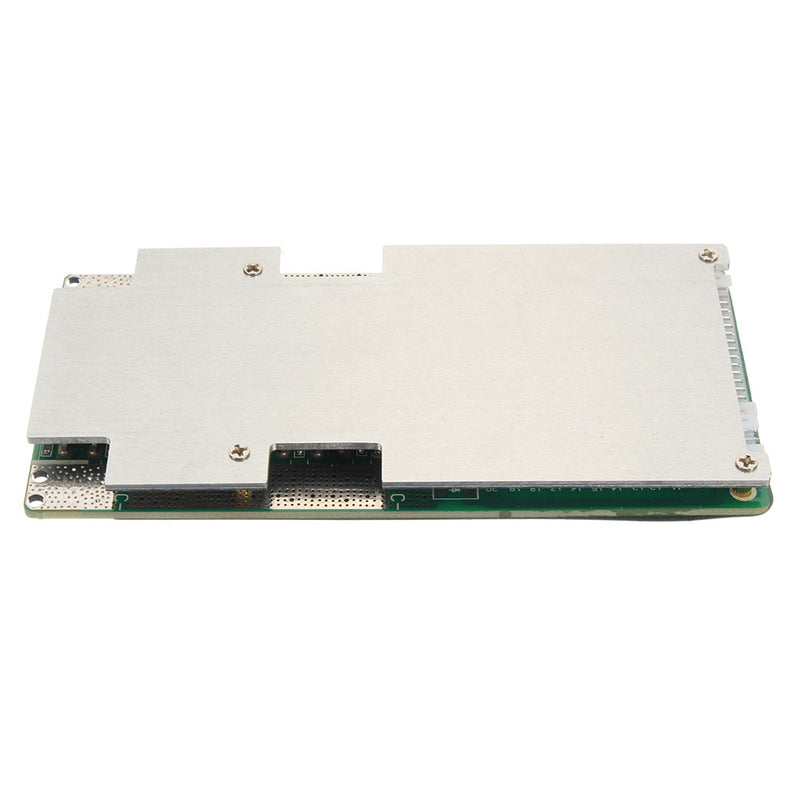

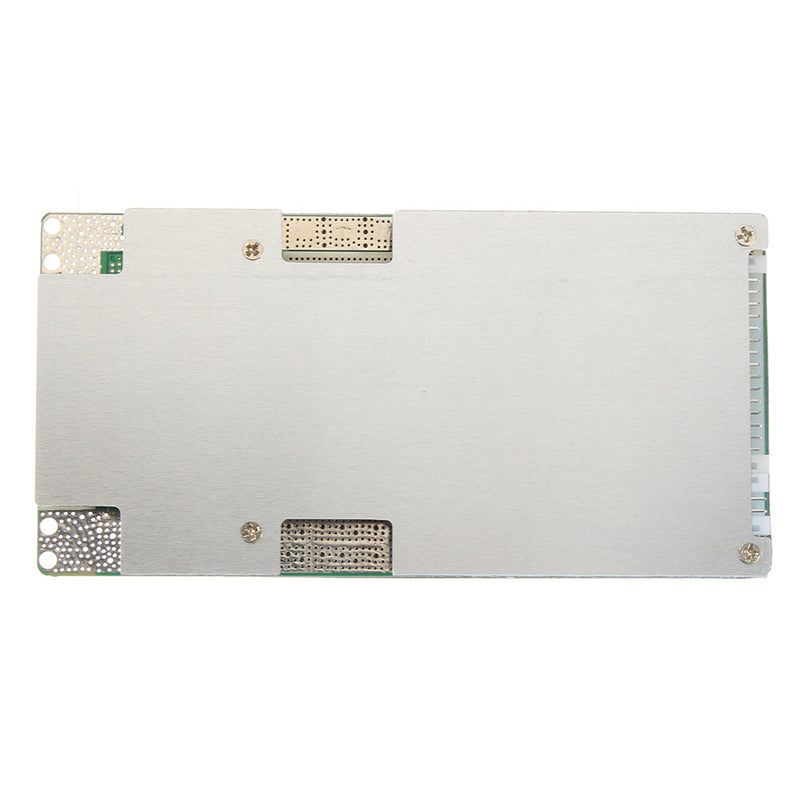

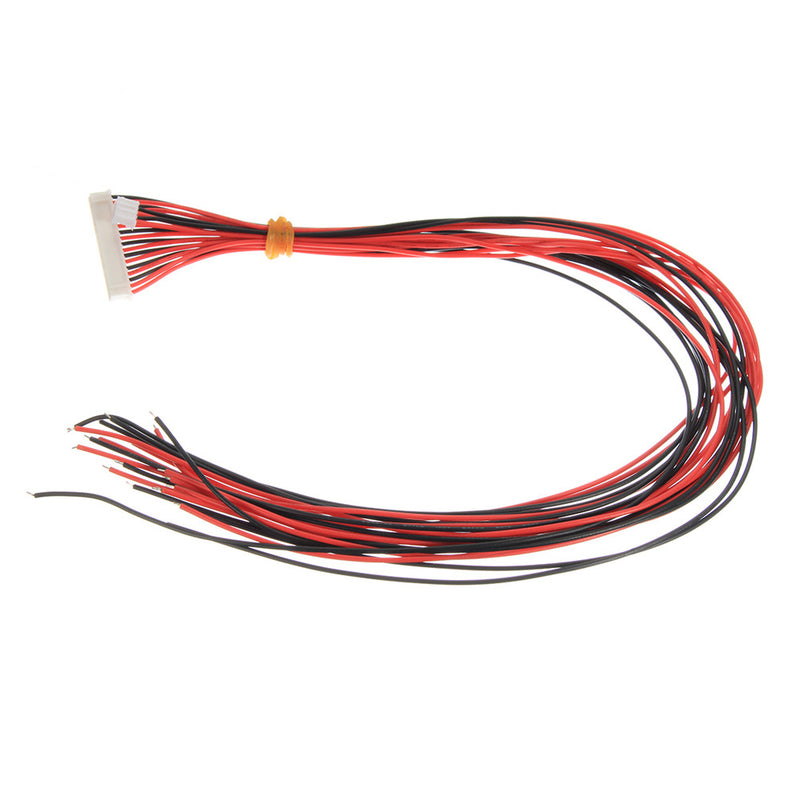

More Details:
