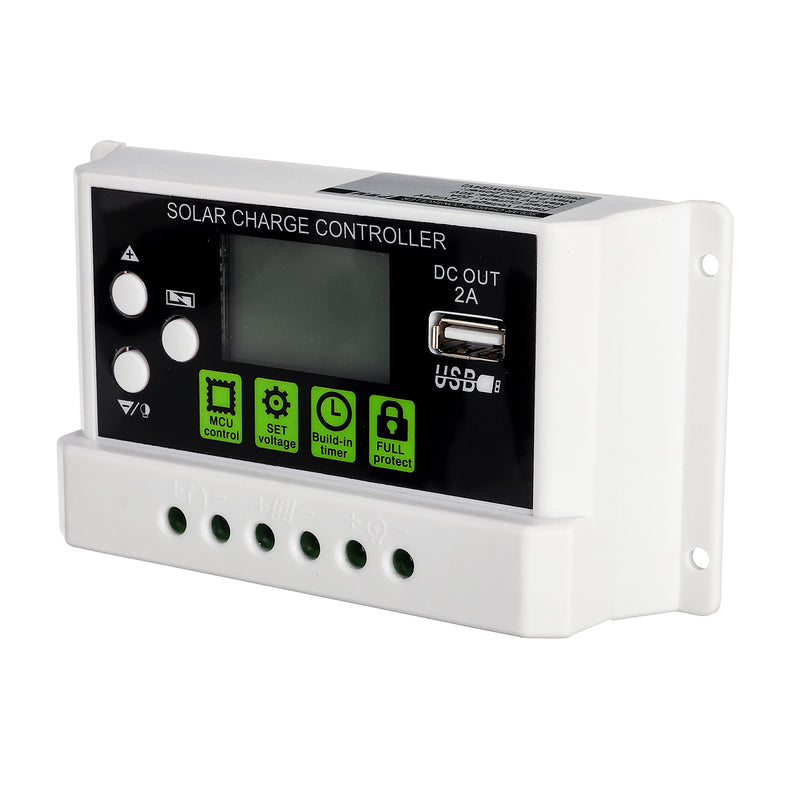

Description:
KEY Point 1: Support Both Lithium Battery & Lead Acid Battery
The default charging mode is lithium battery, you can shift it to the Lead acid battery.
KEY Point 2: Data Recording:
New-developed CPU board is equipped with data recording and storage functions.The voltage and time of each charge will be recorded automatically, which will get ready for a automatic identification of the next connection.
KEY Point 3: Extra DC 12V/24V Output
Convenient for electric device with 12V or 24V input, like fans, lights, etc..

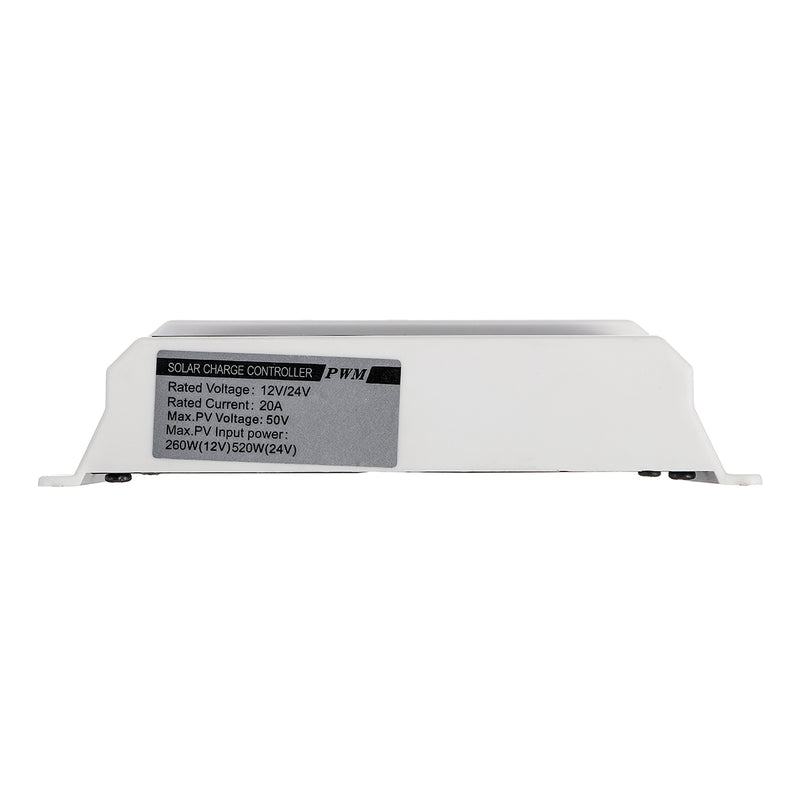

Specification:
Model: KYZ-20A
Charge-Control Mode: PWM
Rated Voltage: 12/24V Auto-Adaptive
Charge Current: 20A
Discharge Current: 10.7A
Max Solar Input: <50V
Max Solar Power: 260W(12V),520W(24V)
Standby Current: <10mA
USB Ouput: 5V/2A Max
DC Output: 12V
Operating Temperature: -35℃~60℃
Size: 133x70x35mm
Weight: 140G
Parameter For Using Lithium Battery (Double in 24V System)
Equalization (LIt): 12.8V
Float: 12.0V (defaults, Adjustable range11.5-12.8V)
Undervoltage Protection: 10.7V (defaults, Adjustable range9.0-11.0V)
Disstarge Reconnect: 11.6V (defaults, Adjustable range11.0-11.7V)
Parameter For Using Lead acid battery
Equalization (bAt): 14.4V
Float: 13.7V (defaults, Adjustable range13-15V)
Undervoltage Protection: 10.7V (defaults, Adjustable range9.0-11.5V)
Disstarge Reconnect: 12.6V (defaults ,Adjustable range11.5-13V)

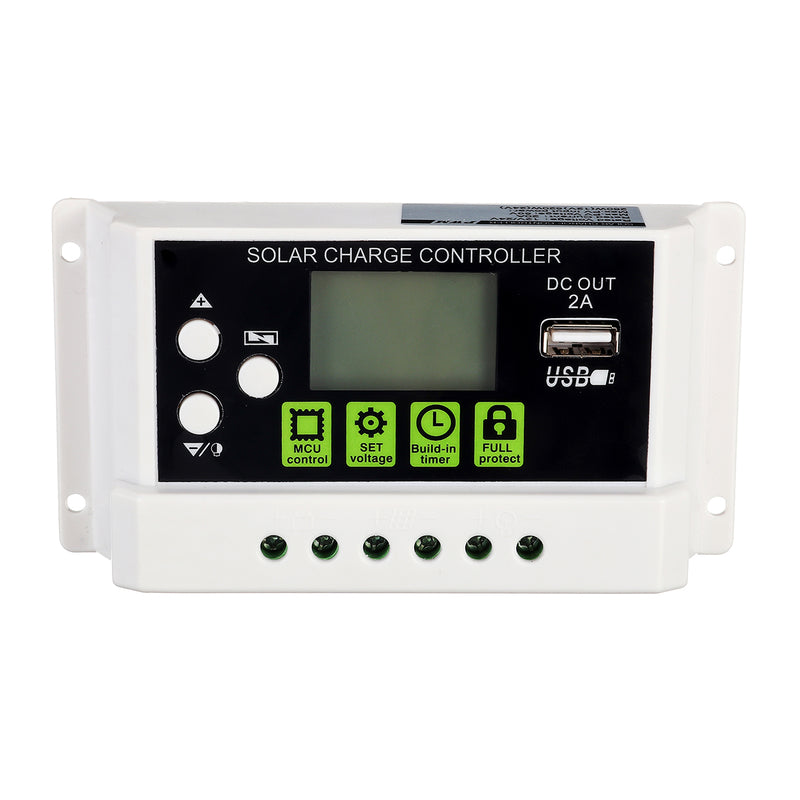

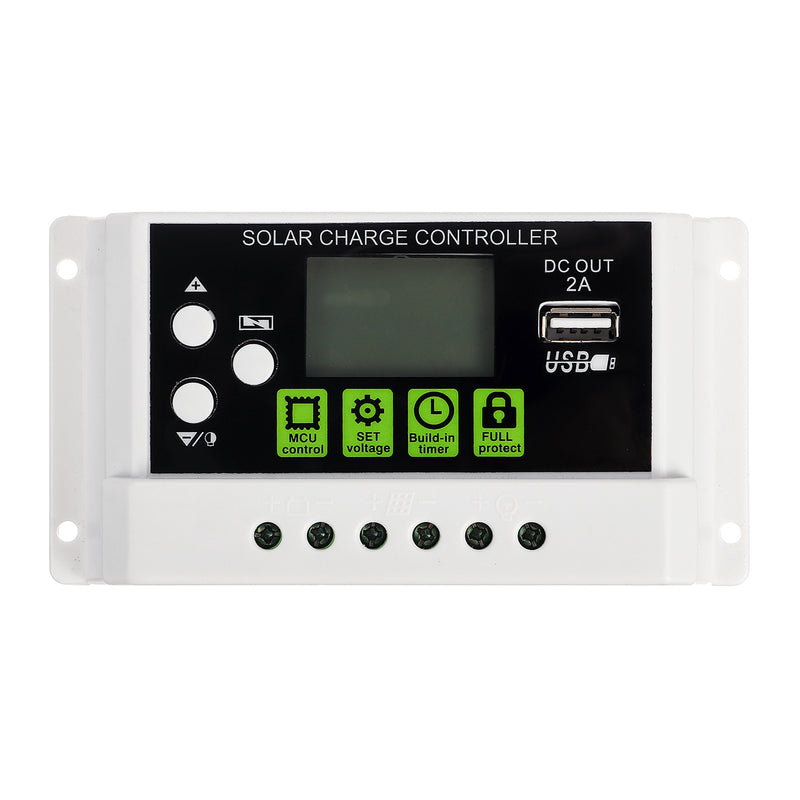

Features:
Build-in industrial micro controller.
Big LCD display,all adjustable parameter.
Fully 3-stage PWM charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Dual mosfet reverse current protection,low heat production.
Improved terminal position design, prevents the backrush of current from burning out the controller, and also protects the battery, making the charging process safer.
The screen comes with backlight which will light up when you click any of the buttons, making it easier to operate at night or in low-light locations.

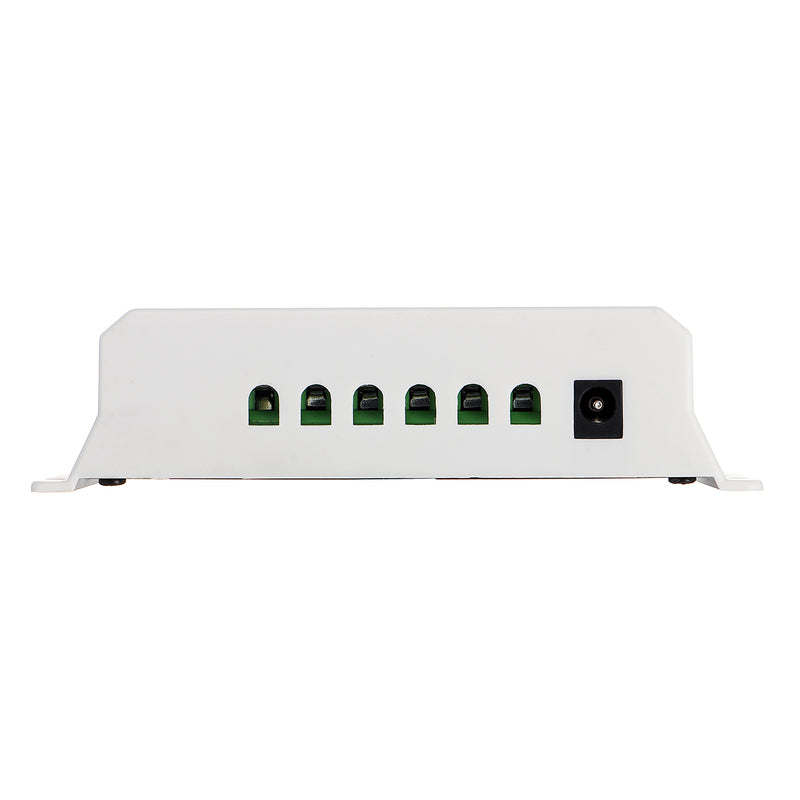

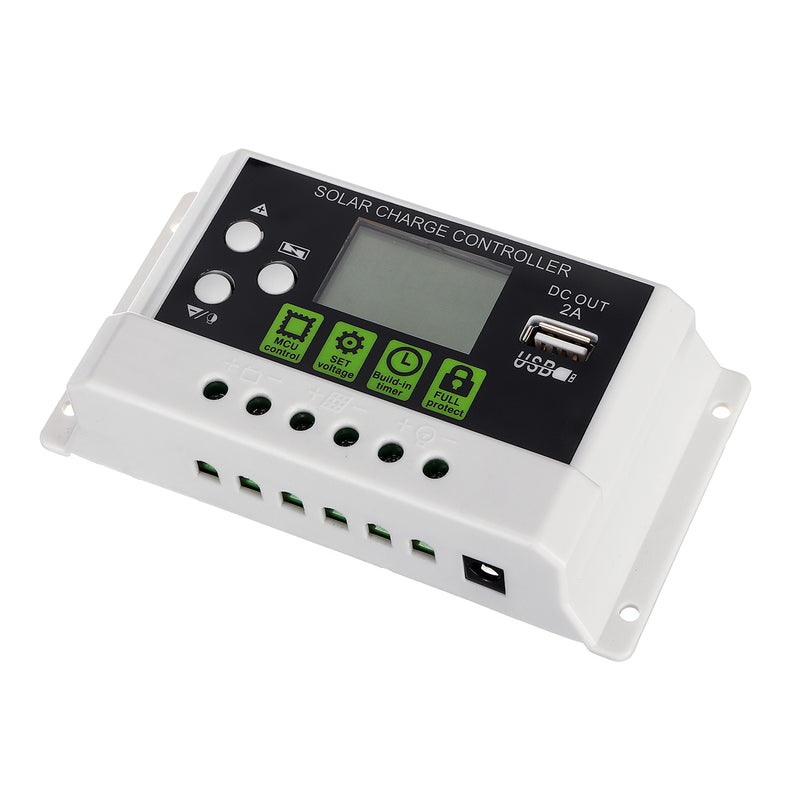

Connection Steps (VERY INPORTANT):
1.Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.
NOTICE:
1.Please connect each unit according to the steps above strictly.
2.Make sure the battery have enough voltage for a right battery type identifying.
3.Parameter for using lithium battery will be double when in 24V system.
4.Only for photovoltaic panel use.

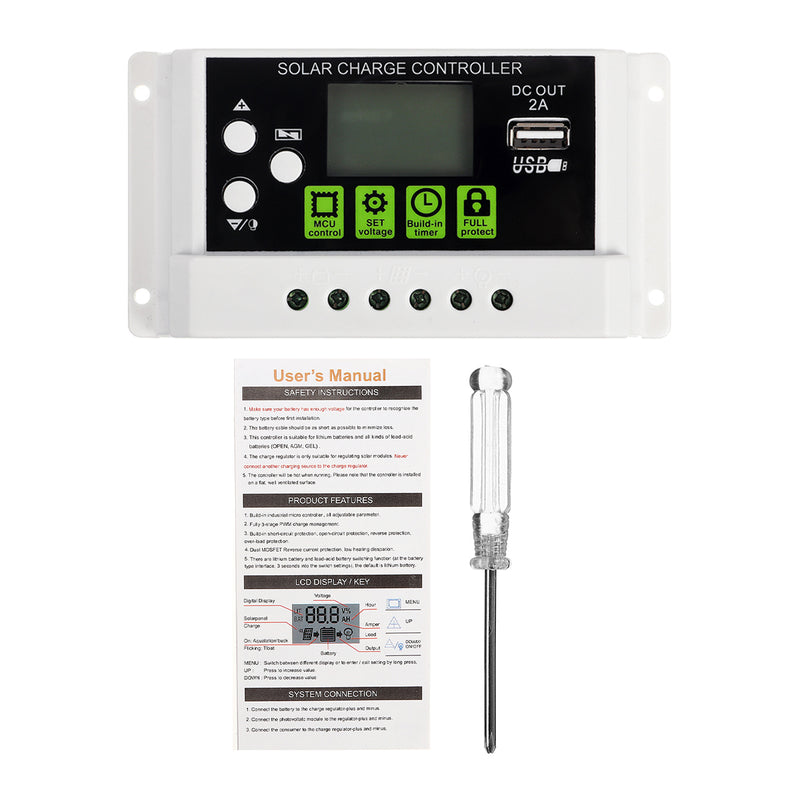

Package Included:
1x 30A PWM Solar Charge Controller

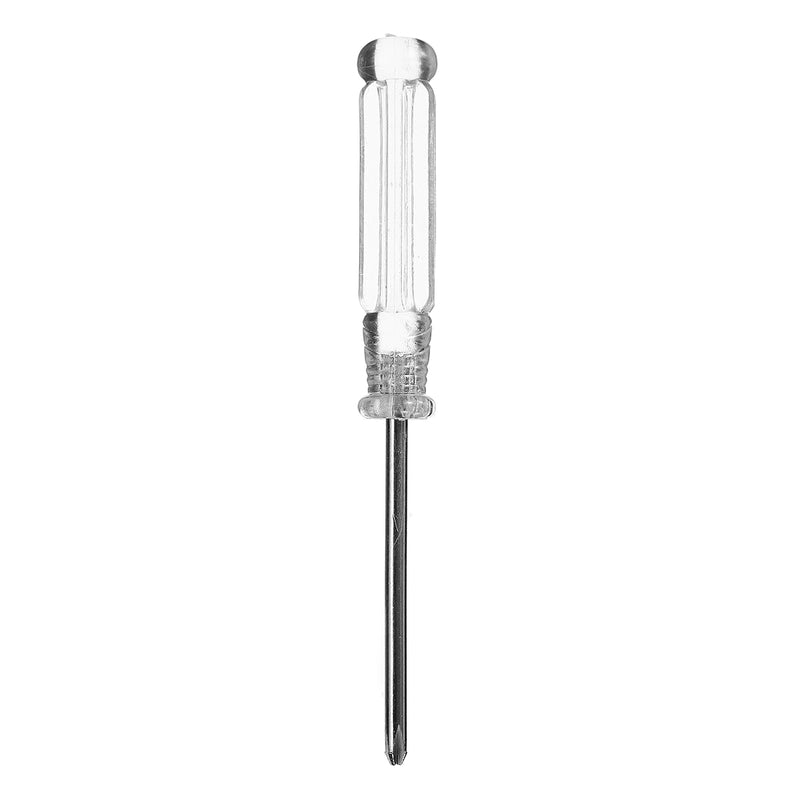

1x Screwdriver
1x Manual (in English & Chinese)
