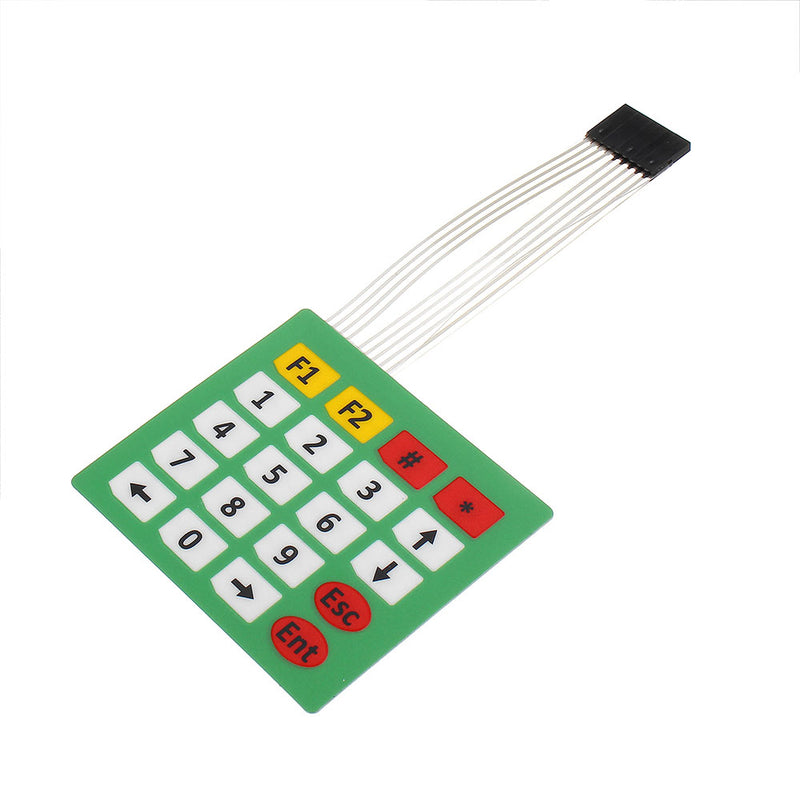

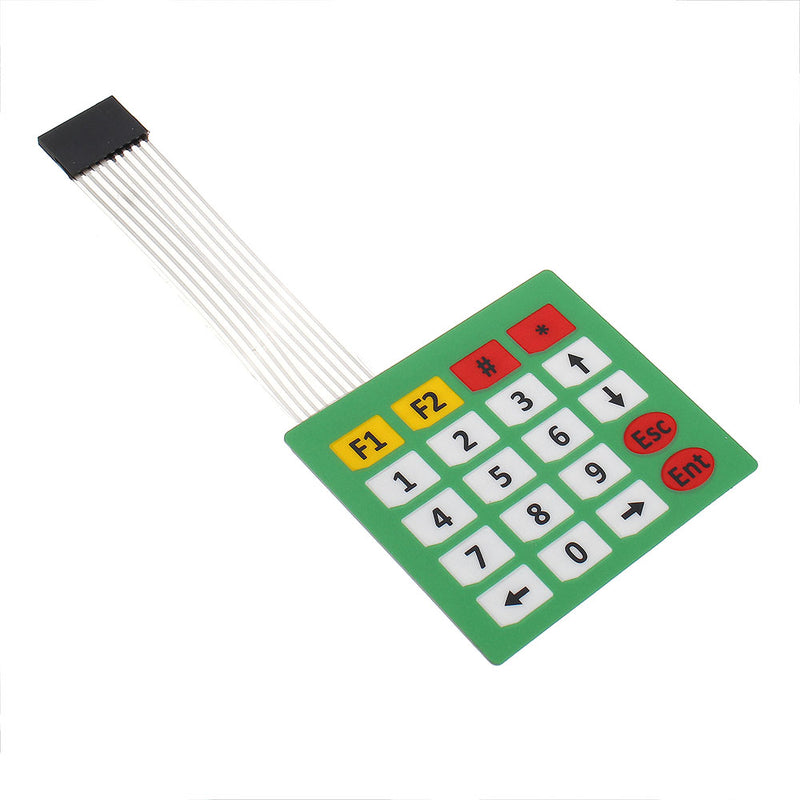

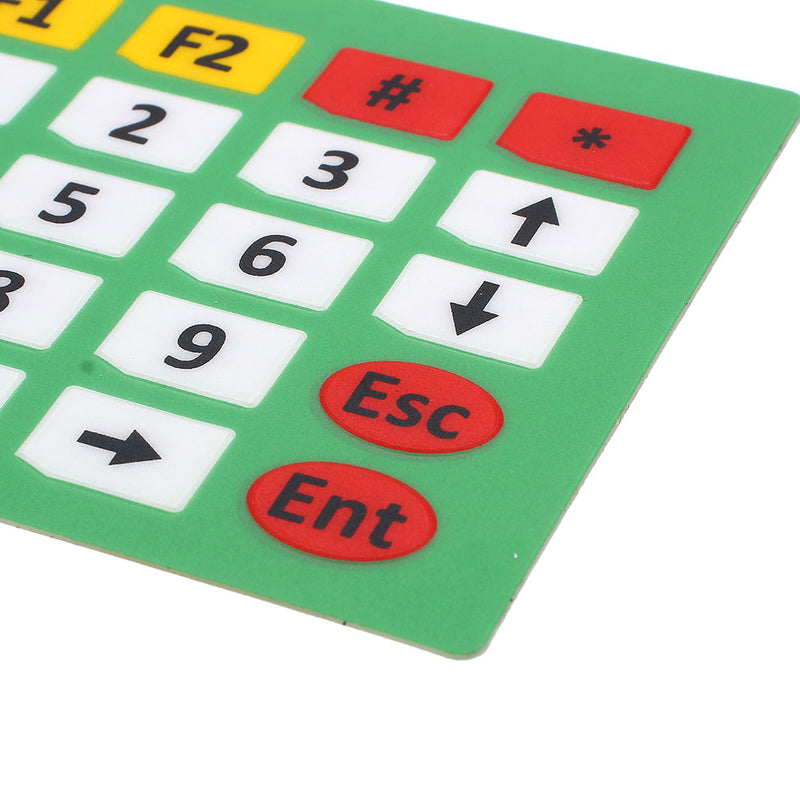

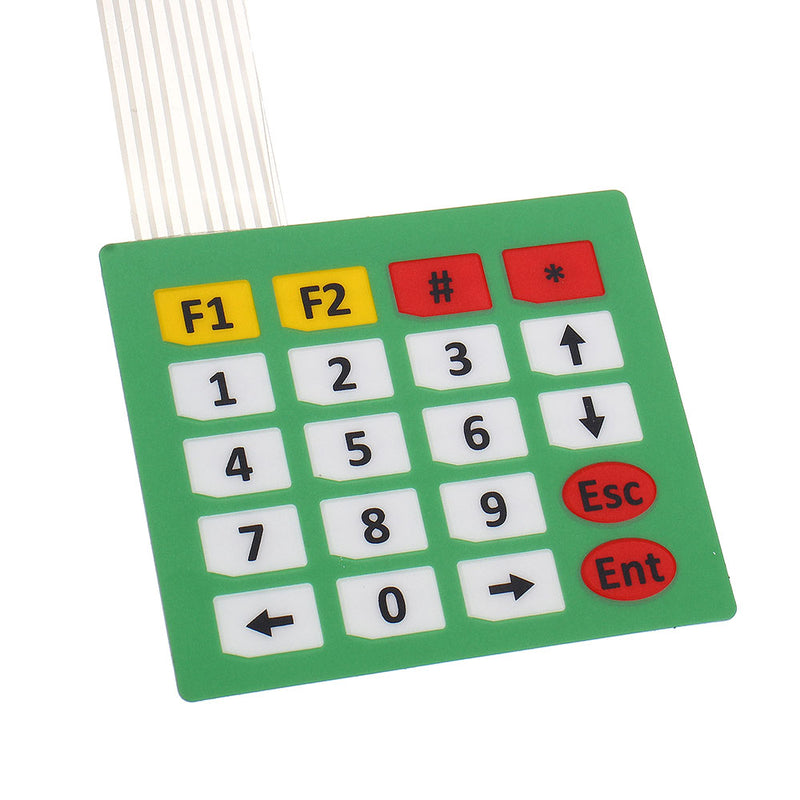

20pcs 4x5 20 Button Display Membrane Switch Matrix Keyboard Button Control Panel with Light

20pcs 4x5 20 Button Display Membrane Switch Matrix Keyboard Button Control Panel with Light

Name: 20pcs 4x5 20 Button Display Membrane Switch Matrix Keyboard Button Control Panel with Light
Brand: Banggood
SKU: U2I-BG-1619080
Price: 5,868.00 INR
Availability: InStock

SKU: U2I-BG-1619080

Share this product

Feature:

Circuit level	35V DC, 100mA, 1W
Standard square resistance	<=50mQ/mil
Contact resistance	10-500Q (with lead length and material variation)
Insulation resistance	100MΩ 100V
Dielectric withstand voltage	250VRms (50-60Hz 1min)
Contact jitter time	<=5ms
Operating pressure	Metal shrapnel type 220-350g
Switching stroke	Metal dome type 0.6-0.8mm
Storage temperature	70%-90%
Storage humidity	-0°C~+60°C16H
Test humidity	70%-90%
vibration	20G's msx. (10-200HZ, MIL-202, M204, Condition B)
Line thickness	<=0.13mm

Package includes:

20 x 4x5 20 Button Display Membrane Switch
