Feature:
Input voltage: 7V ~ 28V
The output voltage: 5V (accuracy 1%)
Output current: 3A (maximum), long working current of about 1.5A
Conversion efficiency: 96% (highest)
Output ripple: <30mV
Switching frequency: 1.5MHz (highest), typical 1MHz
Operating temperature: -45 °C to + 85 °C

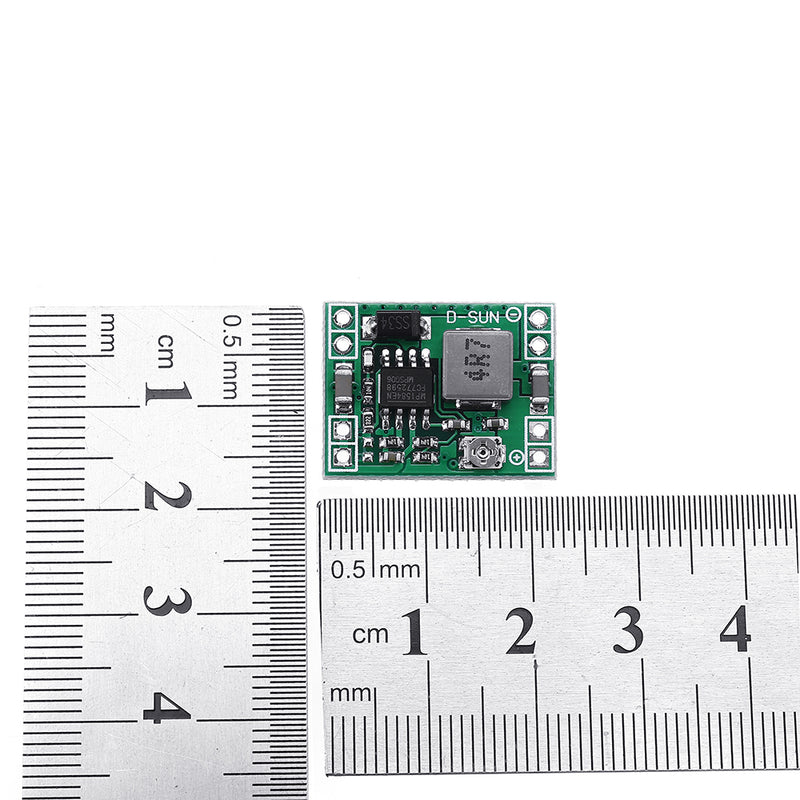

Size: 22 x 17 x 4mm (L x W x H)
Application:
DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
Package included:

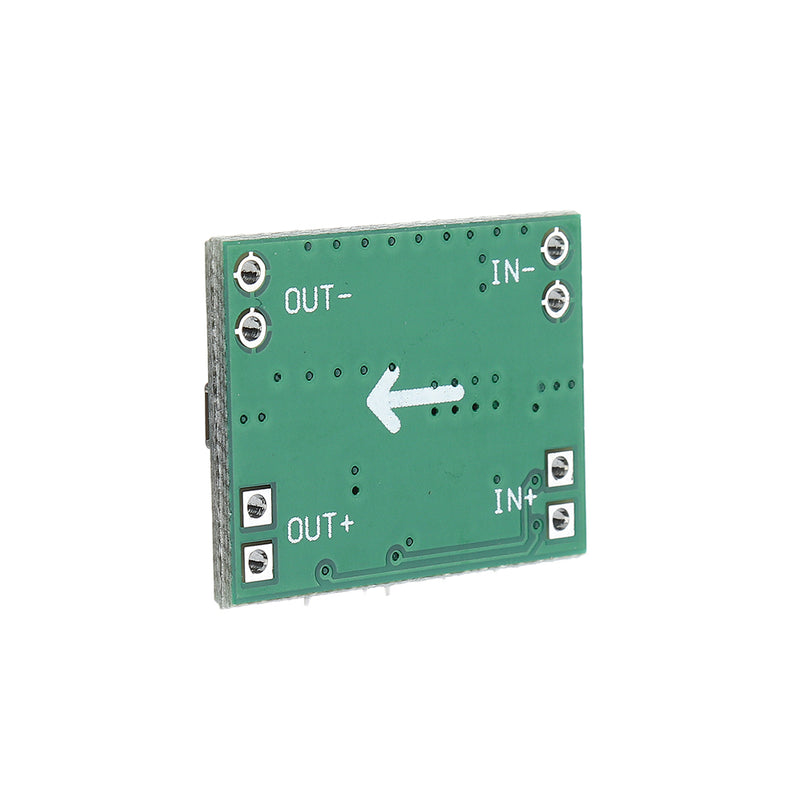

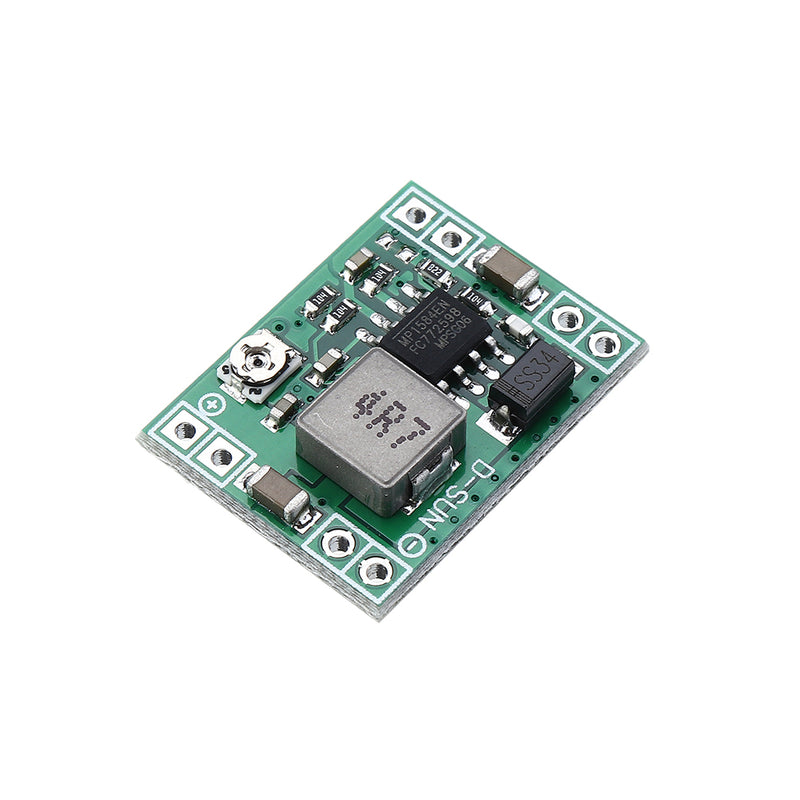

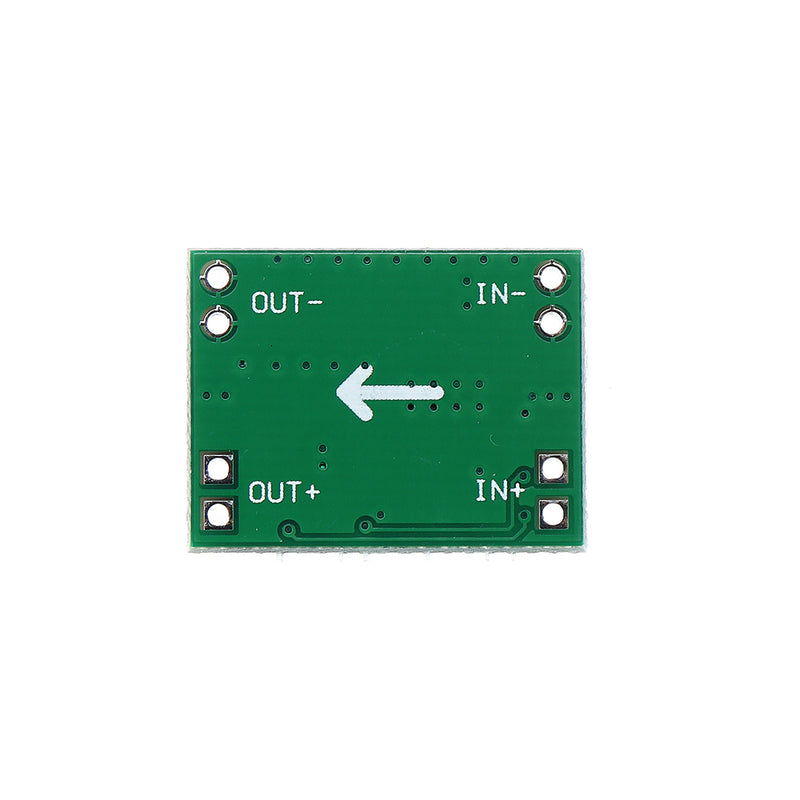

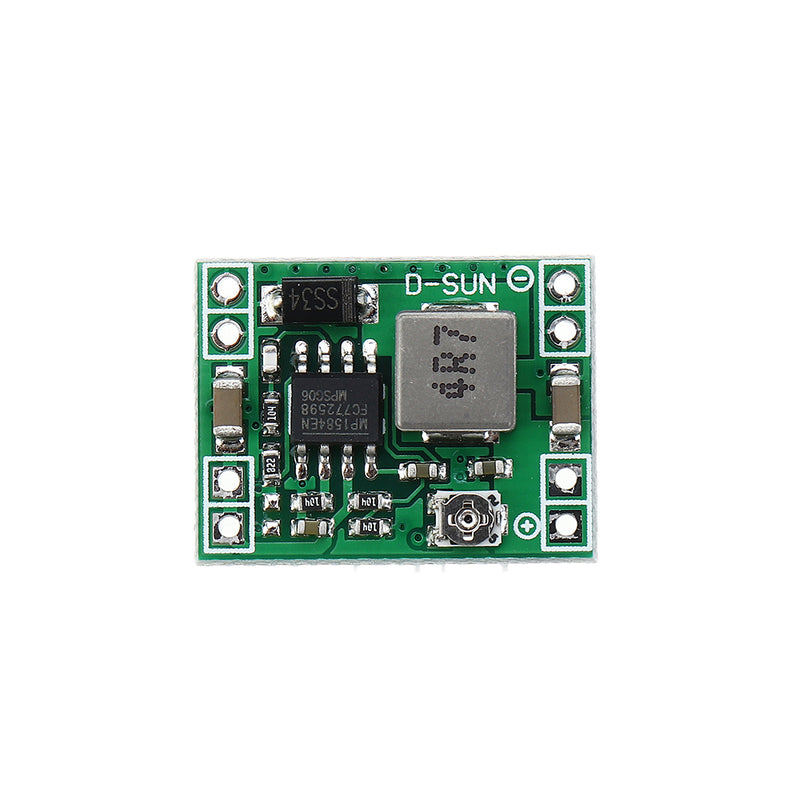

20 x Mini Step Down Module
