Features:
Size: 50 x 33 x 10mm
LCD 12V 5V +3.3 V voltage conversion board 5V, 3.3V power board BenQ power supply board commonly used
For a variety of brands of LCD monitors and a variety of weak in line with this power supply equipment

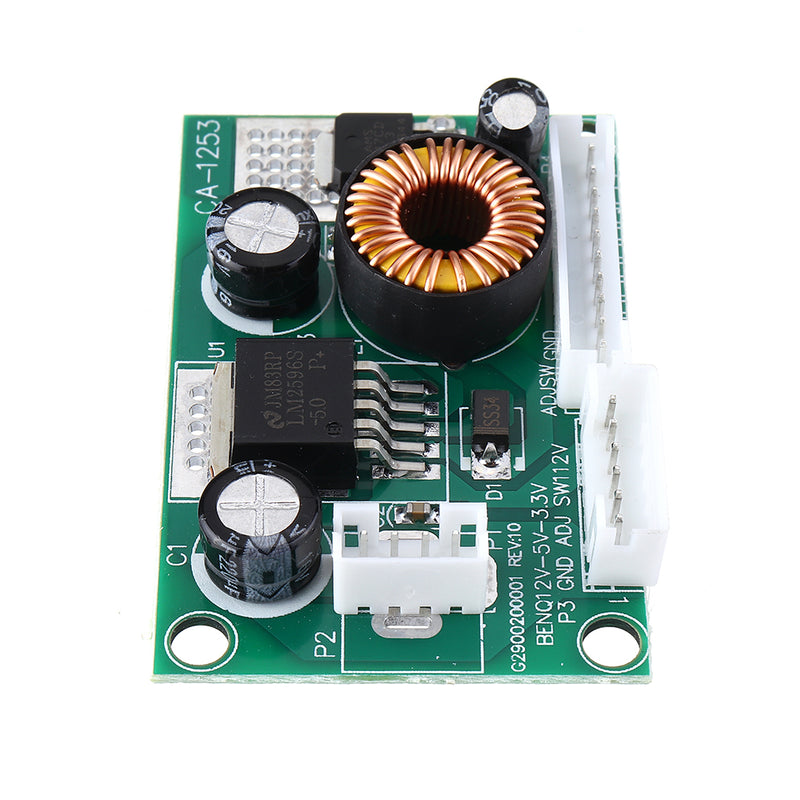

(12V-5V-3.3V) DC to DC circuit board 12VDC to 5V to 3.3V power supply board, 12V 5V 3.3V power supply board, with this board to pick high-pressure strip test tube is very convenient.

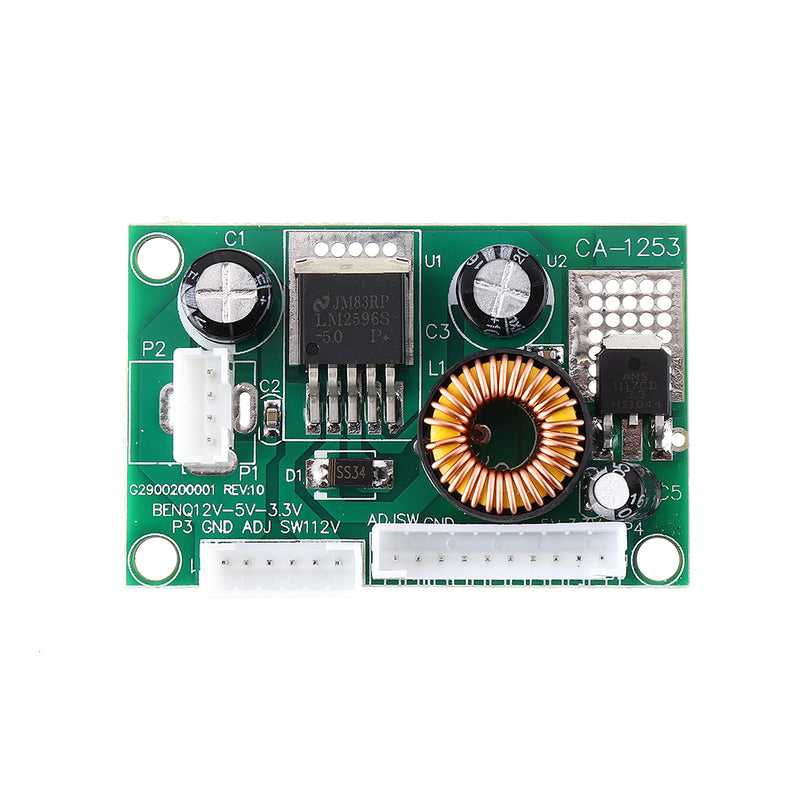

The three interface definition:
P2 is the 12V input interface: 12V 12V GND GND
P3 is the output interface: GND GND ADJ SW 12V 12V
P4 is the output interface: ADJ SW GND GND GND GND 5V 5V 3.3V 3.3V
Package includes:
20 x Step Down Module
