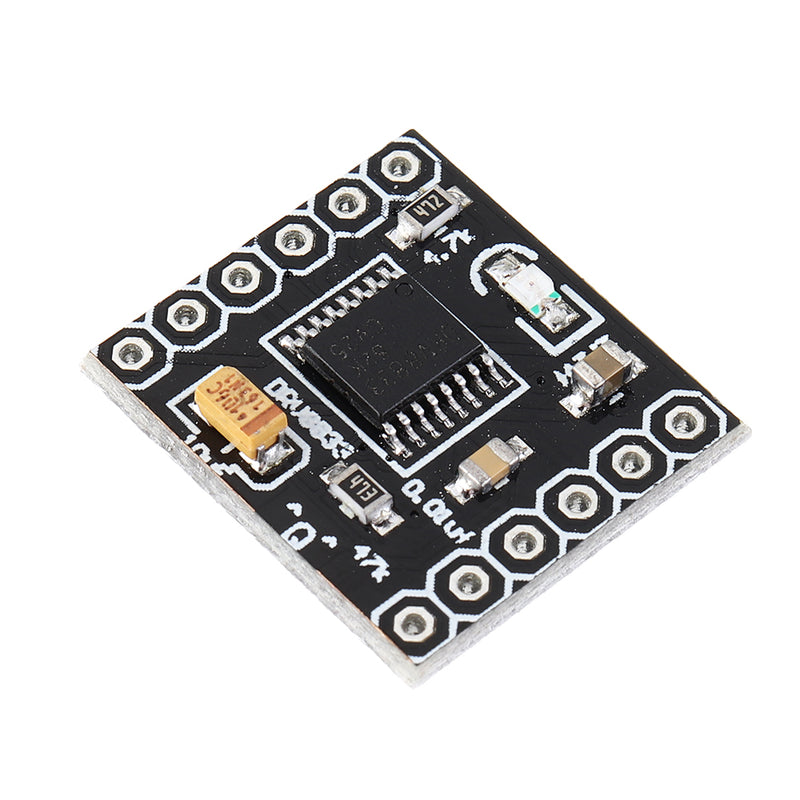

Parameters:

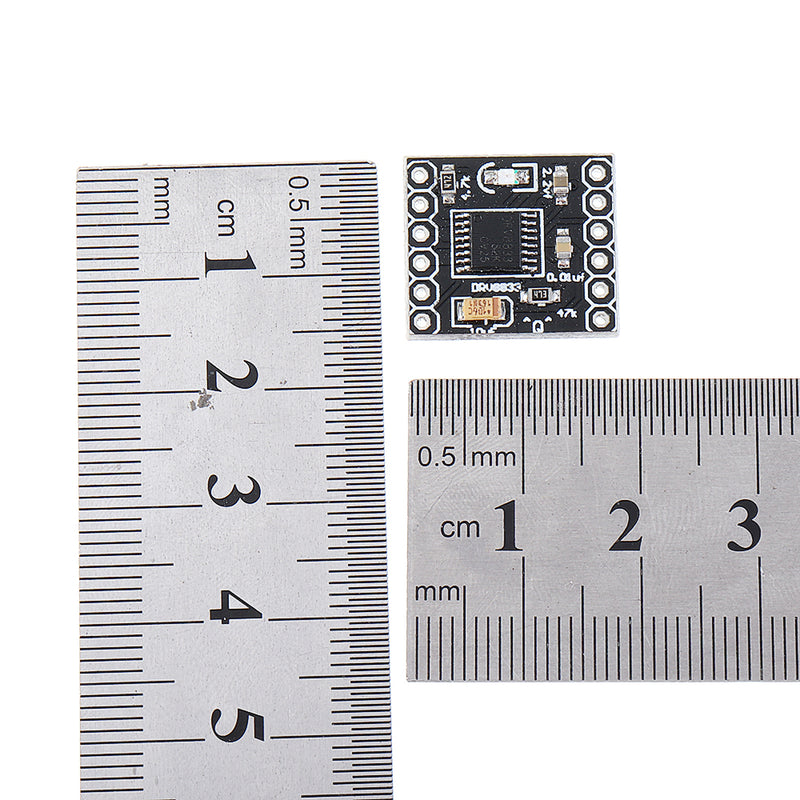

Size: 18.5 x 16 mm
Input voltage: 3-10V
Single H bridge output current: 1.5A, can drive 2 deceleration motors.
Built-in overcurrent protection, short circuit protection, undervoltage latching and overheating protection. Sleep mode with low power consumption.
Purpose: drive motor and 4-wire stepping motor up to 1.5A.
Instructions:
ULT low level is in sleep mode (need to disconnect J2 short welding spot behind the module)

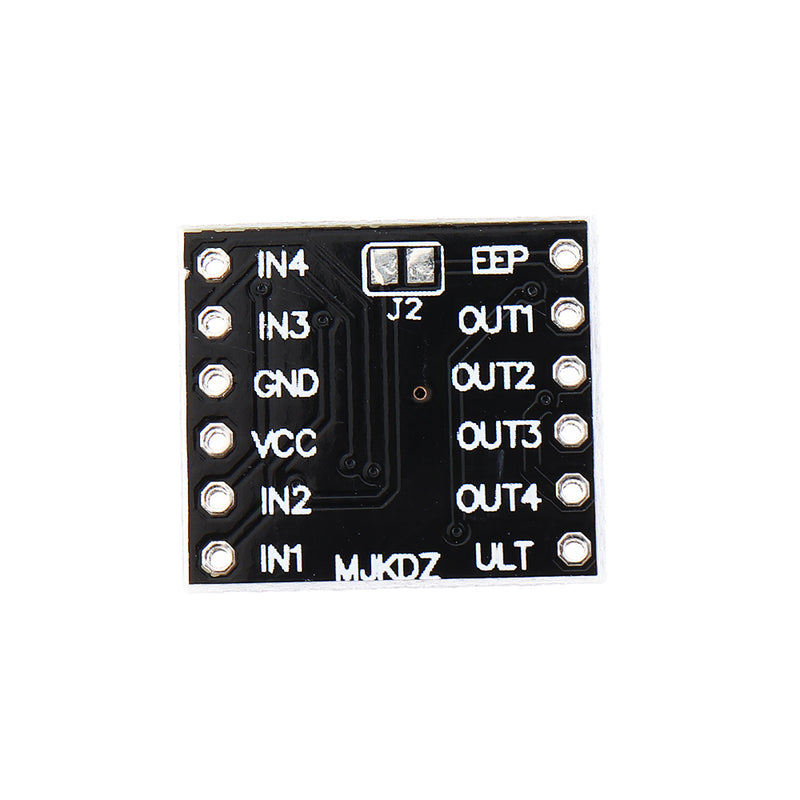

OUT1, 0UT2 is 1 H bridge, corresponding control is IN1, IN2.
OUT3, 0UT4 is the second H bridge, corresponding control is IN3, IN4.
EEP to protect the output, the default is not.
VCC for voltage input 3 to 10V.
GND grounded.
Package includes:
20 x Motor Driver Board
