Description:
Diameter: 16mm
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 BEAT / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Main technical characteristics:
Rated voltage: 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged
Package included:

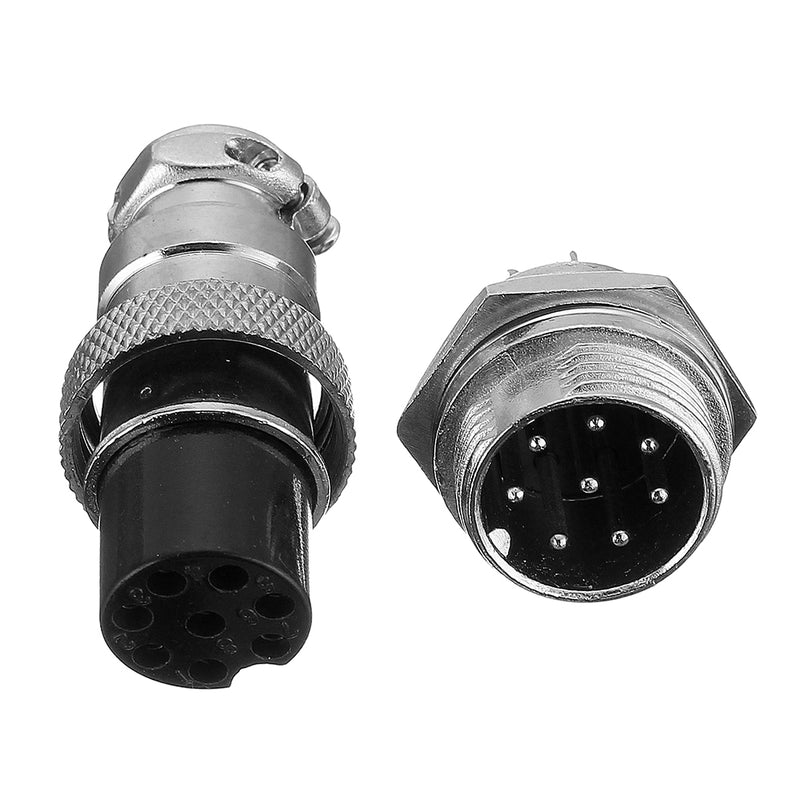

20 Set GX16-8 Pin Aviation Connector Socket Plug
