Description:
Input: DC 3.3-5V(25W)
Output : DC 5V/4A(default), 9V/2A, 12V/1.5A (QC2.0/QC3.0)
Quiescent current: about 1MA
Efficiency: <=95%
FP6601Q QC2.0/QC3.0/FCP Quick Fast Charging IC
Switching Frequency : 600KHz fixed
Overtemperature shutdown, input under-voltage protection and short circuit protection.
UVLO Low Threshold 2.6V, UVLO High Threshold 3.2V, suitable for 3.7V/3.8V/3.85V lithium battery power supply
Operating Ambient Temperature: -40 to 85 °C
Storage Temperature: -55 to 150°C
Size : 45*20*15mm
Weight: 10g
Attention:
This is a high-power boost QC2.0/QC3.0/FCP Fast Charging module. Please pay attention to the following when using:
1. The power supply must be sufficient. Can at least 30W output power.
2. The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3. When charging quickly, the module generates a lot of heat. Please pay attention to ventilation and heat dissipation.It is recommended to add heat sink or fan to dissipate heat.
Applications:
QC2.0 QC3.0 FCP Fast Charging
Wall-Adapter, Smart Phones, Tablets, Notebooks
Mobile / Tablet Power Bank
Car Charger
LI-ION Li-Po Polymer lithium battery Charger
USB Power Output Ports
PTZ CCTV IP camera
Smart home/home automation
WIFI Router Switch Network equipment
Package includes:

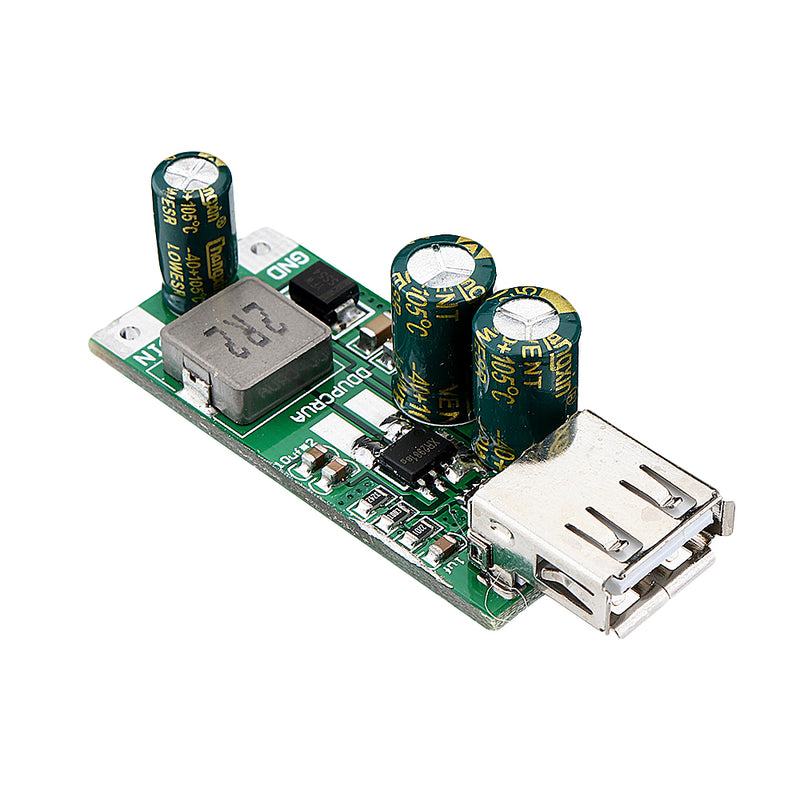

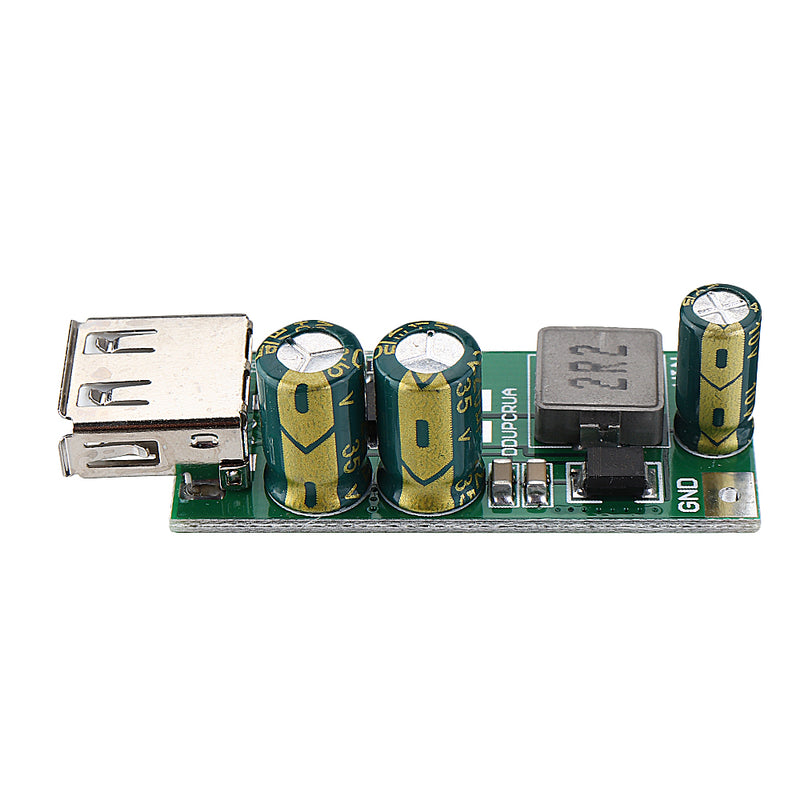

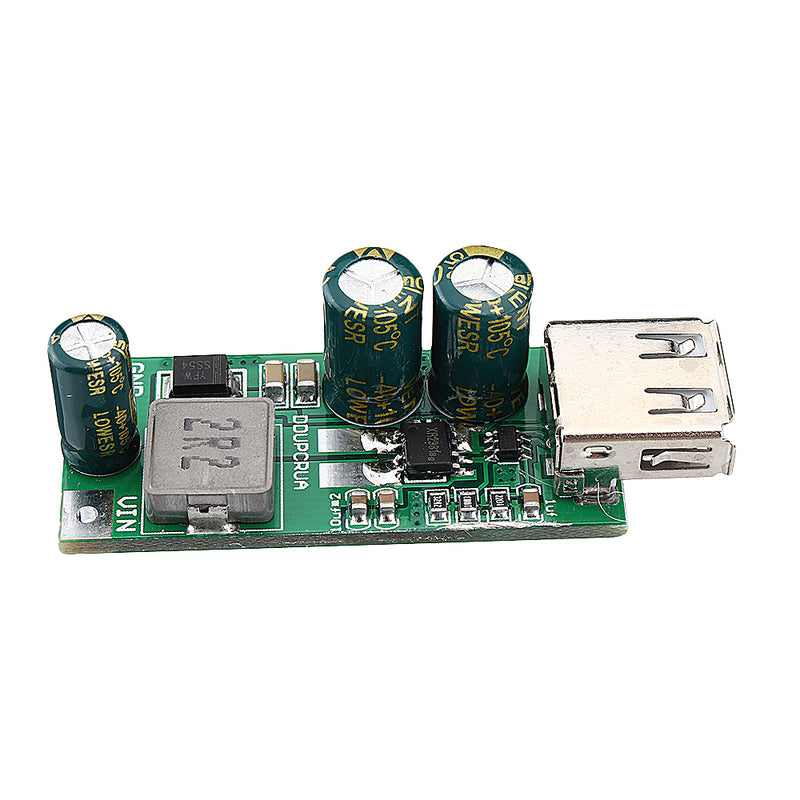

1 x DDUPCRUA Boost QC3.0 2.0 FCP Fast Quick Charger Module
