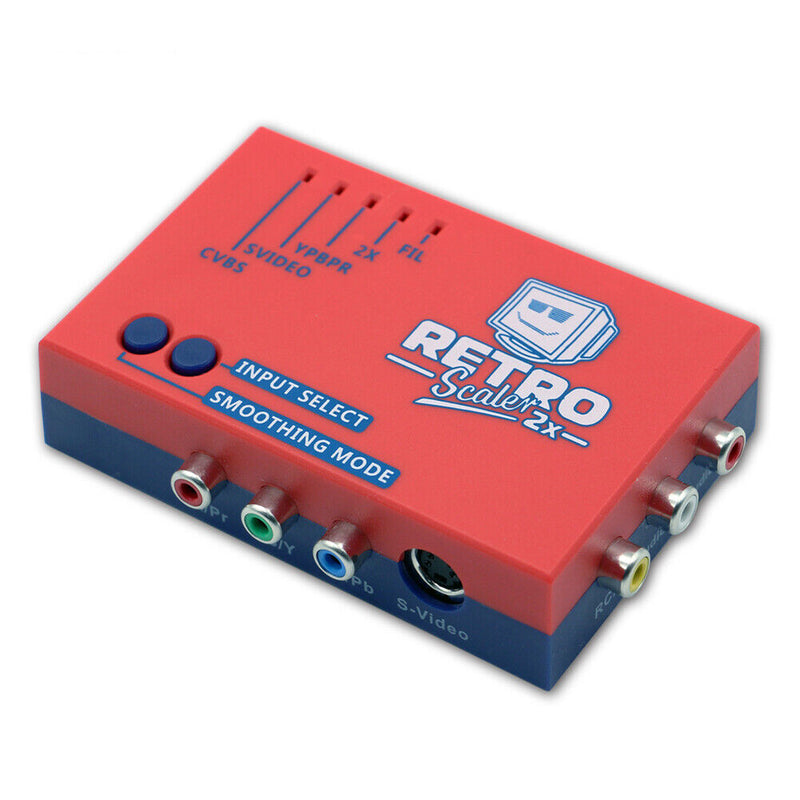

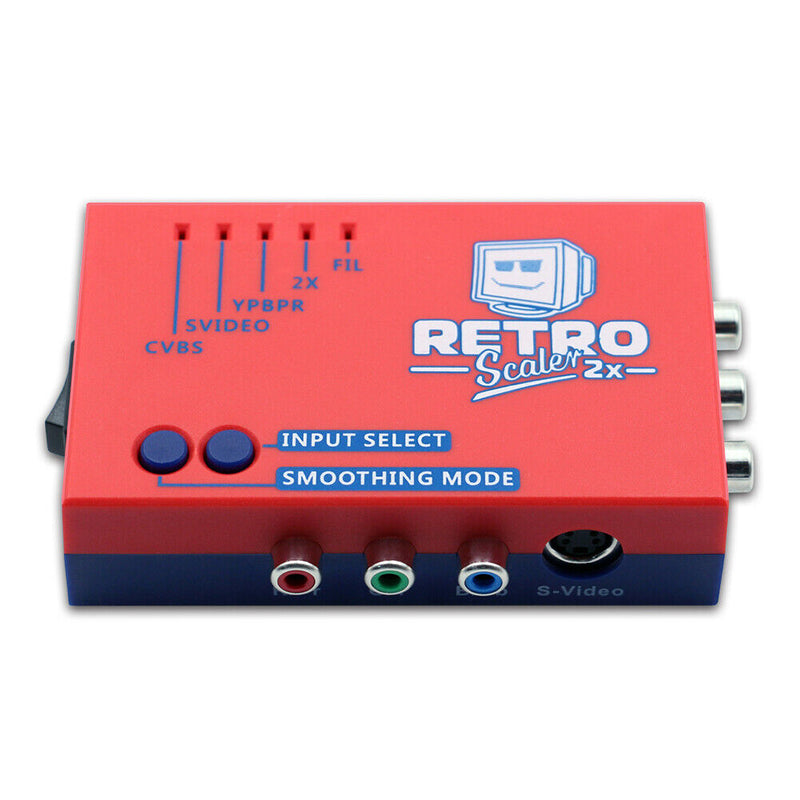

Item Name: #A 2x HD Converter Zero Lag Device Compatible with Vic20 Atari2600 Msx Nes N64. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Feature:
1. Signals / Resolutions: The HD converter can accept 240p/480i/288p/576i NTSC/PAL sources to converter to 480p/576p HDMI-compatible output (480p for NTSC, 576p for PAL). For example 240p signals are supported properly, allowing for a completely progressive linedouble to 480p. 480i signals are deinterlaced and doubled also to 480p. Keep in mind that the output resolution of this device only up to 480p/576p.

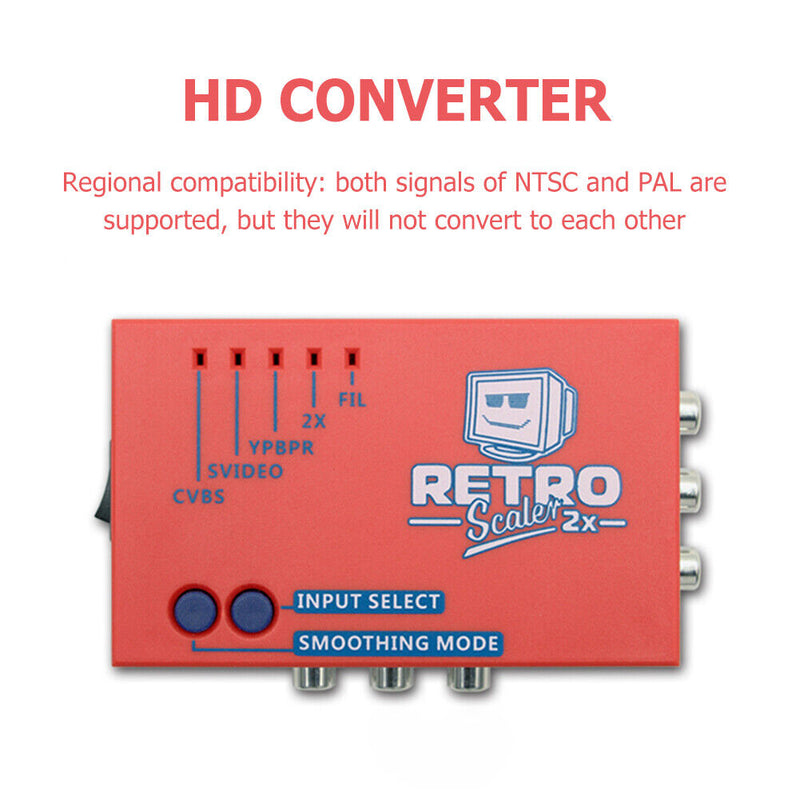

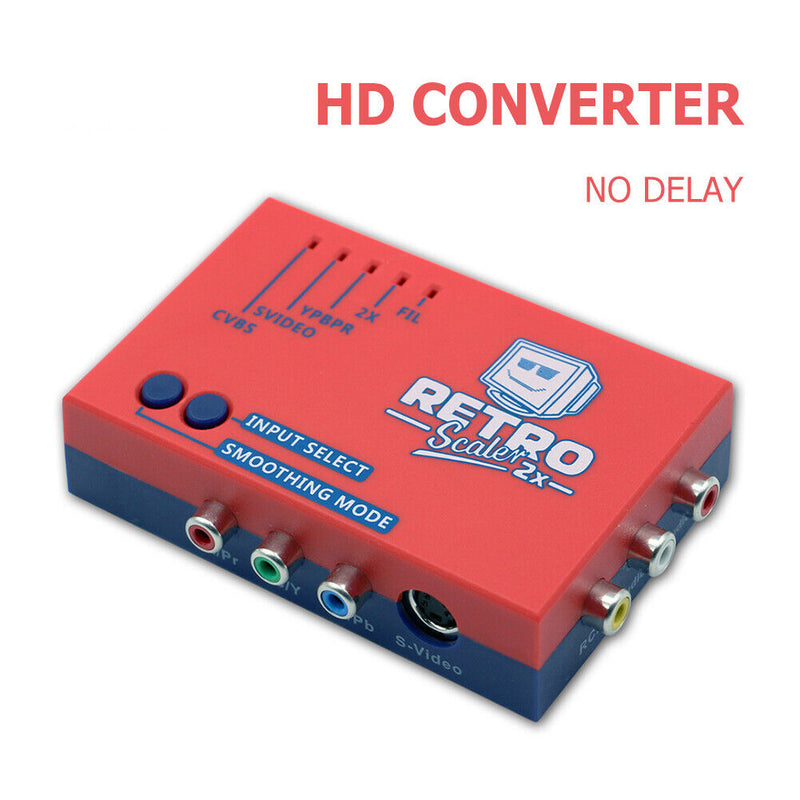

2. Zero Lag & Region Compatibility: This HD converter is a zero lag device, proven using multiple measurements and different devices. Both NTSC and PAL signals are supported, but they are not converted to each other. That means you can plug in whatever signal your target device is compatible with, but NTSC might not work on PAL HDMI-compatible devices and vice versa.
3. Filter Modes & Compatibility: The "FIL" mode is completely preference-based, but the average retro-gamer prefers the FIL mode off for 2D games (SNES, Genesis, etc) and on for 3D games (N64, Saturn, etc). Also, the FIL mode might help reduce flicker with some 480i-only games. Another great feature of the this HD converter is that it outputs a true 480p60 signal, making it compatible with every device I tested it with! Compatibility is a big issue for retro-gamers, as modern displays are not used to the resolution or refresh rate of these older consoles. This device is an excellent help for streamers who want the highest chance of compatibility.
4. Audio Performance: Audio performance on the HD Converter is good although we would have to stop short of saying it was perfect. In general uses there are no issues with the audio digitization but on brassiere sounds like explosions the output may sound a little rougher than it did through the OSSC. This is not something you are likely to even notice on a TVs speakers, though you might if you have an external amp or home theatre system. In that case of course, it is usually perfectly easy to route audio around the converter anyway.

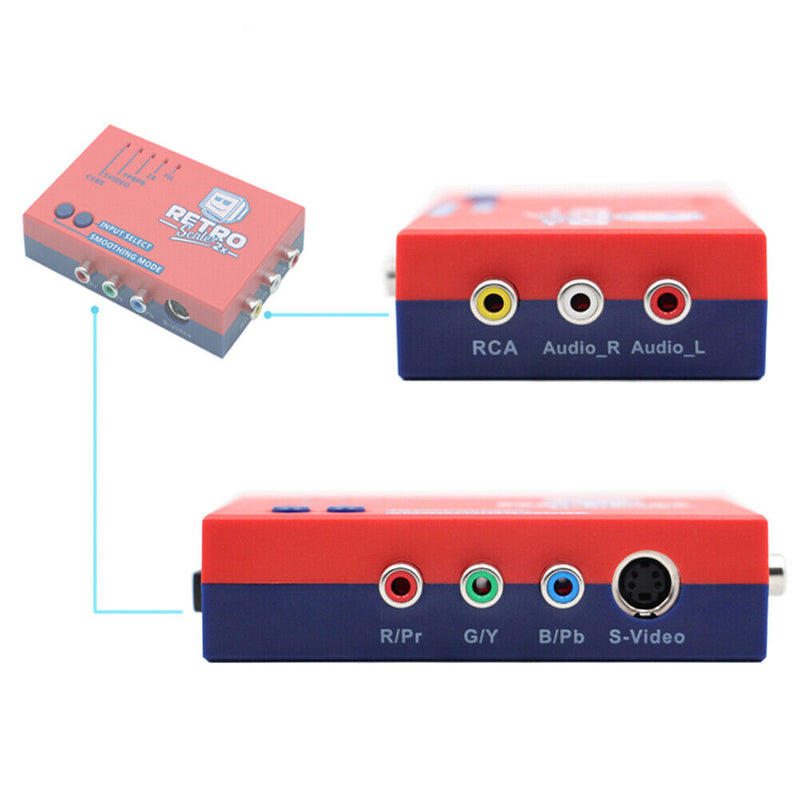

5. Pass-through: By putting the HD converter into pass-through mode, incoming composite, s-video or component signals are simply transparent and digitized into HDMI-compatible. Support for 240p is rare in the world of HDMI-compatible, but by adding a simple HDMI-compatible to VGA converter, you can convert the signal back to the analogue domain again. This makes the unit a perfect transcoder to go with 15 kHz displays like PVMs, or of course, the OSSC.Specification:

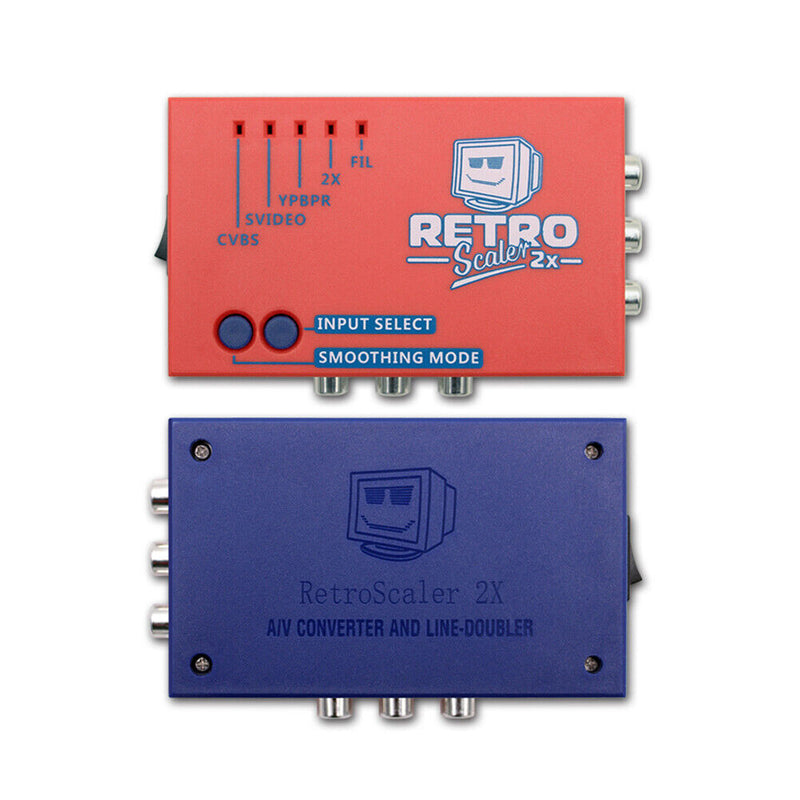

Name: A/V to HDMI-compatible Converter and Line-doubler
Color: red, blue (optional)
Product size: about 115x75x28mm/4.53x2.95x1.10inch
Compatible with the following hosts:
for Vic20
forAtari2600
for Msx
for NES
for N64
for NGC
for SFC
for SNES
for SuperFamicom
for PIAYSATION2
for SEGA Saturn
for MD2
for MD1
for Dreamcast
for Commodore64 (C64)
Note: This HD converter does not support all PAL-M and consoles in Brazil.
