Item Name: #A 3600/4500/5200KV 3650 Brushless Motor with 60A ESC for 1/8 1/10 Scx10 Hpi RC. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

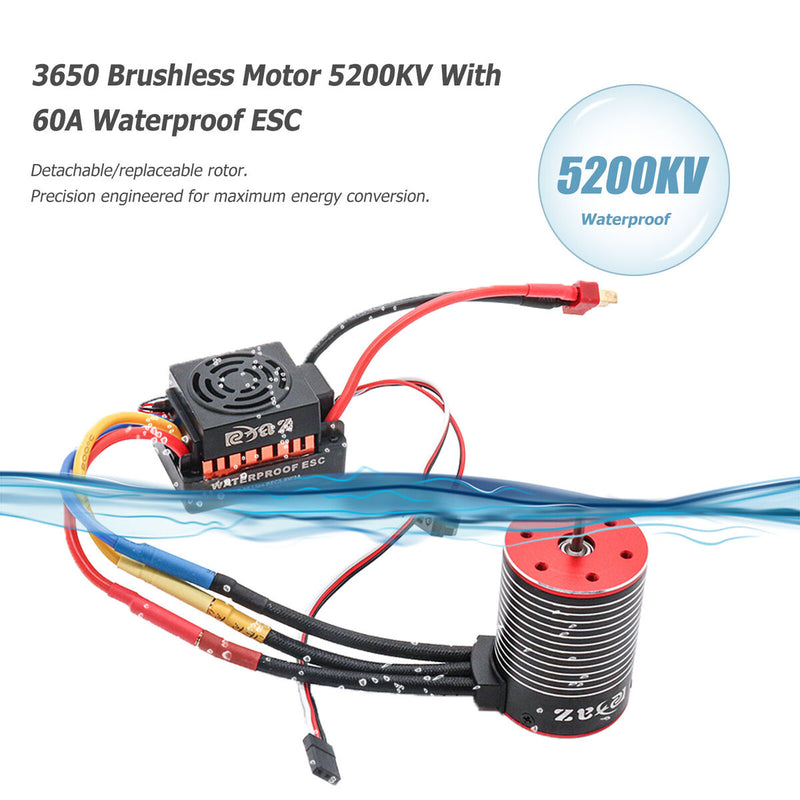

3650 Waterproof Brushless Motor 3600/4500/5200KV with Waterproof 60A ESC Electronic Speed Control for 1/8 1/10 RC Off-road Crawler Car Compatible with Traxxas Hsp Redcat RC 4wd Tamiya Axial Scx10 D90 Hpi RC Tank Car
Feature:
1. High-quality material: RC crawler motor is made of aluminum alloy material processed by CNC, which is strong and durable and has good working performance.
2. Easy to use: This product is easy to install and use. A great replacement for old or damaged ones.
3. High-purity copper windings maximize efficiency. Lightweight and easy to carry.
4. Precisely balanced rotor, smoothness, to ensure the best reliability and maximum speed. Precision engineered for maximum energy conversion.
5. Suitable for 1/8 1/10 RC off-road tracked vehicle Traxxas Hsp Redcat Rc 4wd Tamiya Axial Scx10 D90 Hpi RC tank vehicle etc.
Specification:
Item number: DRM11306
Product name: Brushless Motor
Material: Metal
Type: Standard/CNC machining
Length: 50mm/1.97in
Axle width: 3mm
Diameter: 36mm/1.42in
Number of stators: 4
Stator armature: 12
Number of revolutions: 3600KV /4500KV /5200KV
No-load current (11.1V): 2.0A /2.8A /3.7A
Maximum power: 900W
Maximum current: 70A /75A /95A
Battery: 2-4S (15V)
Weight: 185g
Application: 1/8 1/10 RC Off Road Track Vehicle, for Traxxas Hsp Redcat Rc 4wd Tamiya Axial Scx10 D90 Hpi RC Tank Vehicle etc.

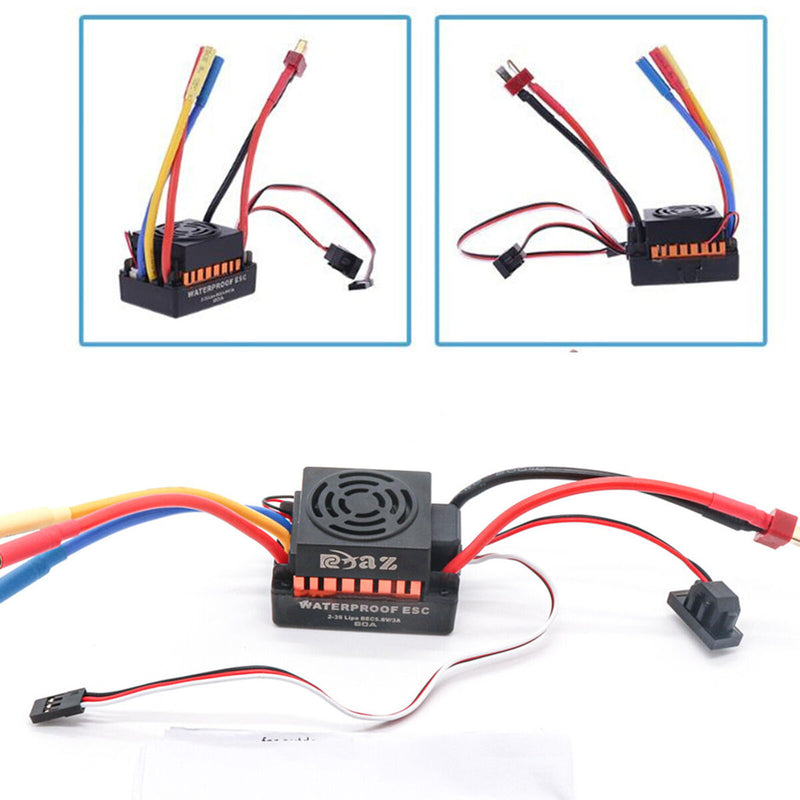

ESC:
Type: Brushed
Battery: 2S&3S Lipo, 4-12 cells Ni-MH&Ni-Cd
Continuous current: 60A
Instantaneous current: 120A
Reverse current: 45A (60A MAX)
BEC output: 5V/2A
Low voltage protection: Yes, when the voltage is too low, the protection mode is turned on, and the red indicator light flashes
Overheating protection: Yes, when the temperature reaches 100 , the speed becomes slower, when the temperature drops, the speed returns to normal
Function: Forward, backward, brake
Splash Proof: Yes
Auto center position: Yes
Scope of use: Suitable for 1/8 1/10 RC Racing Car Off-Road Truck, Boat, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.
