Features and specifications:
The constant voltage and constant current programmable control power supply module converts the collection of analog integration and digital control functions into one. Its adjustable output voltage range is 0-50.00 V, step 0.01 V. Its adjustable output current range is 0-5,000A, step 0.001A. This module has power-down stored function and can set 10 groups value. And it also has the function of quickly extracting two groups of stored value. Compared to the traditional analog power supply, it is more convenient to quickly extract the voltage or current needed. LCD screen on the module has the function digital voltmeter and ammeter. You can remember the set voltage, input voltage, output voltage, the set current, output current, output power, etc. on the output state, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not , The key is locked or not, and the current data groups being used. On the data interface setting, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high precision, is used independently, is used in the device and is widely applied.
Technical parameters:
Input voltage: 6.00-55.00 V output voltage: 0 V-50.00 V
Output current: 0-5,000A output power range: 00.00-250.0 W
Product Weight: 78g Product Dimensions: 79 * 43 * 48 (mm) (L * W * H)
Open size: 71mm * 39mm output voltage resolution: 0.01 V
Output current resolution: 0.001A Output voltage accuracy: ± (0.5% + 1 digits)
Output current accuracy: ± (0.5% + 2 digit)Panel and Display interface description:
1-Voltage setting / Select page / Shortcut extract M1 data group
2-Data setting / Extract value of the specified data group / Store value in the specified data group
3-Current setting / Page Down to select / Shortcut extract M2 data group

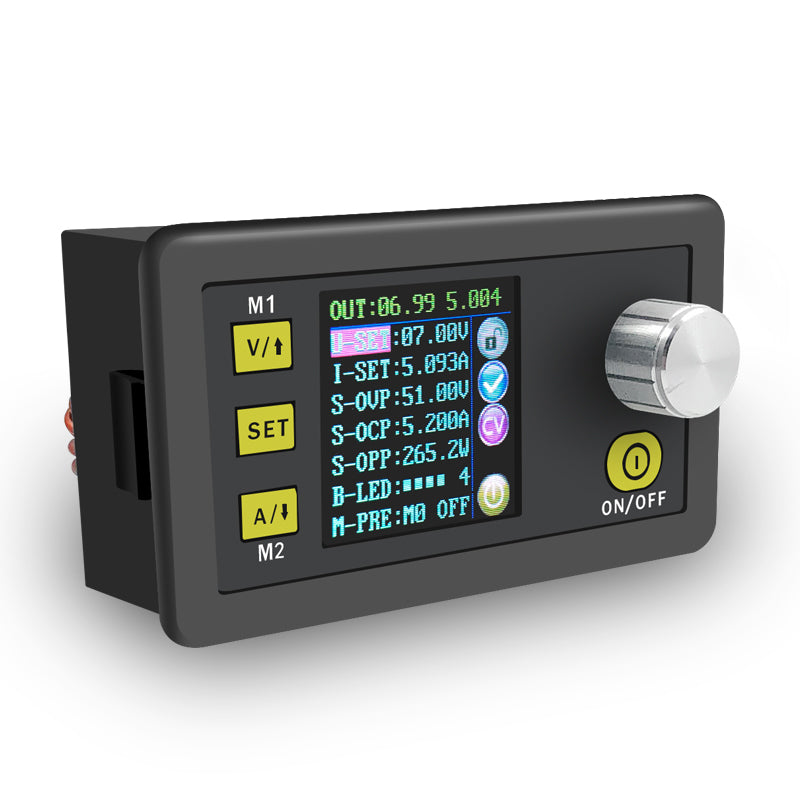

4-1.44 inch color LCD screen
5-Coding potentiometer / Data adjustment / Lock all buttons
6-Open or close output
Display interface description [1] Main Interface [2] Data Setting Interface:
1-the set value of the output voltage
2-the actual value of output voltage
3-the actual value of output current
4-the actual value of output power
5-the actual value of input voltage
6-the set value of output current
7-Key lock or unlock prompt
8 output normal or not prompt
9-constant voltage and constant current status prompt
10-Data set prompt
11-Open or close output prompt
12-Preset output voltage
13-Preset output current
14-Preset over-voltage
15-Preset over-current
16-Preset over-power
17-Preset screen brightness
18-Preset data set
19-the actual value of output voltage and output current
Products Dimensions: 79mm x 43mm x 48mm
Open Size: 71mm x 39mm
General information:

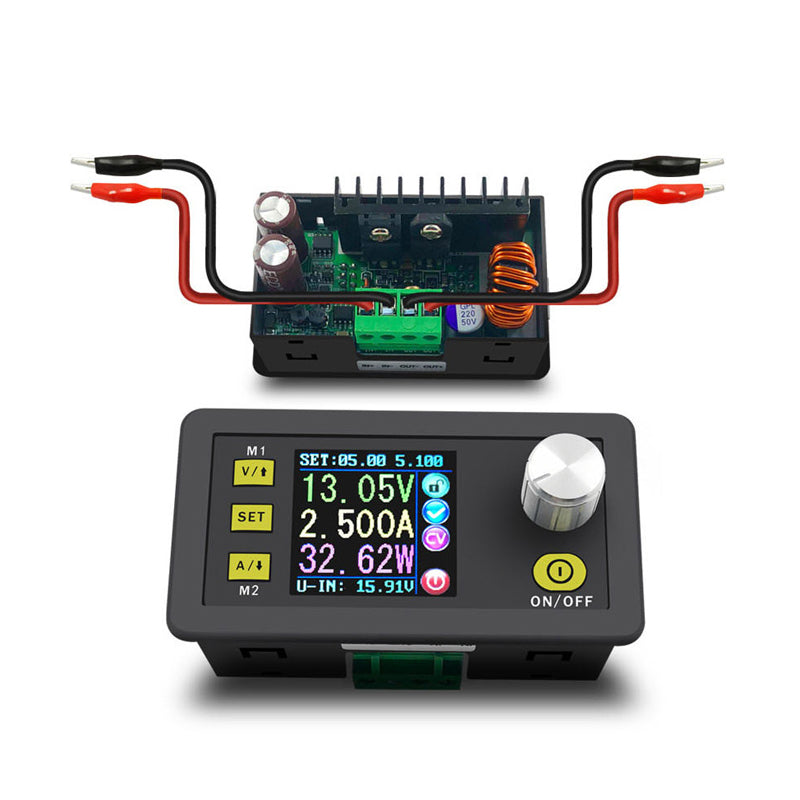

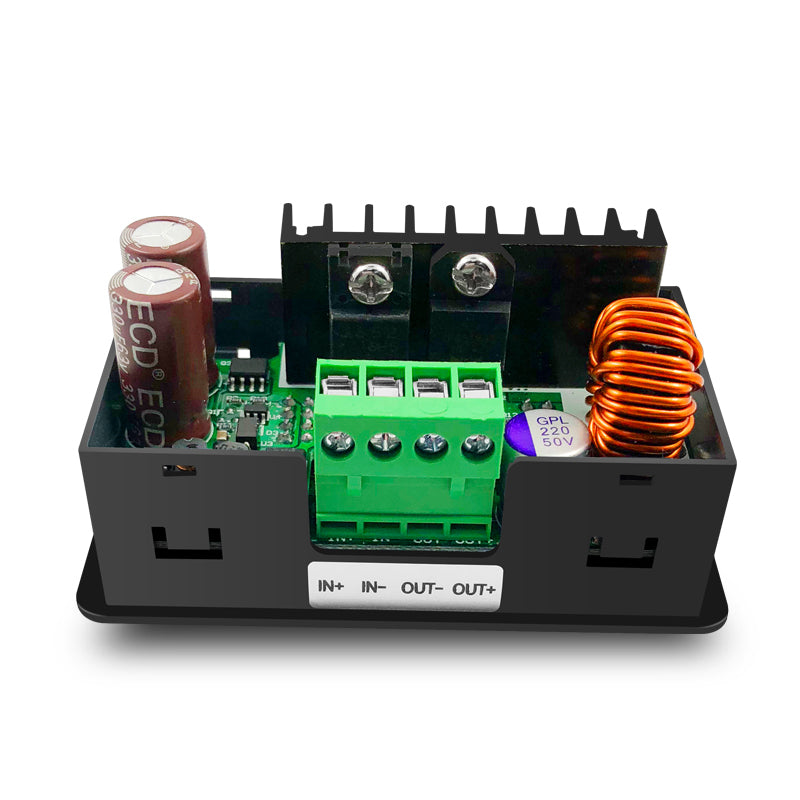

①IN +: Input positive ②IN-: Input negative: ③OUT +: Output positive: ④ OUT-: Output negative
Note: input voltage range is DC 6-55 V and 55 v is the limit voltage; leave a room to use. Or else it will be burned. The input must be DC power supply, not AC 220 V, or else it will be burned too. Although this module has reverse connection protection and short circuit protection, you can muse to connect in strict accordance with connection description. If you connect the power supply with output, the module will be burned.
Package includes:
1 X 50 V 5A CNC Power Supply DC Voltmeter
1 X Alligator clip Line (2x Red 2x Black)

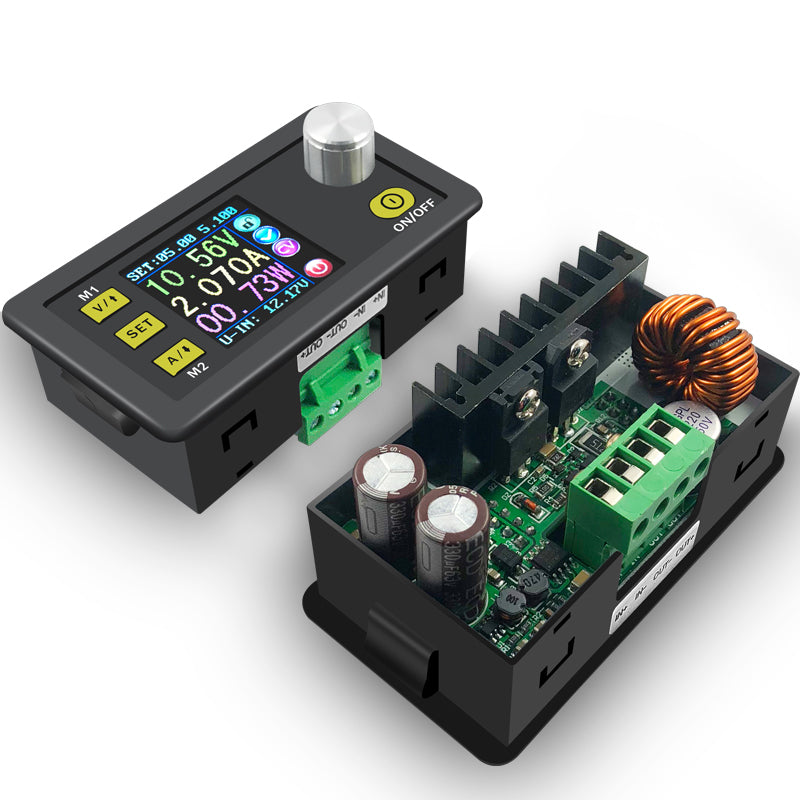

Details pictures:
