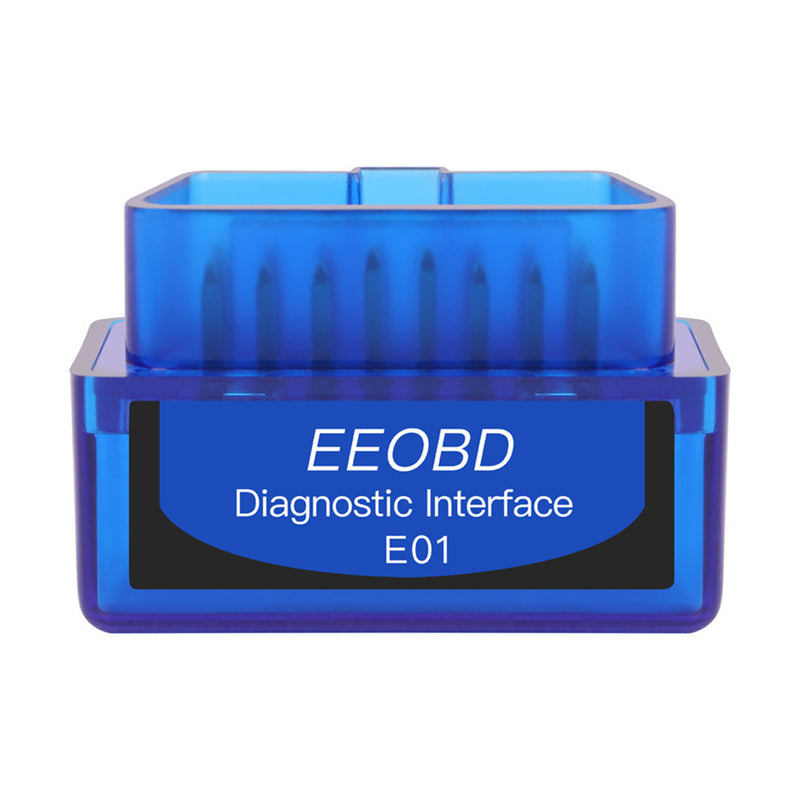

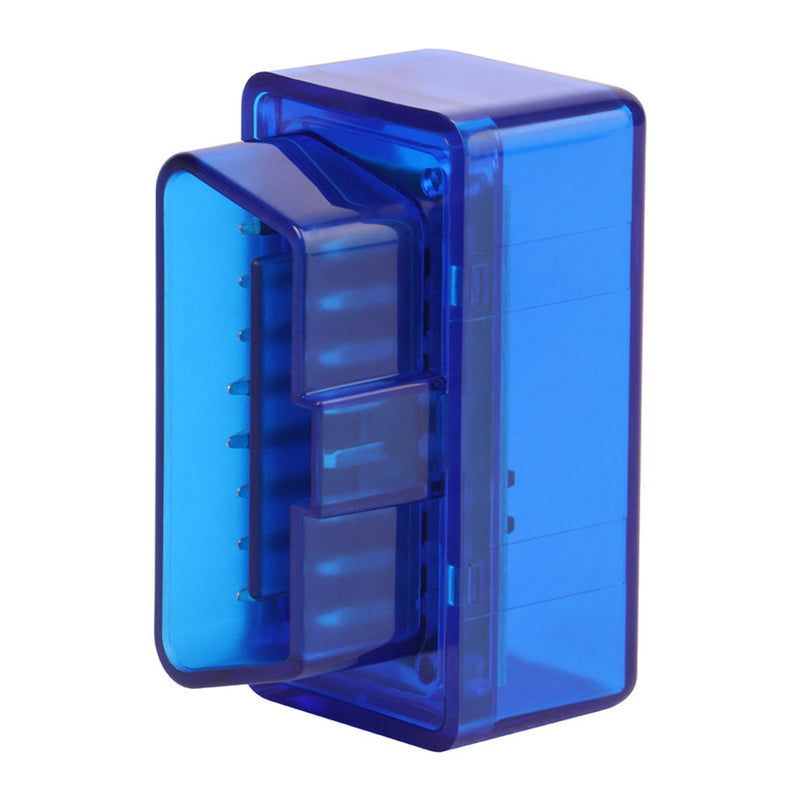

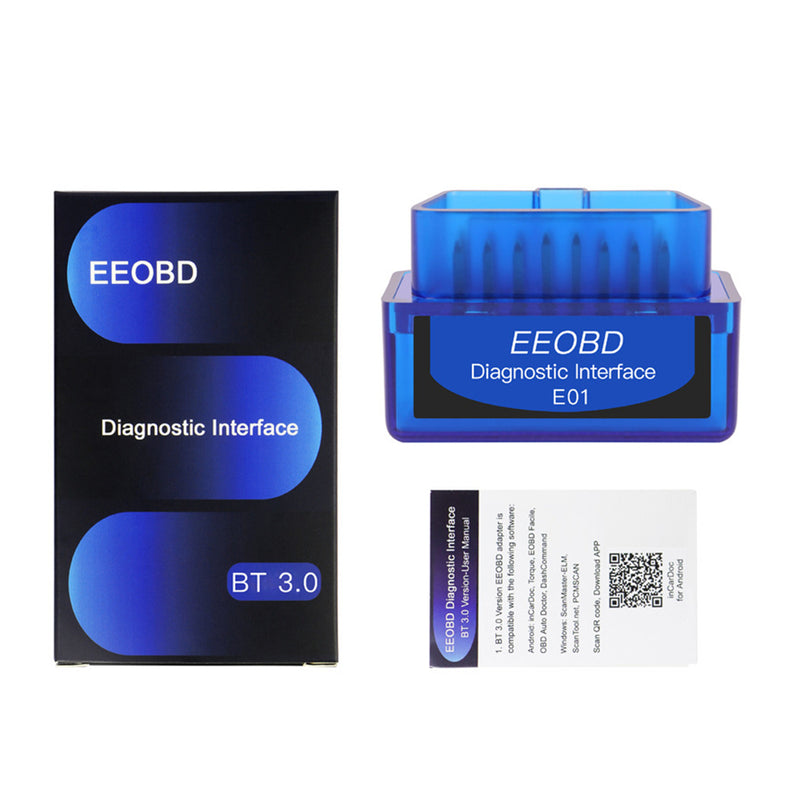

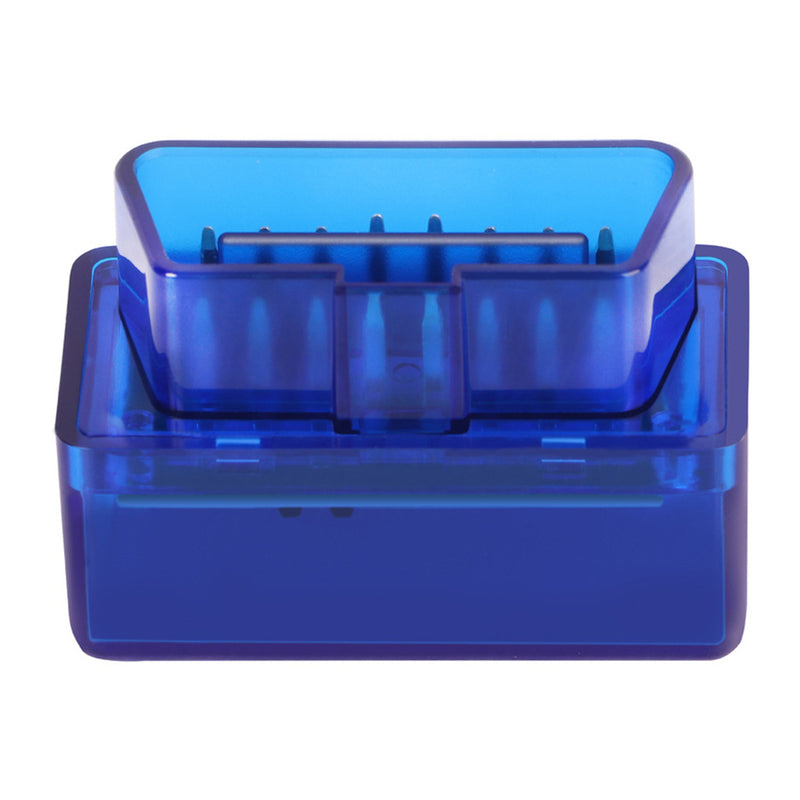

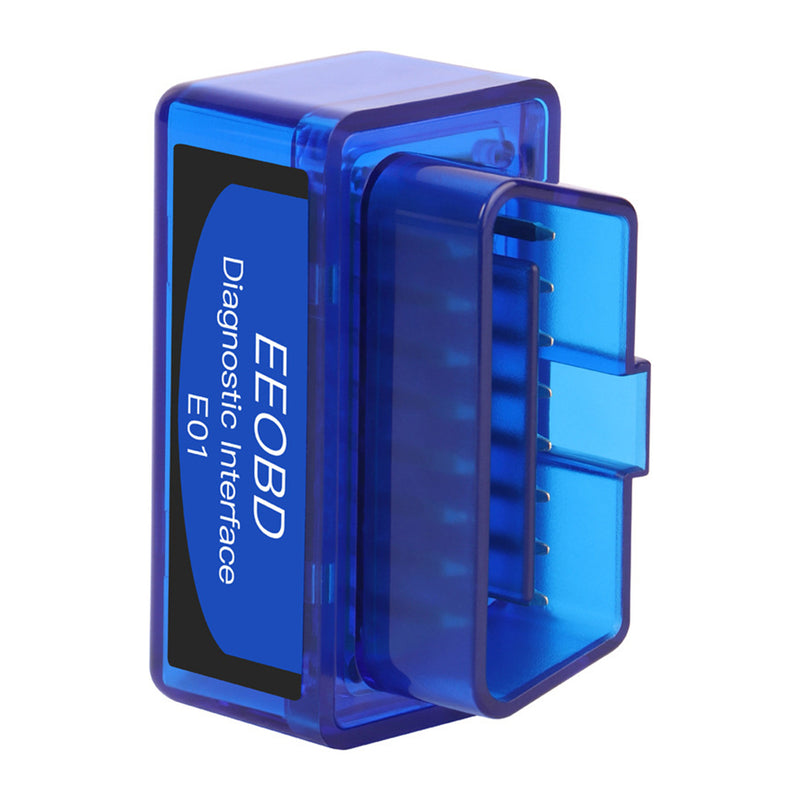

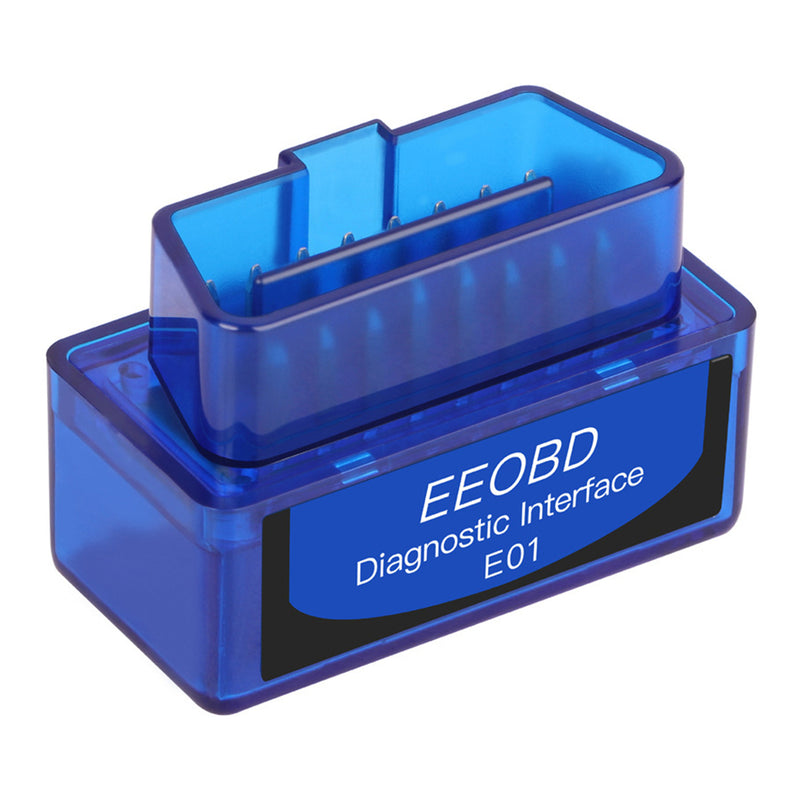

EEOBD E01 ELM327 BT3.0 bluetooth Diagnostic Interface Tool OBD2 Scanner Fault Code Reader for 12V Car
Save 0
SKU: U2I-BG-1603393
Share this product
Description
Product Specification:
Brand: EEOBD Model: E01 Product Name: bluetooth Car Auto Diagnostic Interface Scanner Communication method: Bluetooth bluetooth version: BT3.0 bluetooth connection password: 1234 bluetooth effective distance: within 10 meters of obstacles; within 30 meters of obstacles Output protocol: RS232 Baud rate: 38400 Product material: ABS Product net weight: 20g Product gross weight: 30g Product size: 4.8*2.5*3.2cm Packing size 11*6.5*2.5 cm Working voltage: DC 9-16V Working current: 45 mA Working temperature: -40 ° C to 80 ° C
Supported Vehicle Agreements:
1) ISO9141-2 (5 baud initialization, 10.4K baud) 2) ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud) 3) ISO14230-4 KWP (Quick Initialization, 10.4 Kbaud) 4) ISO15765-4 CAN (11-bit ID, 500 Kbaud) 5) ISO15765-4 CAN (29-bit ID, 500 Kbaud) 6) ISO15765-4 CAN (11-digit ID, 250 Kbaud) 7) ISO15765-4 CAN (29-bit ID, 250 Kbaud) -SAE J1939 CAN (29-bit ID, 250 * Kbaud) -USER1 CAN (11 * bit ID, 125 * Kbaud) -USER2 CAN (11 * bit ID, 50 * kbaud)
Compatible Devices and Software:
for Android phone: TORQUE software for Symbian phone: OBDscope software for Windows 7 / XP system computer: ScanMaster-ELM software
EEOBD-E01 Features:
1. bluetooth 3.0, the connection is faster and more stable 2. Plug and play, quick installation 3. Mini size, easy to carry, does not affect driving after installation
EEOBD-E01 Function:
The E01 is a new high quality automotive fault detector in 2020 with the following features: 1. Read the fault code and display the code definition 2. Clear the general fault code and turn off the fault indicator (some important fault codes need to be repaired before they can be completely cleared) 3. Read real-time speed 4. Engine speed 5. Coolant temperature 6. Battery voltage 7. Vehicle agreement type 8. Vehicle identification code 9. Display sensor data 10. Calculate the load value 11. Fuel system status 12. Short-term fuel adjustment 13. Long-term fuel adjustment 14. Absolute throttle position 15. Oxygen sensor voltage 16. Short-term fuel adjustment 17. Fuel system status 18. Fuel pressure 19. Throttle pressure 20. Timing in advance 21. Intake air temperature 22. Air flow and more.
EEOBD-E01 Vehicles Are Not Supported:
E01 products do not support trucks, trucks, carts, and 24V powered vehicles.
EEOBD-E01 Support Vehicles:
The E01 product supports most of the 12V-powered cars produced after 1996, such as the following models:
