ELM327 E10 WIFI Wireless OBD2 Car Diagnostic Scanner Adapter
Description:
1. Bring your own WIFI, no need to connect
2. Plug and play, quick installation
3. Small size, easy to carry, does not affect drivingfter installation
Product Parameters:
Brand: EEOBD
Product material: ABS
Product net weight: 20g
Product gross weight: 30g
Product size: 4.8*2.5*3.2cm
Packing size 11*6.5*2.5 cm
Working Parameters:
Working voltage: 9-16V
Working current: 45 mA
Working temperature: -40 ° C to 100
Function:
The EEOBD-E07 is a new high quality automotive fault detector in 2020 with the following features:
1. Read the fault code and display the code definition
2. Clear the general fault code and turn off the fault indicator (some important fault codes need to be repaired
before they can be completely cleared)
3. Read real-time speed
4. Engine speed
5. Coolant temperature
6. Battery voltage
7. Vehicle agreement type
8. Vehicle identification code
9. Display sensor data
10. Calculate the load value
11. Fuel system
12. Short-term fuel adjustment
13. Long-term fuel adjustment
14. Absolute throttle position
15. Oxygen sensor voltage
16. Short-term fuel adjustment
17. Fuel pressure
18. Throttle pressure
19. Timing in advance
20. Intake air temperature
21. Air flow and more.
Compatible Devices And Software:
For Android phone: TORQUE software
For Symbian phone: OBDscope software
For IOS phone: inCarDoc software
For Windows 7 / XP system computer: ScanMaster-ELM software
Communication Parameters:
Communication method: WIFI
Connection password: no password required
WIFI effective distance: within 10 meters of obstacles; within 30 meters of obstacles
Output protocol: RS232
Baud rate: 38400
Supported Vehicle Agreements:
1. For ISO9141-2 (5 baud initialization, 10.4K baud)
2. For ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
3. For ISO14230-4 KWP (Quick Initialization, 10.4 Kbaud)
4. For ISO15765-4 CAN (11-bit ID, 500 Kbaud)
5. For ISO15765-4 CAN (29-bit ID, 500 Kbaud)
6. For ISO15765-4 CAN (11-digit ID, 250 Kbaud)
7. For ISO15765-4 CAN (29-bit ID, 250 Kbaud)
8. For SAE J1850 PWM (41.6 Kbaud)
9. For SAE J1850 VPW (10.4 Kbaud)
-SAE J1939 CAN (29-bit ID, 250 * Kbaud)
-USER1 CAN (11 * bit ID, 125 * Kbaud)
-USER2 CAN (11 * bit ID, 50 * kbaud)
EEOBD-E10 Vehicles are not supported:
E07 products do not support trucks, trucks, carts, and 24V powered vehicles.
EEOBD-E07 Support Vehicles:
The E07 product supports most of the 12V-powered cars produced after 1996, such as the following models:
For Honda Accord 2006 JDM (ISO).
For Honda Accord Euro R 2004 JDM (ISO).
For Honda City GD8 (ISO).
For Honda Civic ES 1.6A (ISO).
For Honda Integra Type R DC5 JDM (ISO).
For Sir Honda 1.4M (ISO).
For Mercedes-Benz 2001/02/03 W203 C200K (ISO).
For BMW X5 2002(ISO)-3,-5 / X5 / Z3 / Z4 / Z8 / 740I / 740L / 750IL,
For Chevrolet Music (ISO).
For Citroen C3 2004 (ISO).
For Daihatsu YRV 2005 (ISO).
For Daihatsu YRV Turbo 2006 (ISO).
For Fiat Tipo 2002 (ISO).
For Ford New Oaks 2006 (CAN).
For Hyundai Accent 2004 (ISO).
For Hyundai Getz 1.3A 2004 (ISO).
For Hyundai Getz 1.6M 2004 (ISO).
For Modern Matrix 2004 (ISO).
For Modern Santa Fe 2.4A (ISO).
For Hyundai Sonata GLS (ISO).
For Hyundai Sonata 2005 (ISO).
For Modern Tuscani FX (ISO).
For Kia Carens 2005 (ISO).
For Kia Magentis 2005 (ISO).
For Kia Rio LS (ISO).
For Kia Sorento SUV 2005 (ISO).
For Lexus es300 Mazda 2 (CAN).
For Mazda 5 (CAN).
For Mazda 6 (CAN).
For Mazda Premacy 2001 (ISO).
For Mazda RX8 (CAN).
For Mitsubishi Colt 2003 (ISO).
For Mitsubishi Eclipse (GST - Turbo Car can test 1995-2000; 8.2 * 4.6 * 2cm RS / GS 1994-1996 GS can do; Turbo
Car is 1996-2000, only speed and TPS, can clear DTCS).
For Mitsubishi Pajero 3.5 V6 2006 (ISO).
For Peugeot 206 2001 can only display RPM.
For Peugeot 206 (ISO).
For Peugeot 407 (ISO).
For Renault Megane II 2005 (ISO).
For Renault Kangoo 2006 (ISO).
For Subaru Impreza 1.6TS 2002 (ISO).
For Subaru Impreza WRX 2005 (ISO).
For Proton Perdana V6.
For Subaru Legacy GT 2005.
For Peugeot 206 2000.
For Suzuki Jimny 1.3 2000.
For Toyota Camry 2.0A 2004 (ISO)
For Toyota Camry 2.4A 2005 (ISO)
For Toyota Corolla Altis 1.6A 2005 (ISO)
For Toyota Corolla GLXi G8 1999 (ISO)
For Toyota Corolla G9 2002 (ISO)
For Toyota Vios 2004 (ISO)
For Nissan Sunshine (N16).
For Nissan Cefiro (Scorpio) 2005.
For Nissan Sentra 1.8 2000/2005.
For Nissan Cefiro (Scorpio) 2005.
For Nissan Sunny B14 (ISO).
For Nissan Sunny VIP FB15 (ISO).
For Nissan X-Trail 2.0L 2004 (ISO).
For Nissan X-Trail 2.5L 2004 (ISO).
(Because there are many models, not all of them are listed here)

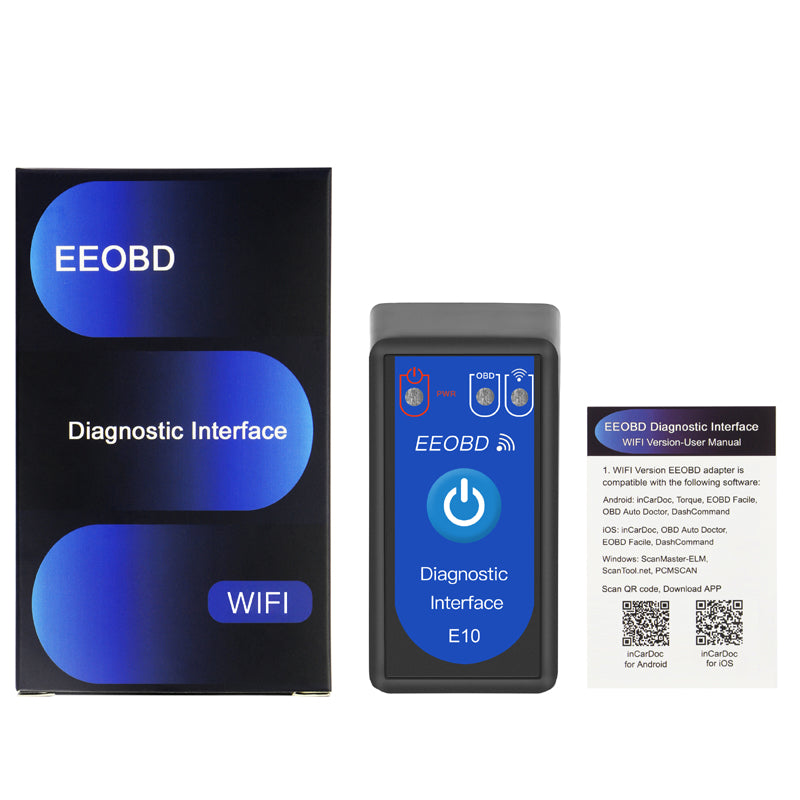

Package Included:
1 X EEOBD-E07 WIFI Car Auto Diagnostic Interface Scanner
1 X English Operating Instructions
1 X Box
