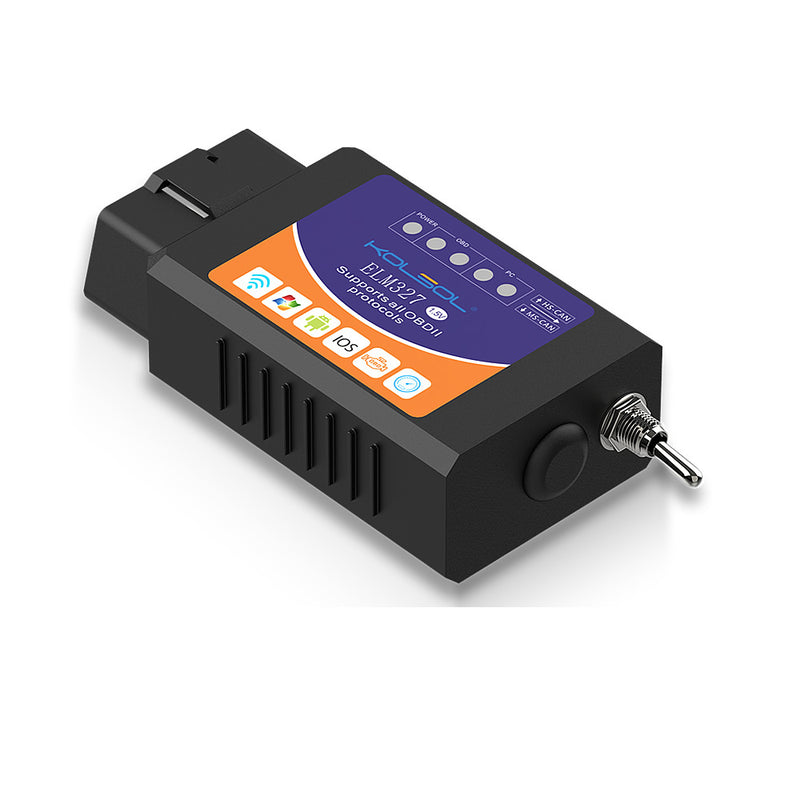

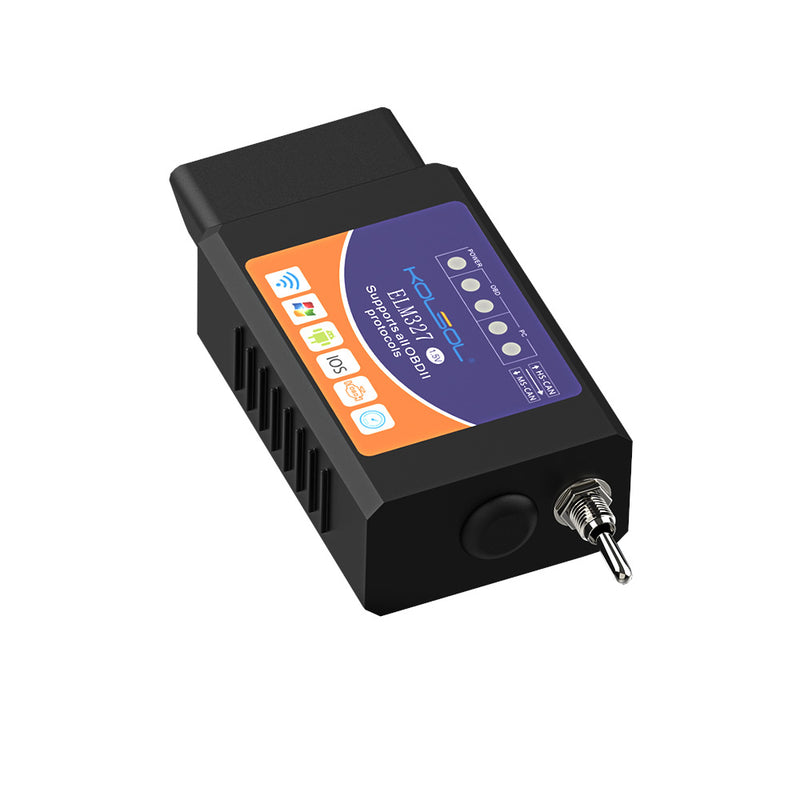

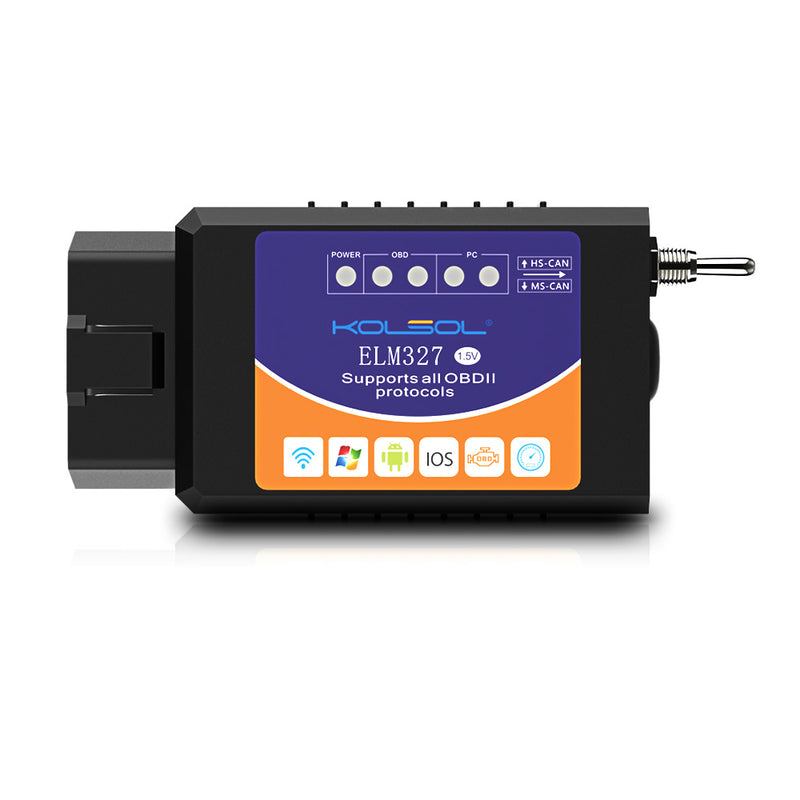

KOLSOL ELM327 V1.5 Wifi OBD2 Automobile Diagnostic Scanner Tool With Switch Modified 12V For FordSpecifications:
SSID: WiFi OBD2
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Ranging: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Highlights:
1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.
2.It supports all OBD-II protocols.3. ELM327 Will work with 12 V gasoline and diesel vehicles.Requires OBD II protocols.4.Retrieve Fault Codes (DTCs) and clear Check Engine lights.
5.support FORD models open hidden function.
6.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.
7. Supported System: IOS ,Windows XP, Windows 7, Android, Symbian.
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL.
3.Display current sensor data, including:-Engine RPM
-Calculated Load Value
-Coolant Temperature
-Fuel System Condition
-Vehicle Speed
-Short Term Fuel Trim
-Long Term Fuel Trim
-Intake Manifold Pressure
-Timing Advance
-Intake Air Temperature
-Air Flow Rate
-Absolute Throttle Position
-Oxygen sensor voltages/associated short term fuel trims
-Fuel System Condition-Fuel Pressure
-Multi-Languages:Russian, Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish and so on
(language changes with the operation system)
-Many others... Vehicle Coverage:
| America |
for Chrysler, for Dodge, for Jeep,for Ford, for Chevrolet, for Cadillac, for Lincoln, for Buick, for Hummer, etc. |
| Asia |
for Honda, for Nissan, for Lexus, for Toyota, for Mazda, for Mitsubishi, for Hyundai, for Kia, for Isuzu, for Suzuki, for Land Rover, for Daewoo, for Chery, for BYD F3/F0, for Infiniti, for Subaru, etc. |
| Europe |
for Audi, for BMW, for Citroen, for Fiat, for Mercedes, for Opel, for Peugeot, for Renault, for SEAT, for Skoda, for Volvo, for Volkswagen, for Jaguar, for Lamborghini, for Maserati, for Bentley, for Rolls Royce, for Porsche,for Opel, for Lancia, for Mclaren , for Ferrari, etc. |
Other mainstream models that comply with the international standard obd2 agreement.Supported Software:
Torque-pro
Dashcmd
ScanMaster-ELM
scantool_net113
Forscan
FOCCCUS
Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
User Manual:http://myosuploads3.banggood.com/products/20191125/20191125220203SC364-C1KOLSOLelm327WIFIWIFIEN.docxPackage includes:
1PC x KOLSOL ELM327 V1.5 Wifi OBD2 Scanner
1PC x CD-ROM
