Descriptions:
Release Notes: Product name classification indicates that the version of MODBUS has RS485 communication interface, which can be used to collect data with PC software, or communicate with PLC, DCS, smart meter and other devices! Other than that, the other features are the same!
Product parameters:
◆Can measure voltage, current and power simultaneously
◆Measured voltage range: 0.1-30V
◆ System power supply: 7-24V
◆ Current range: 0-50mA (minimum resolution 1uA, maximum overload 500mA, 50mA display, do not overload)
◆ Accuracy: 0.1% ± 1 word
◆Support standard Modbus RTU protocol, communication mode RS485
◆ Modbus communication protocol function can set 1-254 device addresses
◆ Product size: 79*43*33MM
◆Installation opening: 76*39MM
◆ Weight: 39G
Paqkage Includes:
1 x Micro-ampere meter

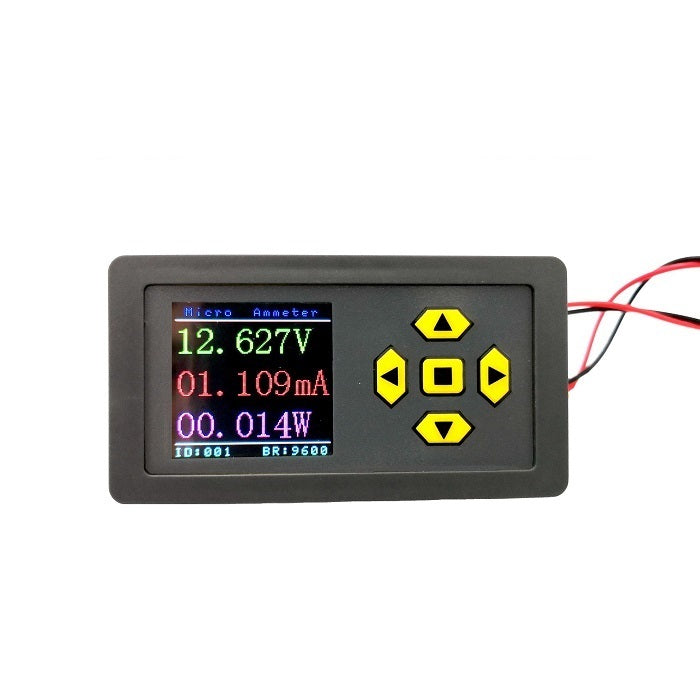

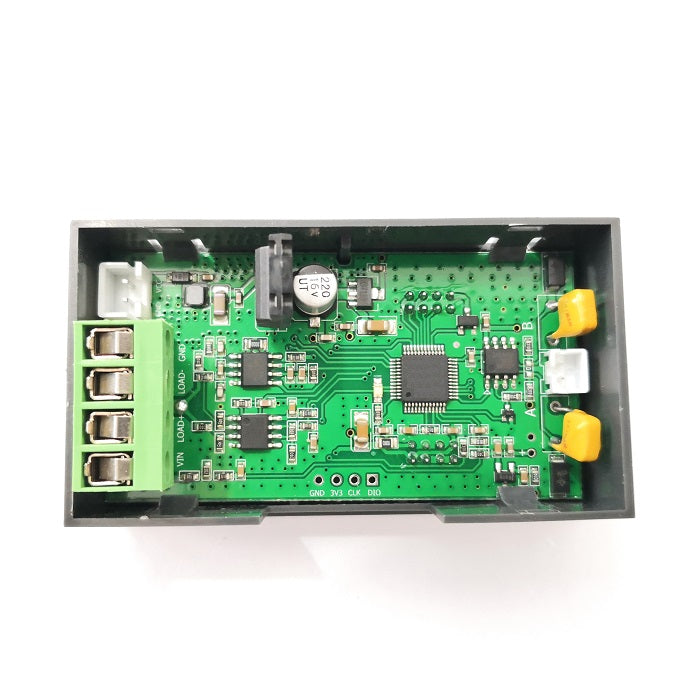

Details Pictures:
