Description:
INPUT 3.5V/1.4A; OUTPUT 3.3V/1.5A
INPUT 3.7V/1.89A; OUTPUT 3.3V/2A
INPUT 4.2V/1.67A; OUTPUT 3.3V/2A
INPUT 4.5V/1.46A; OUTPUT 3.3V/2A
INPUT 5V/1.4A; OUTPUT 3.3V/2A
Input voltage 3.3-5.5V, output 3.3V (deviation ±2.0%)
Long time maximum output current 1.8A
Short time maximum output current 2.2A
Up to 97% efficiency(@4.2V to 3.3V/500MA)
Low Quiescent Current : 20uA
Overtemperature shutdown, input under-voltage protection, External Soft start, and short circuit protection.
DC-DC Buck Step-down module working frequency 1.2MHZ.
Size :15mm x 11mm x 5.7mm
Applications:
MCU Development Board : UNO MEGA2560 Pro mini FPGA/CPLD STM32
Breadboard Power
Wifi Module:ESP8266 ESP-12E NodeMcu V3 V2 Lua WIFI Internet of Things development board
Bluetooth module : HC-05 HC-06 SPP-C
Wireless UART module : HC-11 HC-12
wireless module : CC1101 CC2500 Nrf24l01+
3-3.5V led lights
Model aircraft Quadcopter
High Speed Brushless DC Motor
Attention:
This is a DC-DC voltage converter module,Must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself.
Package Included:

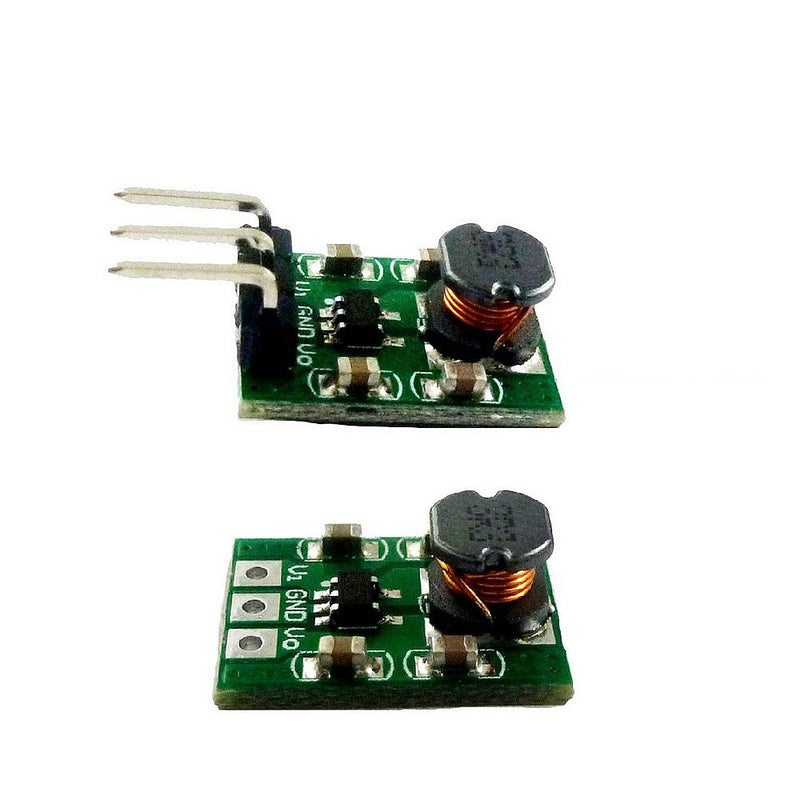

1 x Mini 2A DC DC Buck Converter 3.3-5.5V to 3.3V Module Step Down Voltage Regulator
