Description:

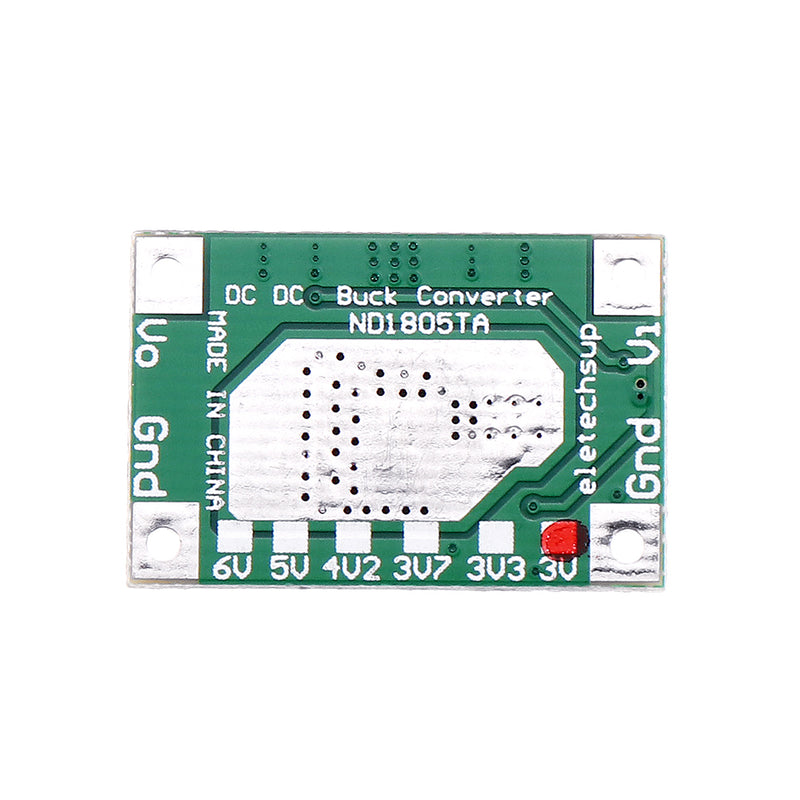

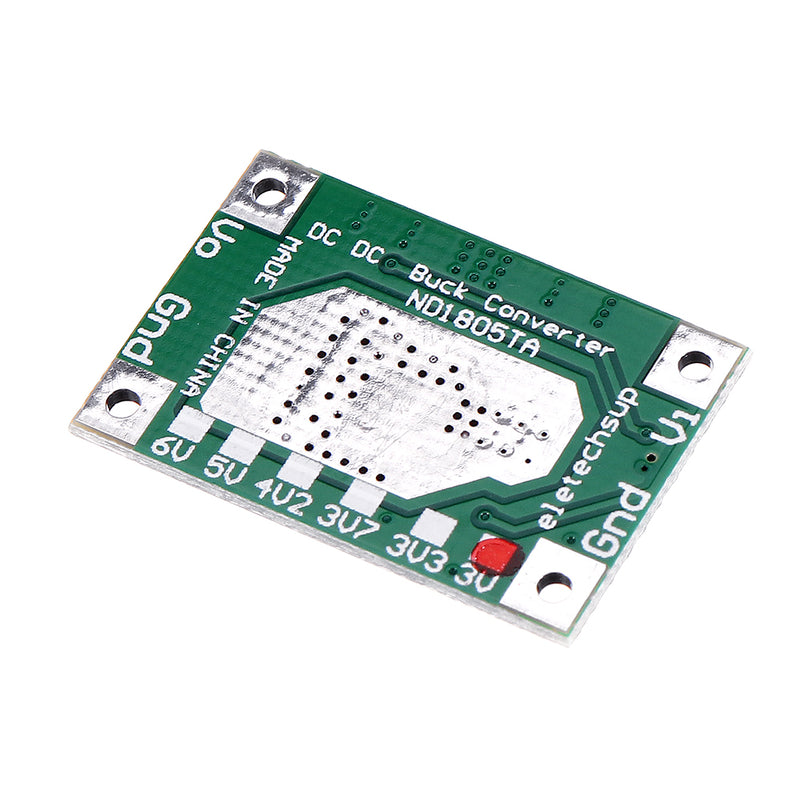

3V : Input voltage 4.5~18V,output 3V
3.3V : Input voltage 4.5~18V,output 3.3V
3.7V : Input voltage 4.5~18V,output 3.7V
4.2V : Input voltage 4.5~18V,output 4.2V
5V :Input voltage 6~18V,output 5V
6V :Input voltage 7~18V,output 6V
- Maximum output current 4A,Short time maximum output current 5A
- DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 77-93% .
- Quiescent current: 16-18mA
- External soft start, Thermal shutdown, Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over Current Protection, and short circuit protection.
Size : 27 x 18 x 5mm
Attentions:
This is a DC-DC voltage converter module,Must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
Applications:
DC motor power supply
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTV camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier
Package Included:

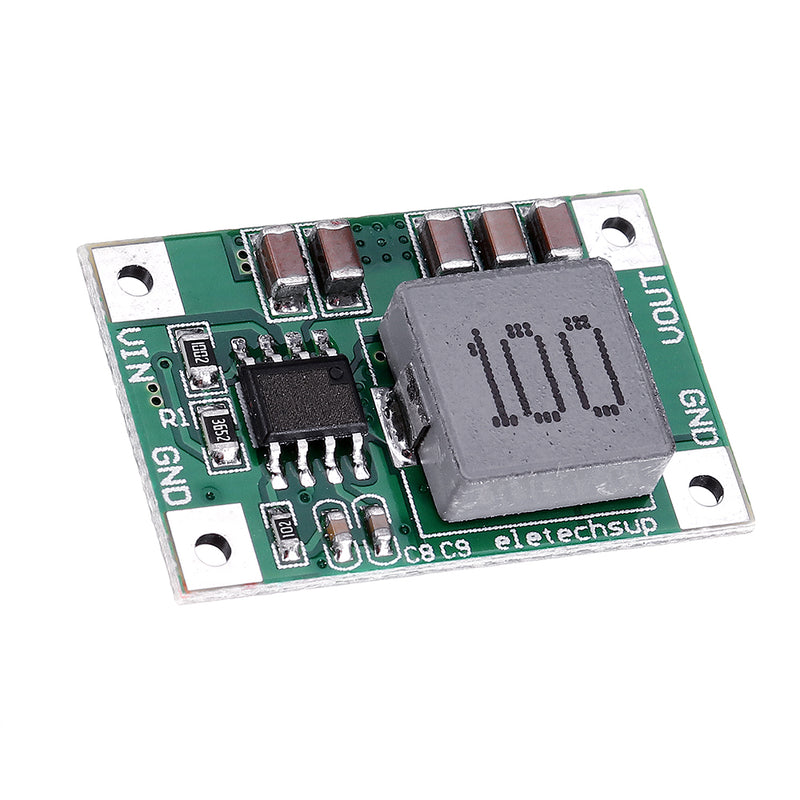

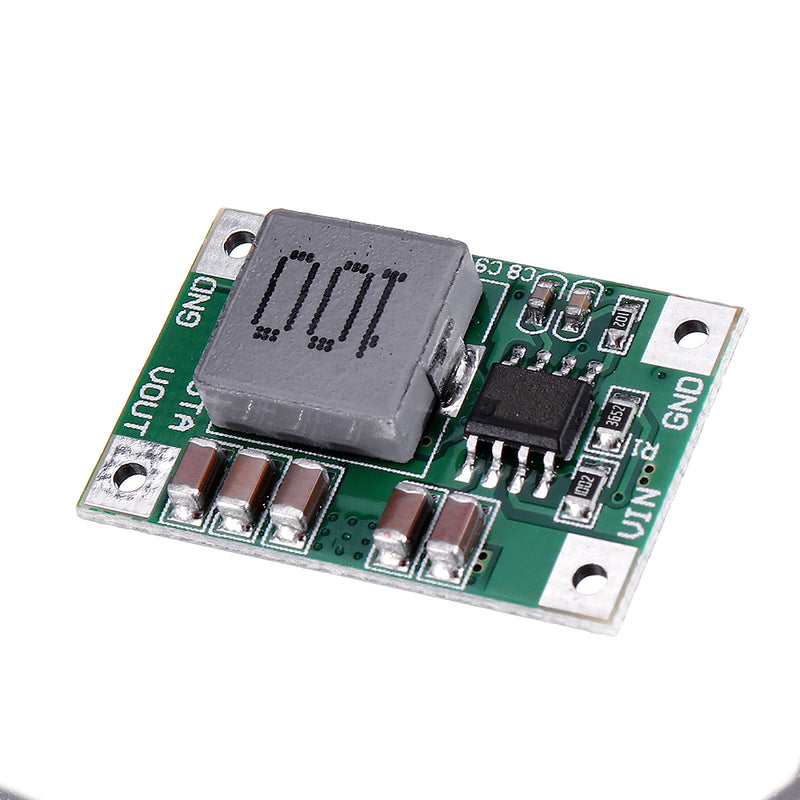

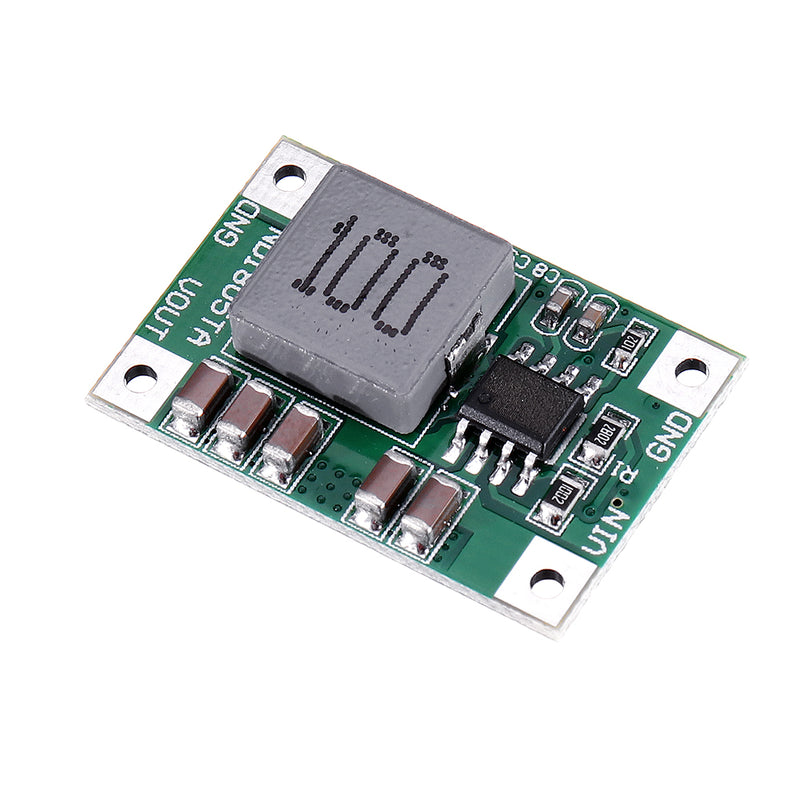

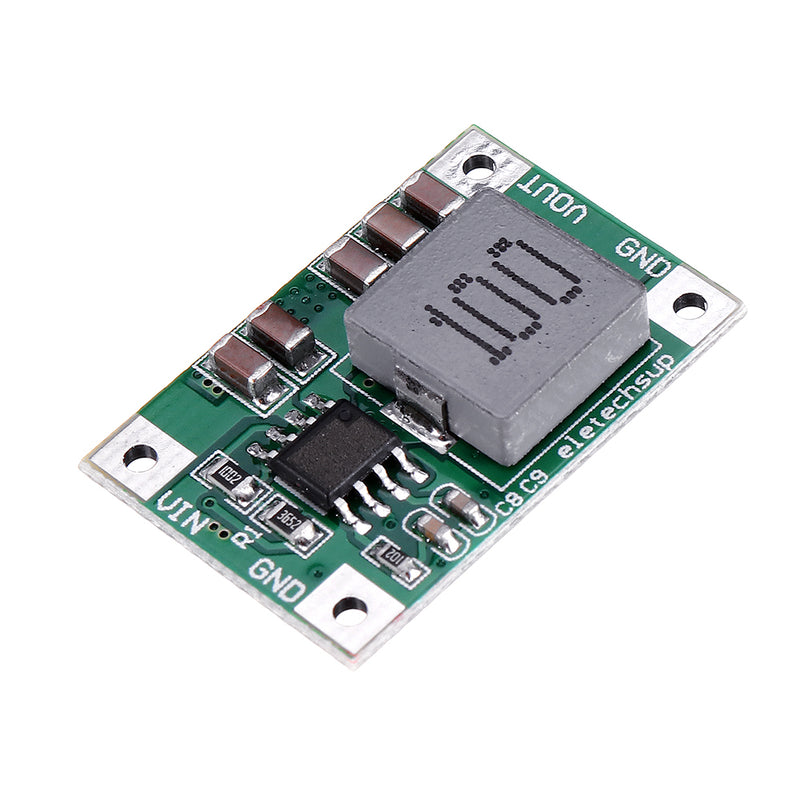

1 x Mini 5A DC-DC Converter Step Down Module Voltage Regulator Buck Board
