Descriptions:
- Suitable for 1-1000AH 12V Lead-Acid Battery charger
- Suitable for 12V Solar panels Max power voltage(V MMPT):17.5-18.5V
- Photovoltaic Cell Maximum Power Tracking(MPPT)
- Power supply voltage : 12V Solar panels or 18-28VDC power supply
- Over Charge Voltage is 14.8V
- Float Charge Voltage is 13.55V
- Maximum charge current : 3A
- Quiescent current: about 1.8mA
- High PWM Switching Frequency:300KHz
- Fixed Over-Charge Voltage
- Overcurrent protection
- Automatic Conditioning of Deeply Discharged Batteries
- Automatic Recharge
- Charger Status Indication
- Battery Overvoltage Protection
- Size: 46 x 20x 14mm
Applications:
Car battery charging
Solar street light
Solar panels battery charging
Mobile Loadspeaker
Lead-Acid Battery Charger
Electric Bicycle Charger
Solar UPS
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Package Incldued:

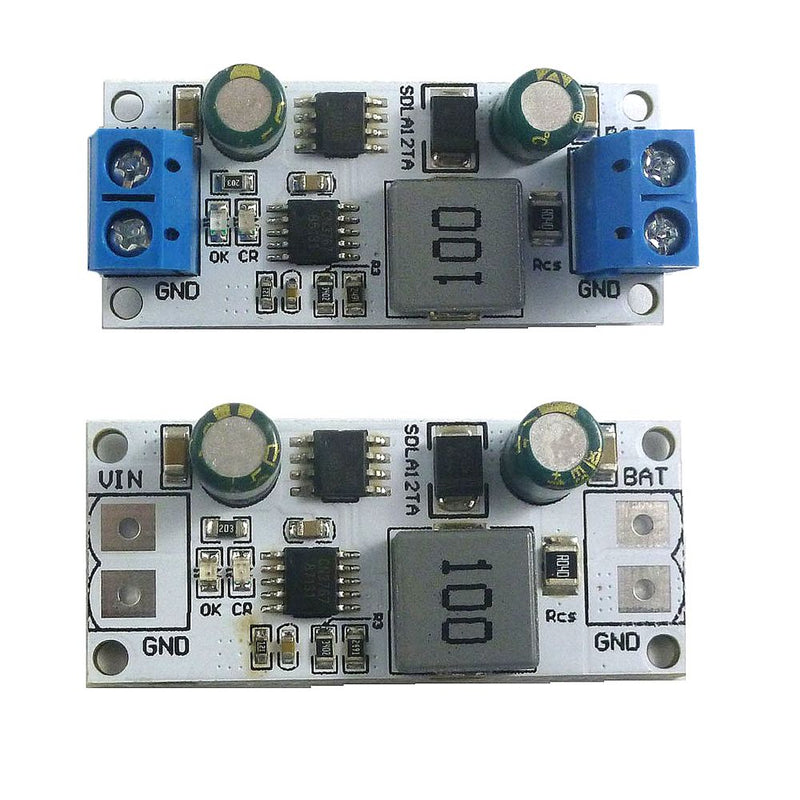

1 x MPPT Solar Panel Controller Charging Board for 12V DC 1-1000Ah Lead Acid Battery
