Description:

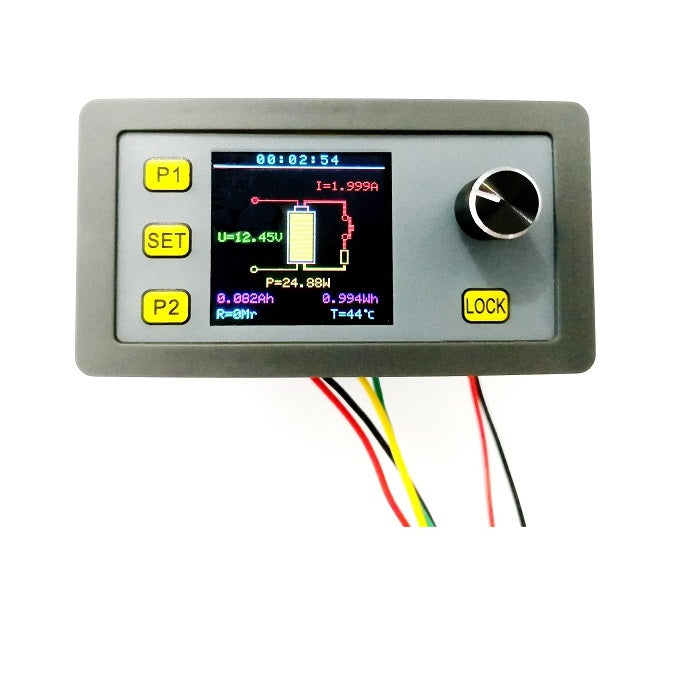

1, can display voltage, current, power, ampere-hour, watt-hour, discharge time, internal resistance, temperature
2, can set the discharge current, constant current discharge
3, discharge safety, discharge time automatic statistics
4, can be suspended, can accumulate discharge data
5, fan intelligent temperature control, more than 45 degrees fan start
6, a variety of protection mechanisms, anti-reverse protection, over-current protection, under-voltage protection, over-power protection, over-heat protection
7, with RS485 serial port, can achieve MODBUS protocol communication
Release Notes: This electronic load module is divided into two versions, the electronic load version and the version with MODBUS function. The difference is that the power supply with MODBUS version has RS485 communication interface, which can be set or data collected by the host computer software. Communicate with computers, PLCs, DCS, smart meters and other devices! Other than that, the other features are the same!
Product parameters:
Module supply voltage: 6V-30V
Measuring voltage: 0-30V
Discharge current: 0A-5A continuously adjustable
Discharge power: up to 30W (Note: Do not use super power!!)
Working temperature: -10~+75 degrees
Resolution: voltage 0.01V, current 0.001A
Accuracy: voltage 1% ± 1 word, current 1% ± 1 word
Undervoltage protection: Yes (1.5-30V)
Over power protection: Yes (1-30W)
Overheat protection: Yes (more than 45 degrees fan start, overheat protection is 75 degrees)
Input anti-reverse: Yes

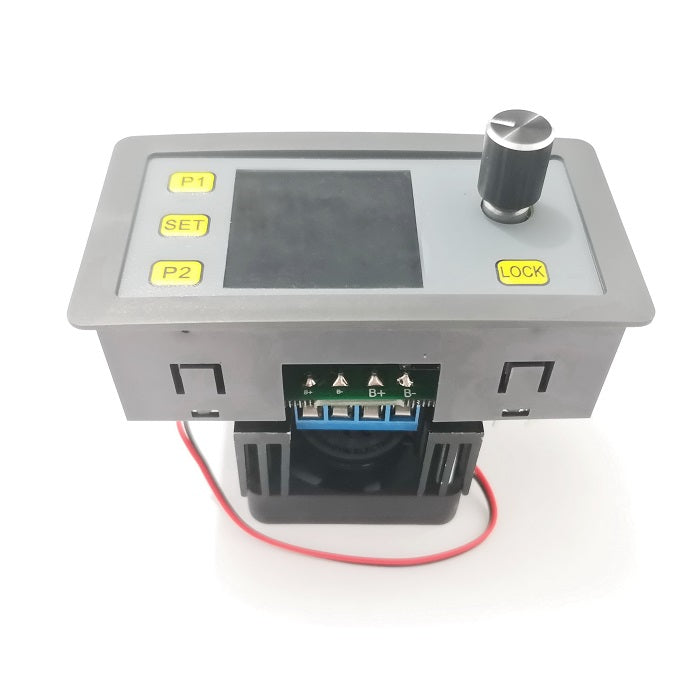

Wiring method: small screen printing B+B- for measuring voltage, large screen printing B+B- for measuring current

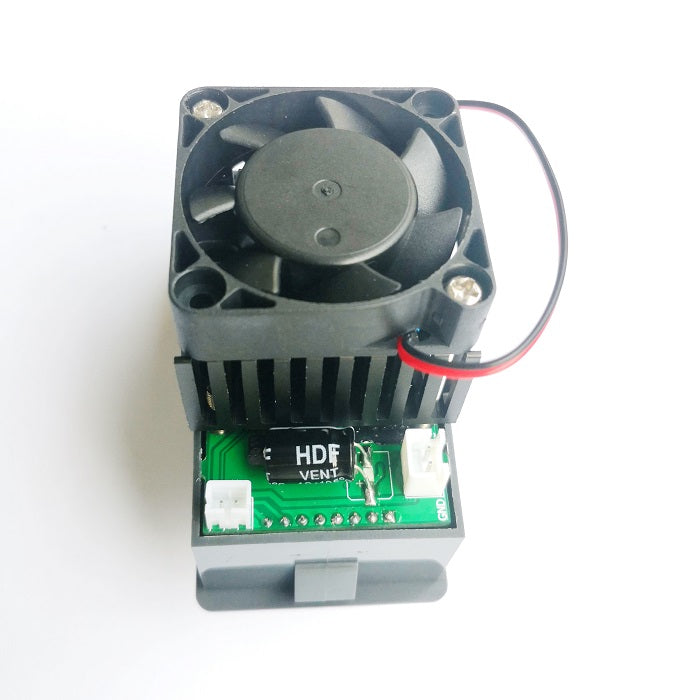

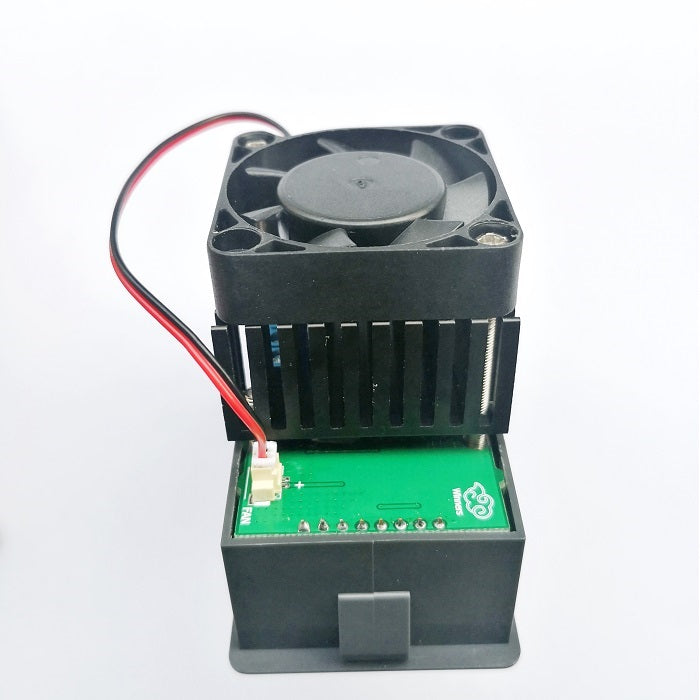

Fan: 4010 double roller fan, speed 8000
Module size: length 79mm width 43mm height 70mm
Opening size: length 76mm width 39mm
Weight: 95g

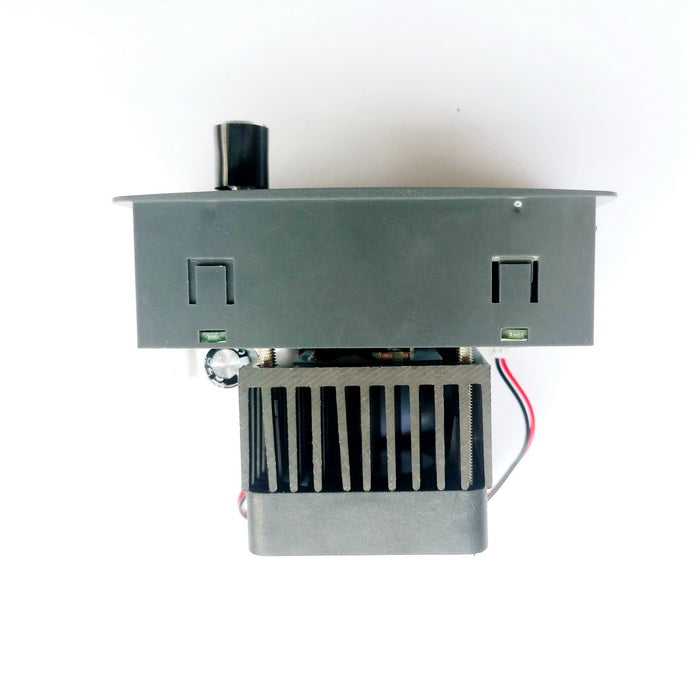

Details Pictures:
