Specification:
Color: Black,Red
Length: 30.5cm / 12''
Features:
1. It has integrated the basic diagnostic functions of J1939 heavy duty truck standard communication protocols.
2. SAE J1939 is the vehicle bus recommended practice used for communication and diagnostics among vehicle components, originally
by the car and heavy-duty truck industry in the United States.

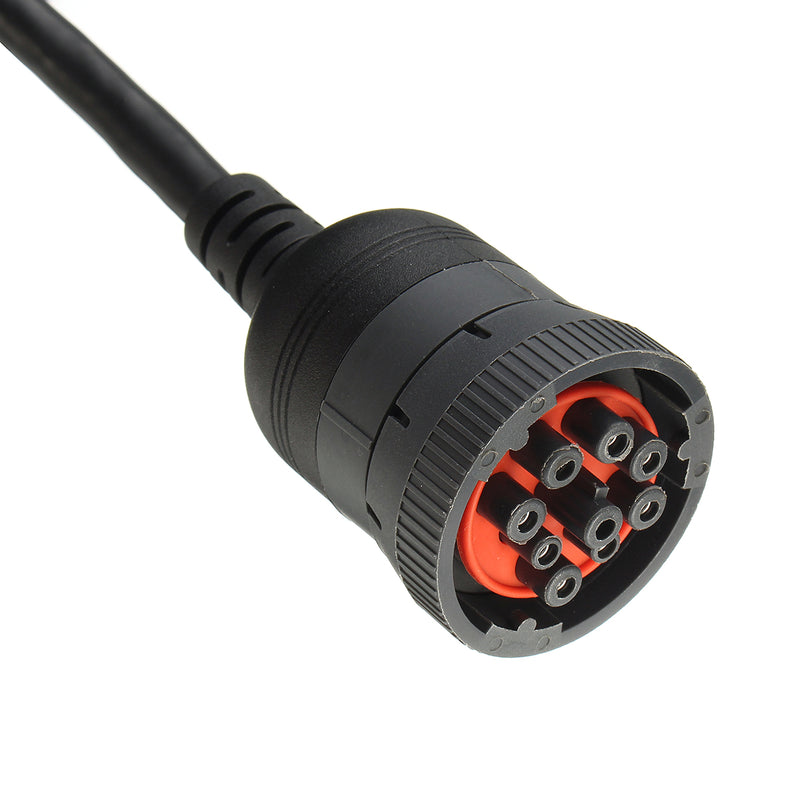

3. The Deutsch 9 pin connector is according to the standard of SAE J1939.
4. Deutsch 9 pin female connector can now be found in a range of diesel-powered applications: vehicles (on- and off-road), marine
propulsion, power generation and industrial pum ping.
Pins Definition:
Pin A: Ground
Pin B: Power, 12V or 24V which depends on your trucks/vehicles output.
Pin C: CAN1/J1939+
Pin D: CAN1/J1939-
Pin E: CAN1/J1939 Shield
Pin F: J1708/J1587 High
Pin G: J1708/J1587 Low
Pin H: Null
Pin I: Null which is for Port J on trucks/vehicles’ socket.
Package list:

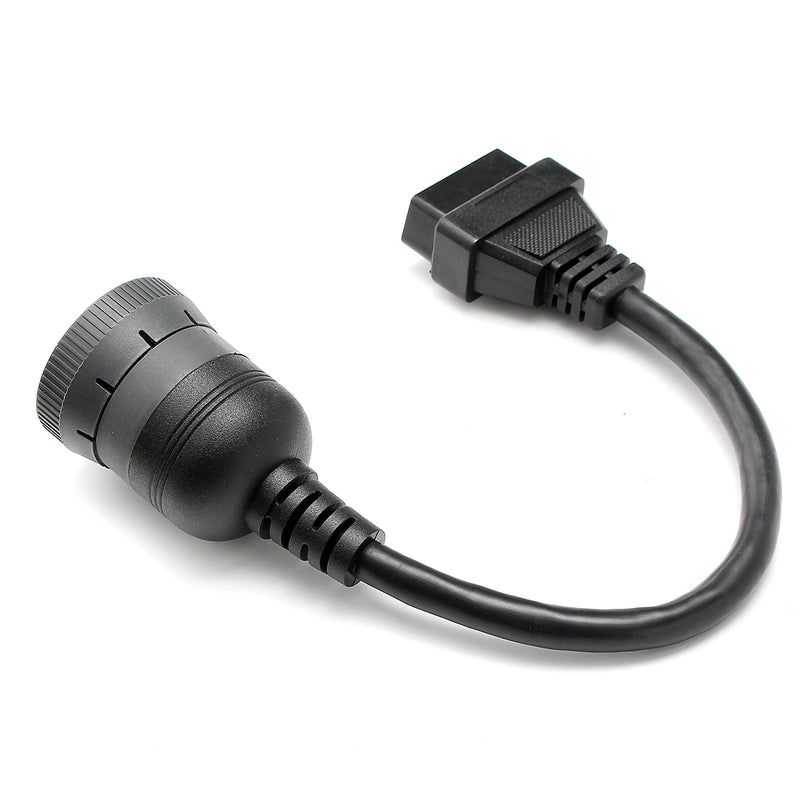

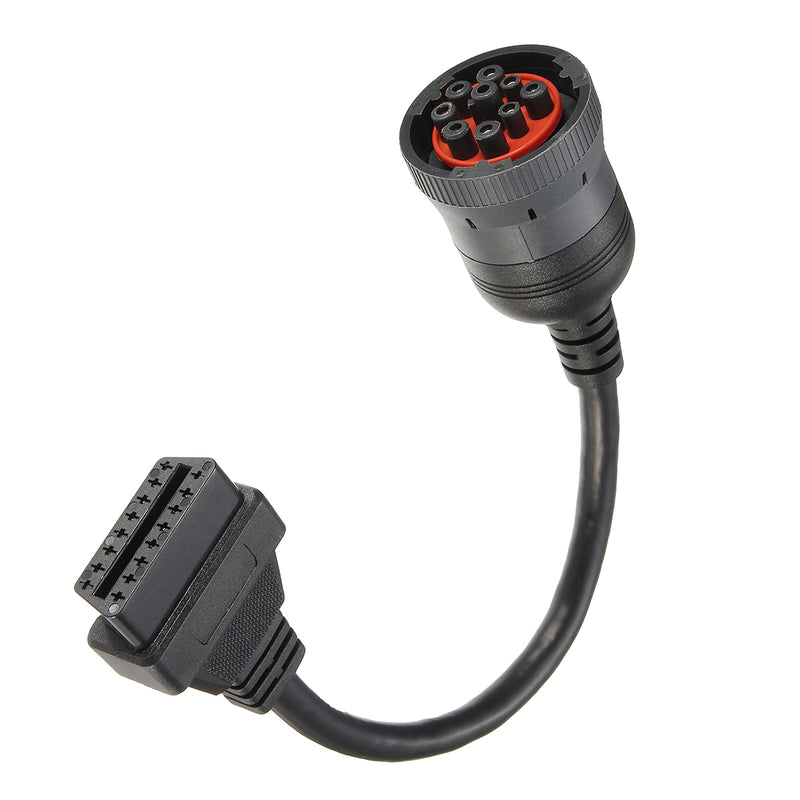

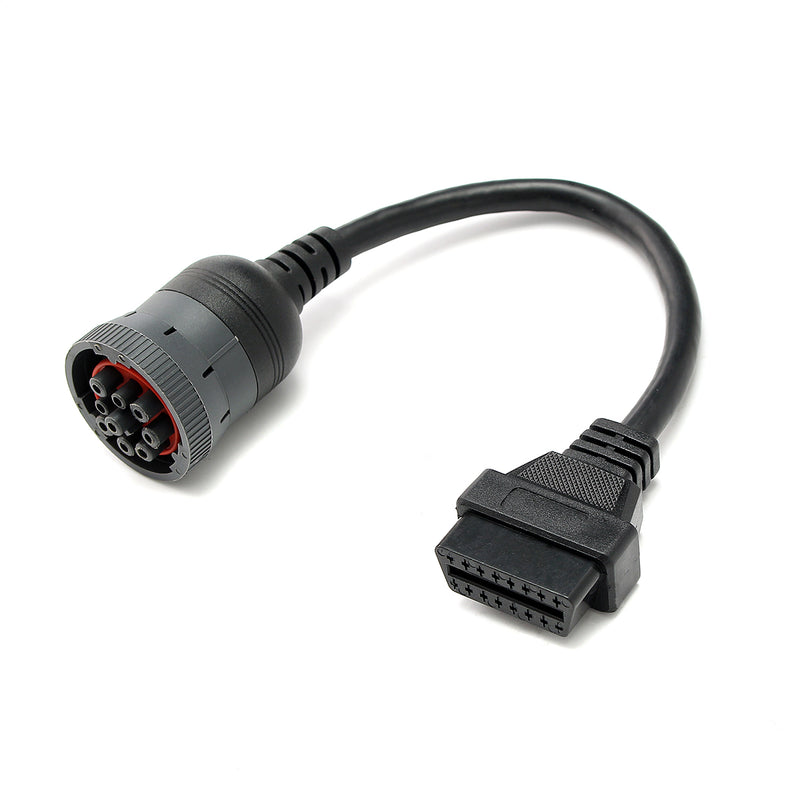

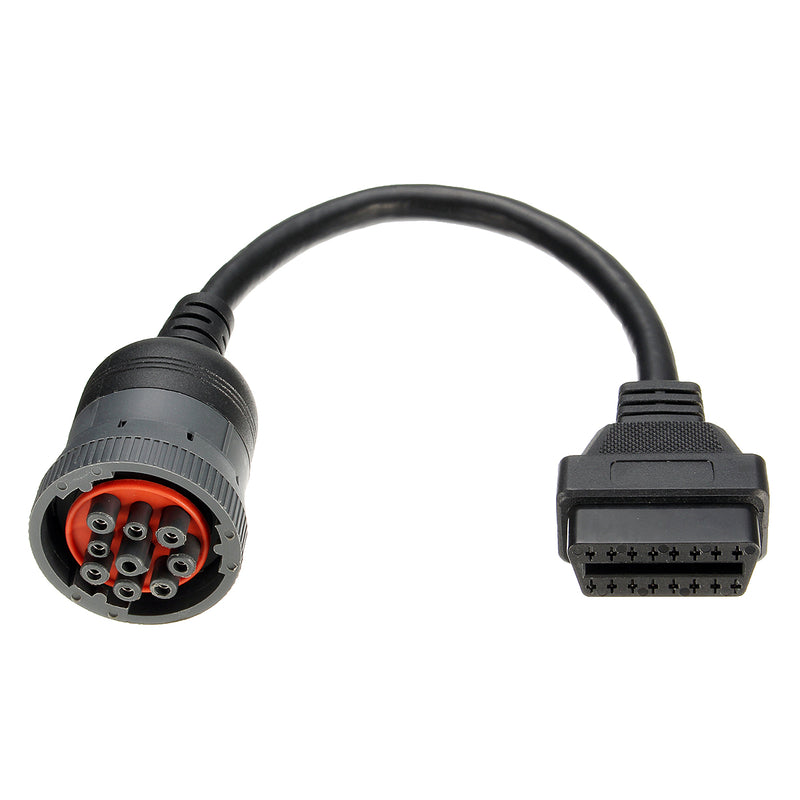

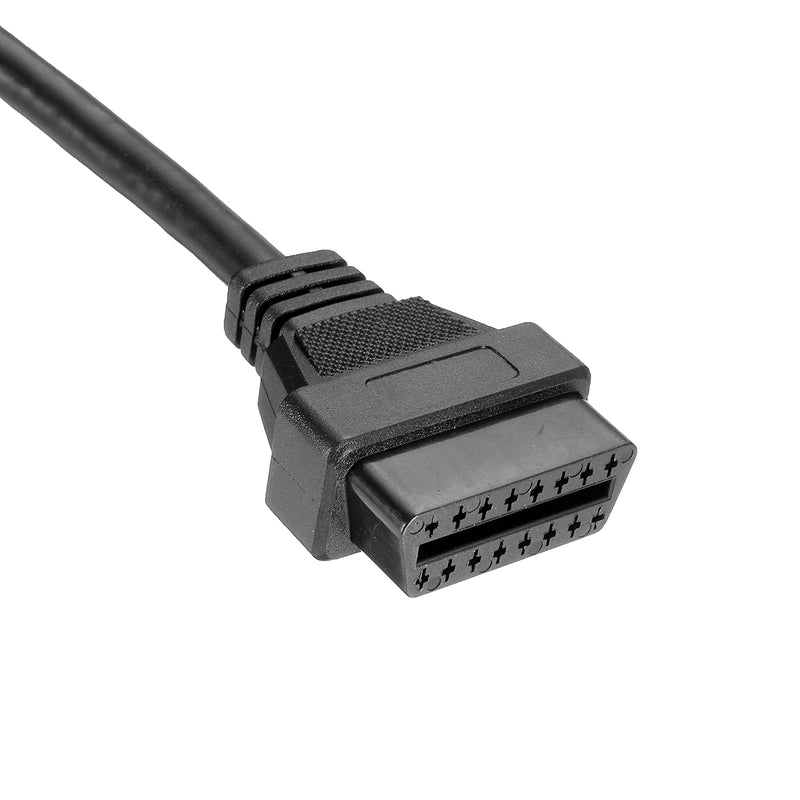

1x Female 16pin to J1939 9pin Truck Cable
Applications:
J1939 CAN BUS diagnostic unit (for trucks);
J1939 body builder CAN bus monitor (for trucks);
J1939 interface industrial engine display unit;
ISOBUS-control devices;
CAN bus Universal Controller;
CAN gateway and bus simulator;
Truck diagnostic tool/equipment/scanner, automotive diagnostic equipment, automotive scanner, automotive repairing equipment,
diagnostic code reader, fault code reader, car diagnostic scanner, diesel scanner, obd meter correction bit, car maintenance tools,
Automotive Digital Diagnostic Tools, Diagnostic tool, Auto code reader, code reading tester, garage diagnostic equipment, car
fault-finding tool, obd meter correction bit, car maintenance tools, Automotive Digital Diagnostic Tools, Auto code
reader, code reading tester
Notice:
1. On trucks/vehicles’ socket, the manufacturers design port H and port J for themselves.So we set pin H and Pin I Null, usually they
are not useful. Here Pin I is for port J on trucks/vehicles.
2. Pin B is Power cable. The output is 12V 24V or others, which depends on your vehicles’ power output.So please make sure that
your devices support your vehicles’ voltage.For example, if your vehicle’s voltage is 24V, your GPS tracker or other devices should support 24V too.
3. Manual measuring, please allow 1 ~ 2 cm error,thank you.
4. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style
is the same as shown in the pictures.Please understand, thank you!
