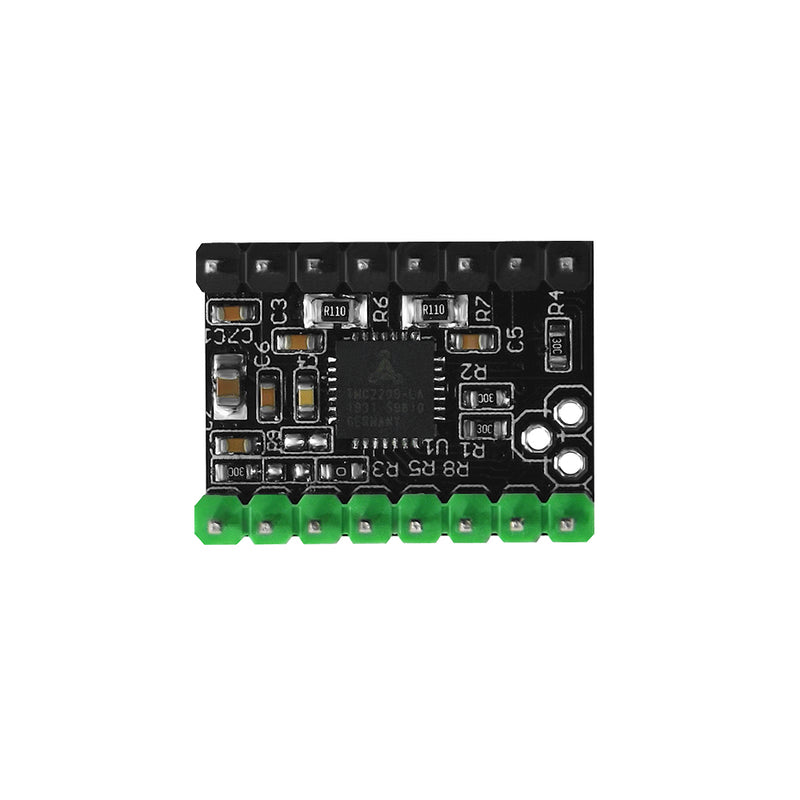

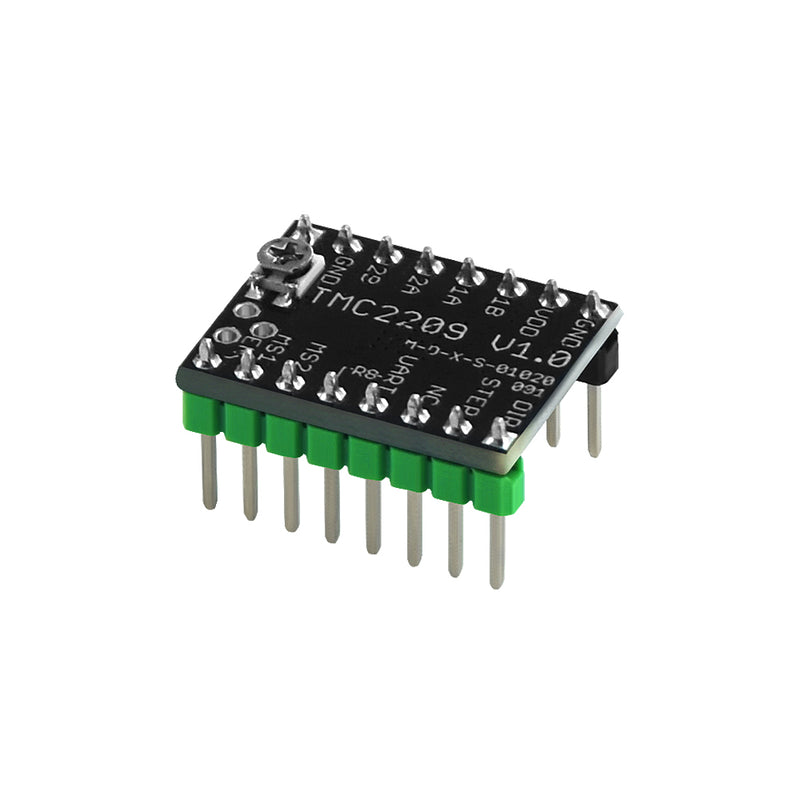

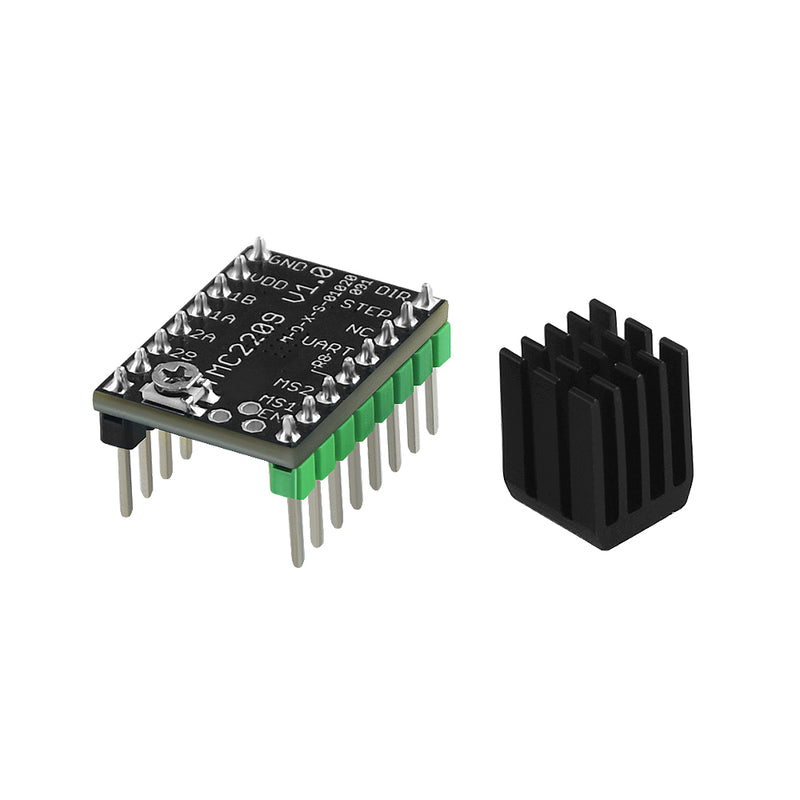

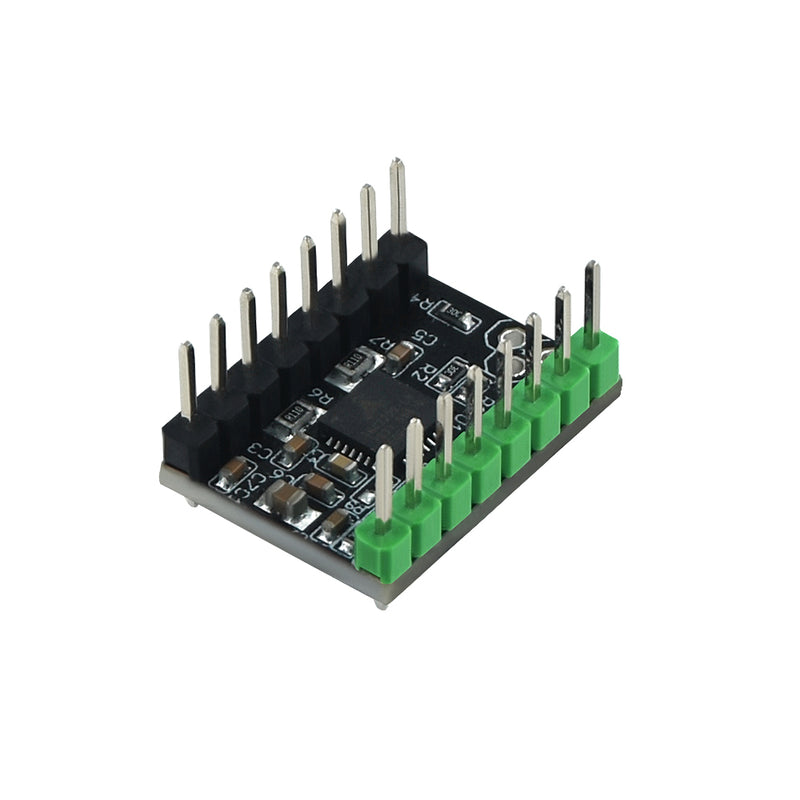

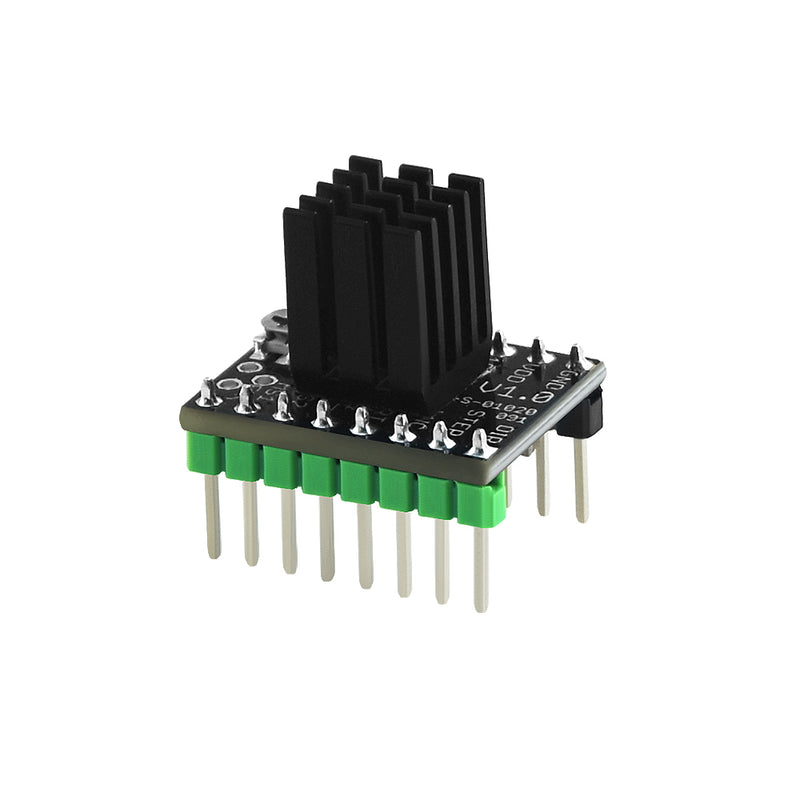

TWO TREES 5 Pcs TMC2209 V1.0 Stepper Motor Driver in-line Stepper Motor Driver Board Ultra Quiet Larger Driver Current with Heat Sinks for 3D Printer MKS Gen L V1.0 /MKS SGen L/SKR V1.3
Save 0
SKU: U2I-BG-1624540
Share this product
Description
Features:
- Excellent Mute Effect, Can 16 Microstep to 256 subdivisions - Larger Driver Current, maximum current up to 2.5A and stable printing current up to 1.8A - Compared with Other TMC Drivers, heat Efficiencyis lower and better heat dissipation - Support UART, Perfectly fits MKS SGEN-L
DIR/STEP mode:
Under Normal Mode, directly adjust the microsteps by jumper caps and adjust driver current by knob on the PCB Calculation formula: I=Vref Maximum Current is up to 2.5A. Stable current recommended to lower than 1.8A
UART mode:
Hardware is connected to SGEN-L directly,configure hardwares by jumper caps, which doesn't need jumper required. The UART pin on the driver and it site pin has been connected by a resistor R8. You can insert MKS TMC2209 onto MKS SGEN-L directly Using other brands of motherboards requires hardware modification according to the motherboard itself In the UART mode , insert the jumper caps onto the UART pin areas, and pull out all other jumper caps for normal operation
Package Included: 5* TMC2209 Drivers
