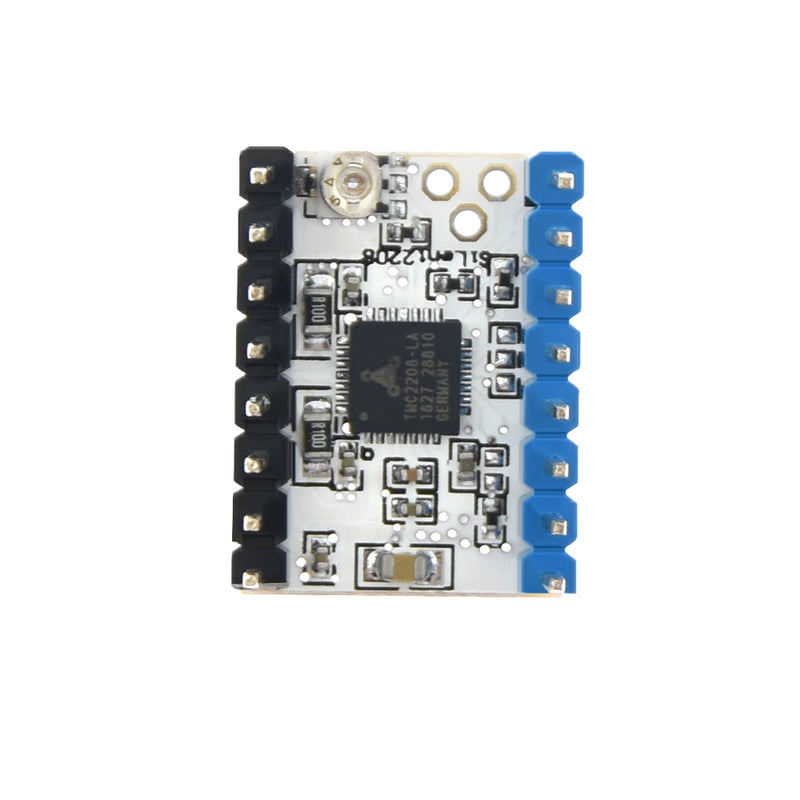

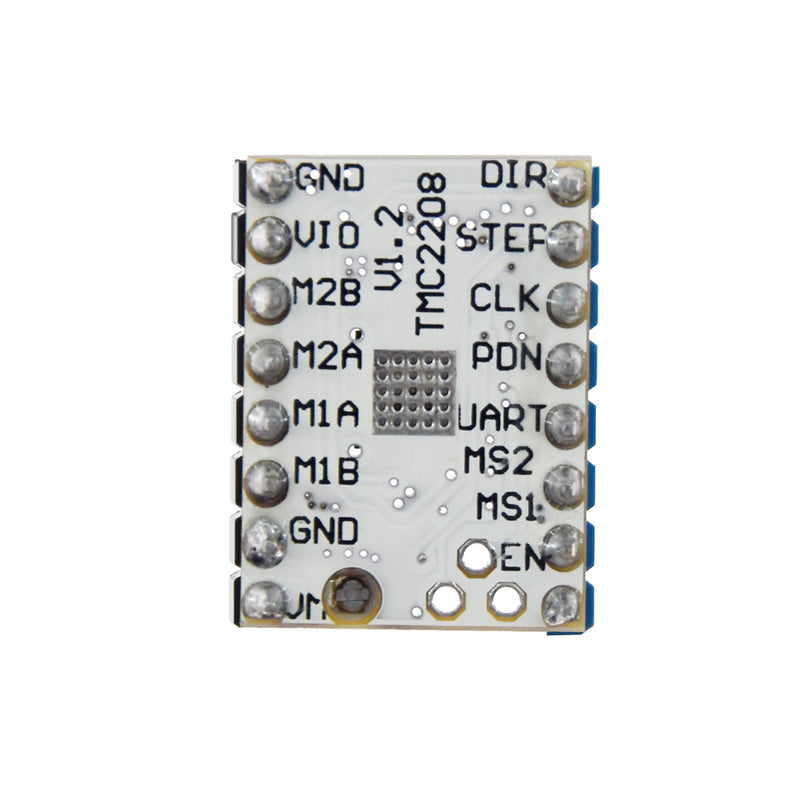

TWO TREES 5Pcs TMC2208 V1.2 Stepper Motor Driver Board Stepstick Super Quiet with Heatsink for 3D Printers
Save 0
SKU: U2I-BG-1624517
Share this product
Description
Description:
TMC2208 V1.2 Single-axis Stepper Motor Driver Chip Power Tube Built-in Drive Current 1.4A,Peak Current 2A,Voltage Range 4.75V-36V,256 subdivision With patented technology spreadCycle ™ high chopper frequency, dcStep ™, stallGuard2 ™ stall detection technology, CoolStep ™ current dynamic adjustment technology Can save 70% of the energy, StealthChop mute technology Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control As stealthChop fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input. Could Replace TMC2100,Lower Heat
Specifications:
Configuration:CFG or UART Microsteps: Up to 1/256 MicroPlyer: 1/256 Logic Voltage VI0: 3-5V Motor Voltage : 5.5-36V Motor Phase Current: 1.2A RMS, 2.0A Peak
Package Included:
5* TMC2208 V1.2
