Name: TWO TREES Touch Auto Leveling Sensor Auto Bed Leveling Sensor BLTouch For 3D Printers
Brand: Banggood
SKU: U2I-BG-1625266
Price: 5,774.00 INR
Availability: InStock

SKU: U2I-BG-1625266

Share this product

Overall:

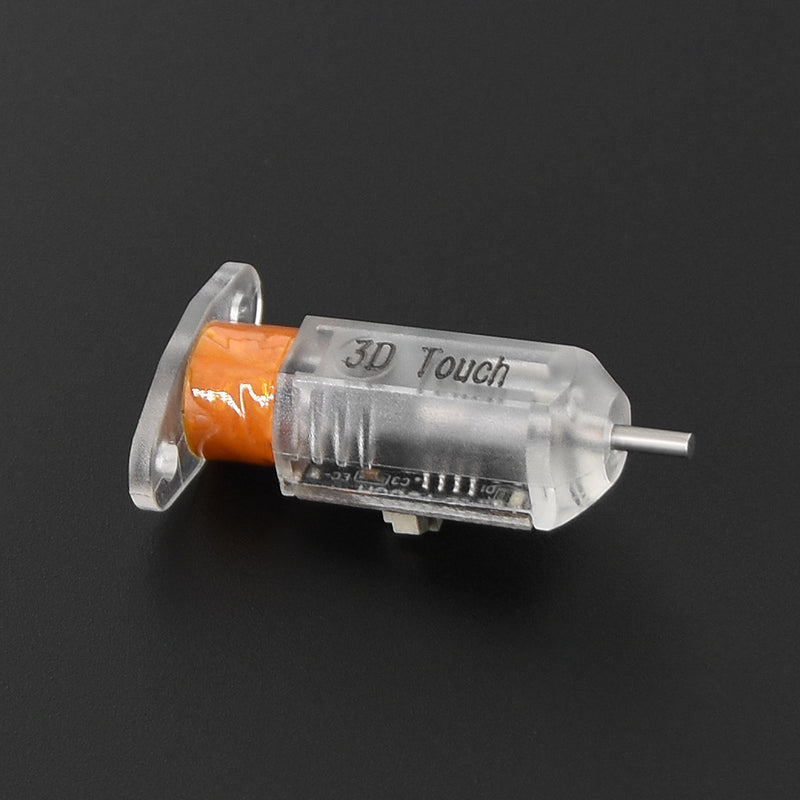

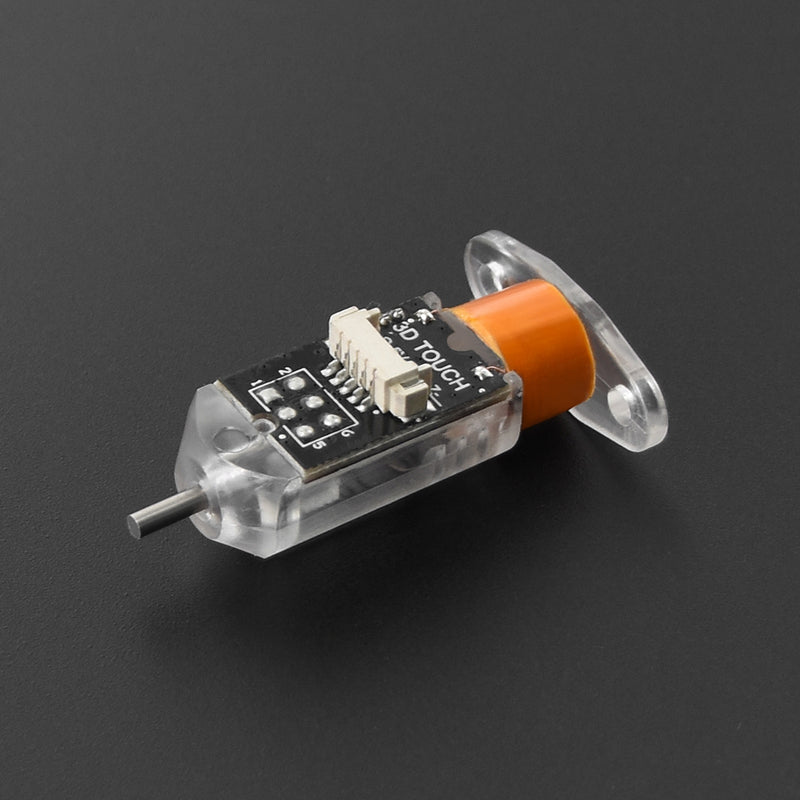

The Auto Leveling sensor is a device that uses the hall effect to achieve Leveling.
The Position of the point can be obtained by touching the point on the heated bed and then compensated by adjusting the Z axis height during printing
Printing can also be achieved even though the heated bed is not flat

Specifications:

Voltage: 5V
Current: 15mA
Max Current(Peak): 300mA
Shell Material: PC
Cable Length: short 200mm long 1000mm

Wiring:

3Pin:
Green:: -GND
Red: +5V
Orange: Signal Cable
2Pin:
Black: -,GND
White:Zmin

Package Included:

1* Leveling Sensor
1* 200mm Cable
1* 1000mm Cable
2* M3 nuts and screws
2* XH2.54mm Terminals
1* Coiling Terminal
