Overview

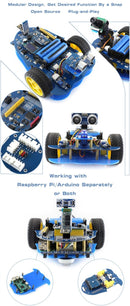

AlphaBot is a robotic development platform compatible with Raspberry Pi and Arduino. It consists of the AlphaBot mainboard, the mobile chassis, and everything required to get it moving.
Just connecting a controller board, Raspberry Pi or Arduino, and combined with our open source example code, now it's all ready to start your robotic exploration: line tracking, obstacle avoidance, video monitoring, WiFi/Bluetooth/ZigBee/Infrared remote control, etc.
Raspberry Pi or Arduino is NOT included in the price, if you don't have one in hand, these all-in-one kits are recommended: AlphaBot-Ar-Basic, AlphaBot-Ar-Bluetooth, AlphaBot-Pi
AlphaBot Features
1. Raspberry Pi/Arduino interfaces, works with either one separately, or both
2. Arduino extend header, supports Arduino shields
3. Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.
4. LM298P motor driver with diode protection circuit, more safety
5. LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino
6. TLC1543 AD acquisition chip, allows the Pi to use analog sensors
Package Contents
1. AlphaBot mainboard x1
2. Tracker Sensor x1
3. Photo Interrupter Sensor x2
4. Infrared Proximity Sensor x2
5. Motor with gearbox 2PCS x1
6. AlphaBot wheel 2PCS x1
7. AlphaBot acrylic chassis x1
8. Motor mounting plate 4PCS x1
9. Omni-direction wheel x1
10. 20-slots encoder disk 2PCS x1
11. IR remote controller x1
12. XH2.54 4cm 4Pin 2PCS x1
13. XH2.54 4cm 3Pin 2PCS x1
14. XH2.54 4cm 7Pin x1
15. AlphaBot screws x1
