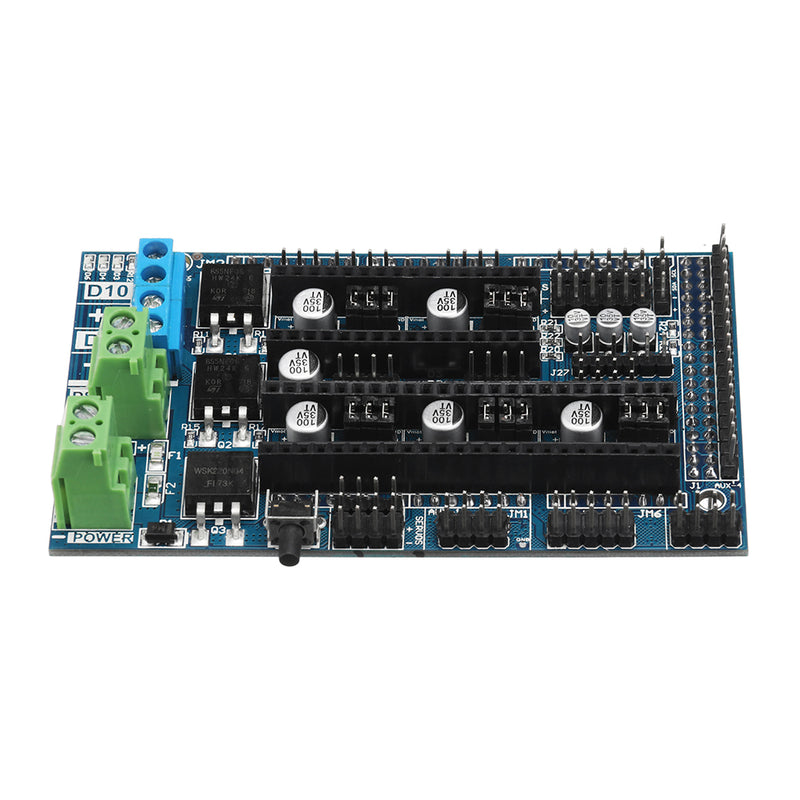

Ramps 1.6 Board Parameters:
- Size: 101.5 * 60.5mm
- Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously)
- Input voltage: 12V
- Power: 200W
- Patch MOS tube: B55NF06

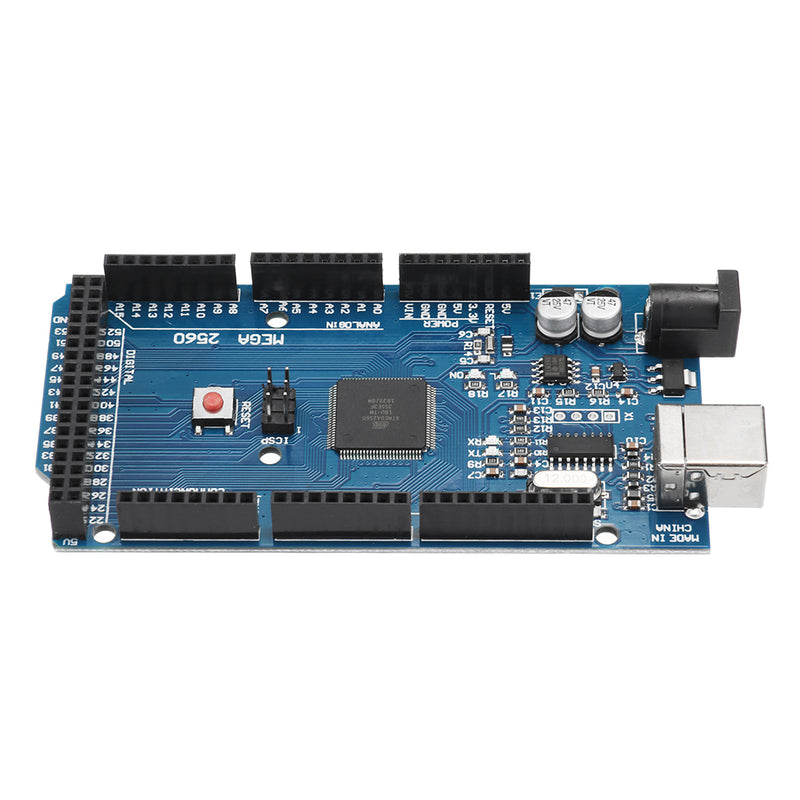

Mega2560 R3 Parameters:
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 14 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 256 KB of which 4KB used by bootloader
- SRAM: 8KB
- EEPROM: 4KB

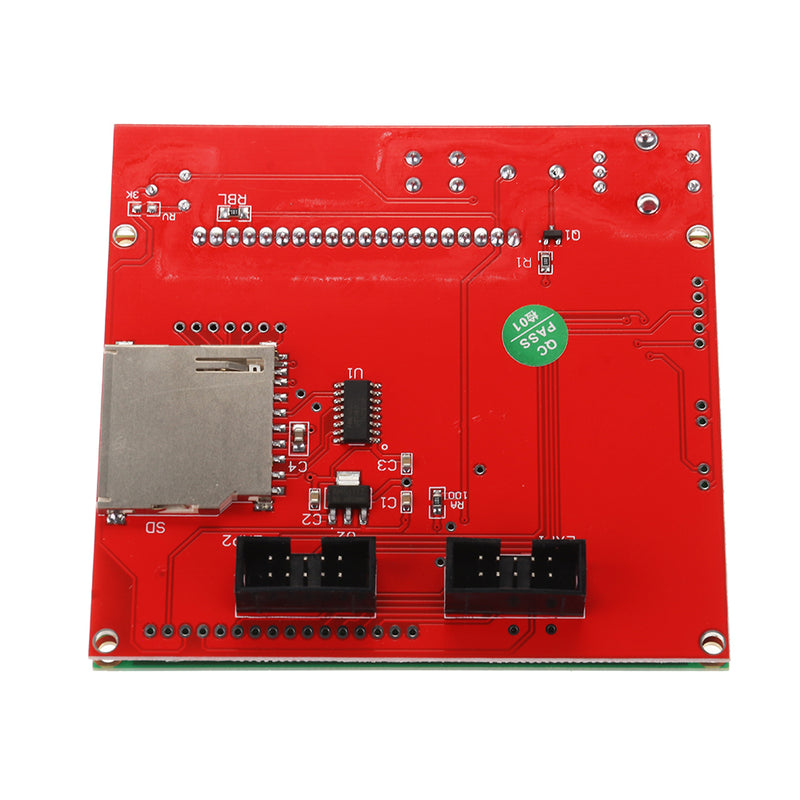

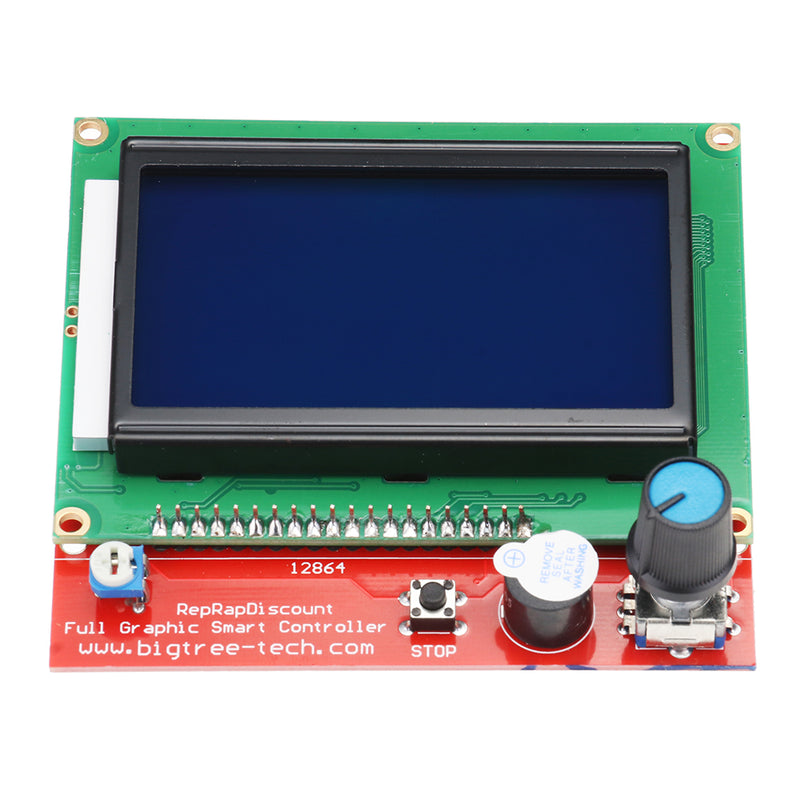

About LCD 12864:
- 128X64 Character LCD Display Module Blue Backligh
- Usable: 3D Printer
Package Included:
1 x Ramps 1.6 Board
1 x Mega2560 R3 Board
1 x LCD 12864

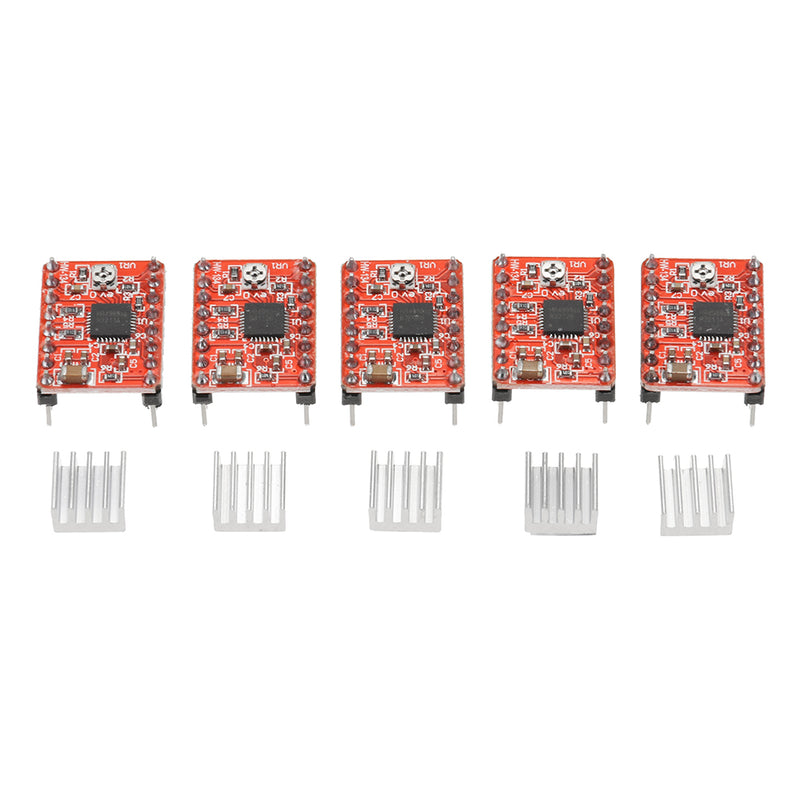

5 x A4988 Driver(color send randomly)
