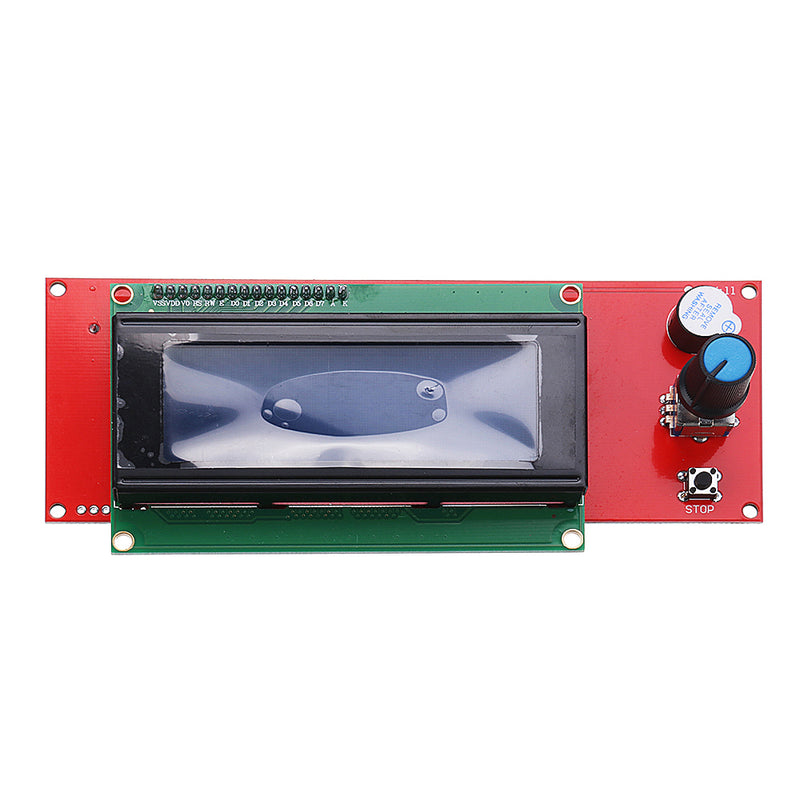

About LCD 2004 Display:
- 2004 204 20X4 Character LCD Display Module Blue Backlight.
- The module is a low-power consumption character LCD Module with a built-in controller. The module can be easily interfaced with a MCU.
- Model: 2004
- Lattice: 20 x4
- Blue backlight
- Fully assembled and tested Serial LCD 20x4 Module
- Display Format: 20 Characters x 4 lines
- Supply voltage: 5V
- Size: approx. 9.8cm x 6cm x 1.2cm

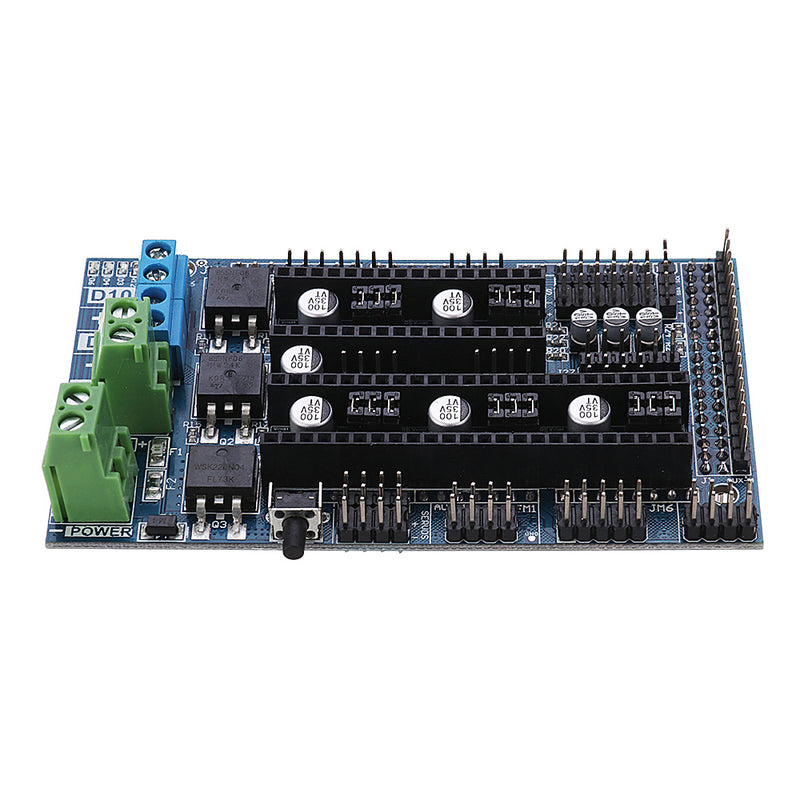

Ramps 1.6 Board Parameters:
- Size: 101.5 * 60.5mm
- Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously)
- Input voltage: 12V
- Power: 200W
- Patch MOS tube: B55NF06

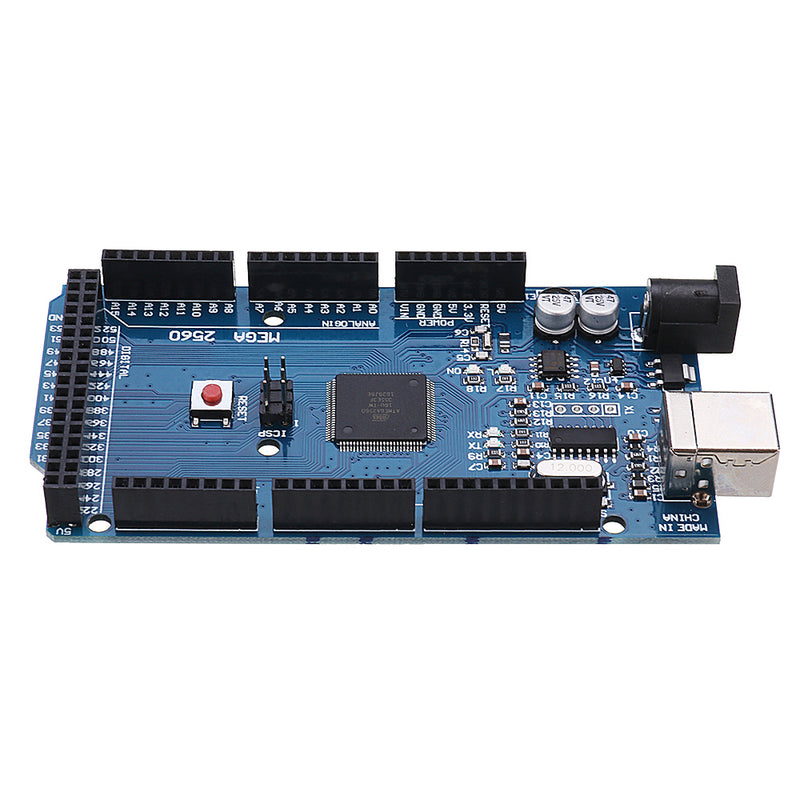

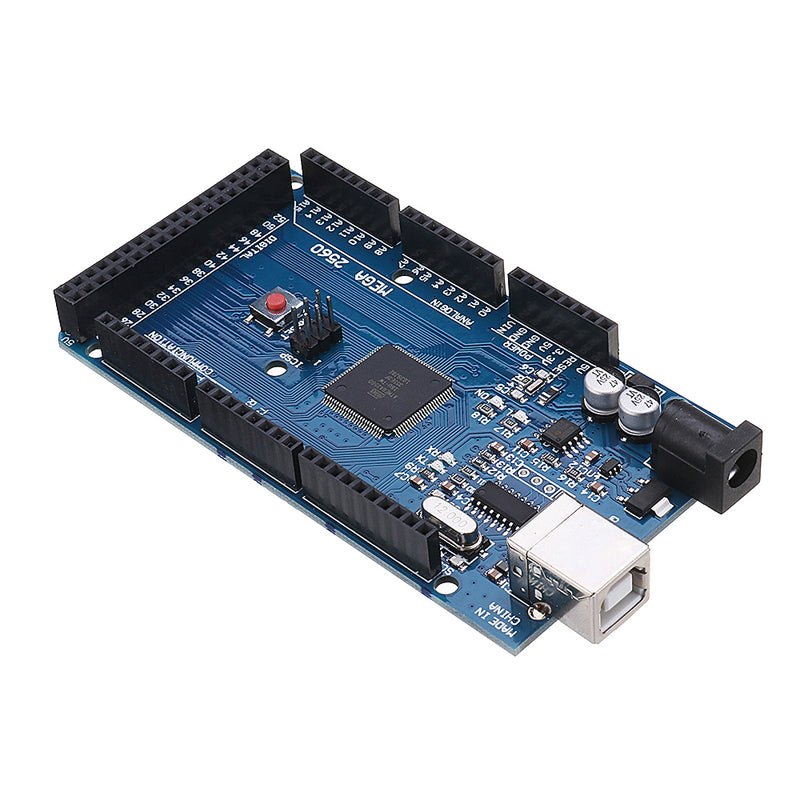

Mega2560 R3 Parameters:
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 14 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 256 KB of which 4KB used by bootloader
- SRAM: 8KB
- EEPROM: 4KB
Package Included:1 x LCD 2004 Display
1 x Mega2560 R3 Board
1 x Ramps 1.6 Board
5 x DRV8825
1 x USB Cable
