Note: This product does not contain any electronic ink screen module.
Features:
Based on standard interface design, compatible and directly insertable Raspberry Pi 2 generation B/3 generation B/Zero/Zero W
Introduce SPI control interface, can access Raspberry//Nucleo and other main control boards
Provide a complete supporting information manual (sample programs such as Raspberry//STM32)
Parameter:
Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Dimensions: 65mm × 30.2mm
Fixed hole diameter: 3.0mm
Interface Description:
VCC: 3.3V
GND : GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS : SPI Chip Select Pin (Active Low)
DC: Data/command control pin (high level means data, low level means command)
RST : External reset pin (low reset)
BUSY: Busy status output pin (low level means busy)Information includes:
User manual
Schematic
Sample program
Development materials

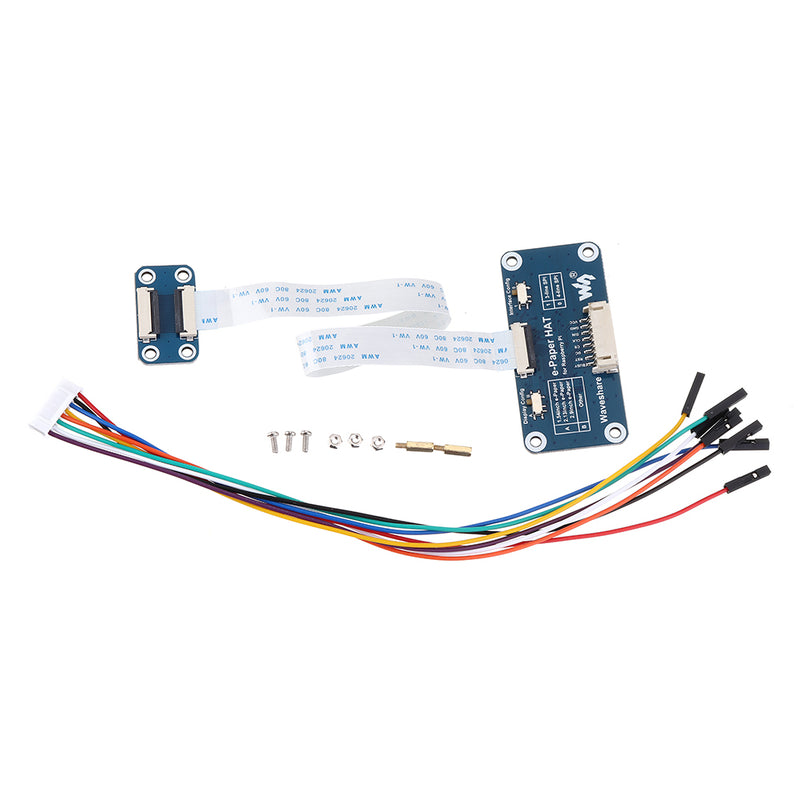

Package includes:1 x e-Paper Driver HAT
1 x RPi copper column package (2PCS set)

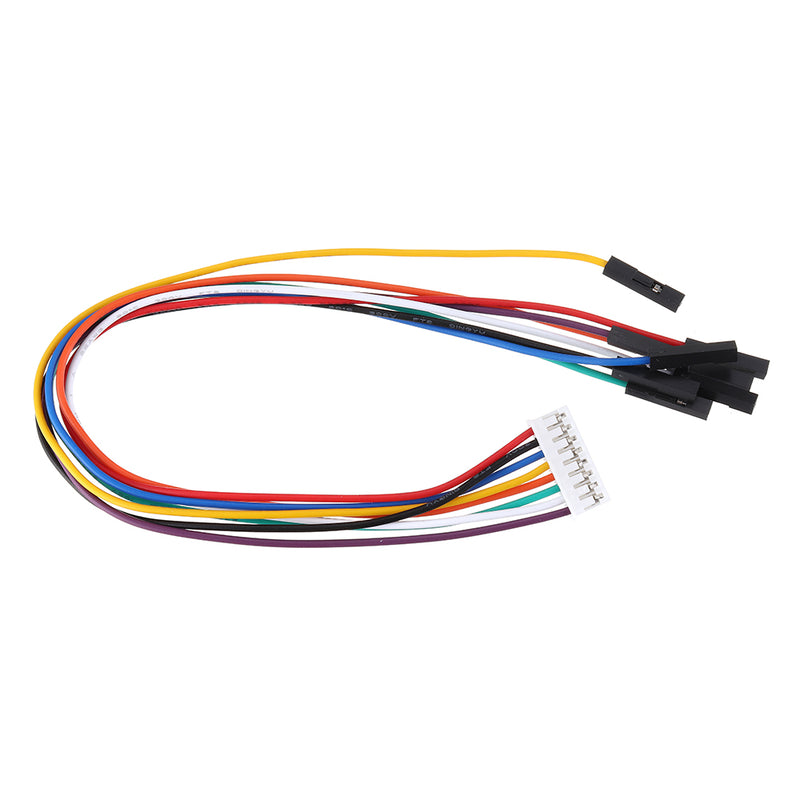

1 x PH2.0 8PIN cable 20cm
