Note: This product does not contain any electronic ink screen.
Product introduction:
The electronic ink screen network driver board can obtain picture information from a PC or a smart phone via WiFi, and display the information through an electronic ink screen.
Support for development, can be used like other boards.
Features:
Onboard ESP8266, support for development
Provide HTML host computer program factory built-in electronic ink screen driver (open source)
Support Floyd-Steinberg dithering algorithm to get more color combinations and better shadow rendering of original images
Support a variety of common image formats (BMP, JPEG, GIF, PNG, etc.)
Easy to integrate into a variety of web applications
Provide a complete supporting information manual
Parameter:
WiFi standard: 802.11b/g/n
Communication interface: 3-wire SPI, 4-wire SPI (default)
Working voltage: 5V
Working current: 50mA ~ 100mA
Dimensions: 29.57mm x 48.26mm
Through hole diameter: 2.9mmInformation includes:
User manual
Schematic
Sample program
Development materials

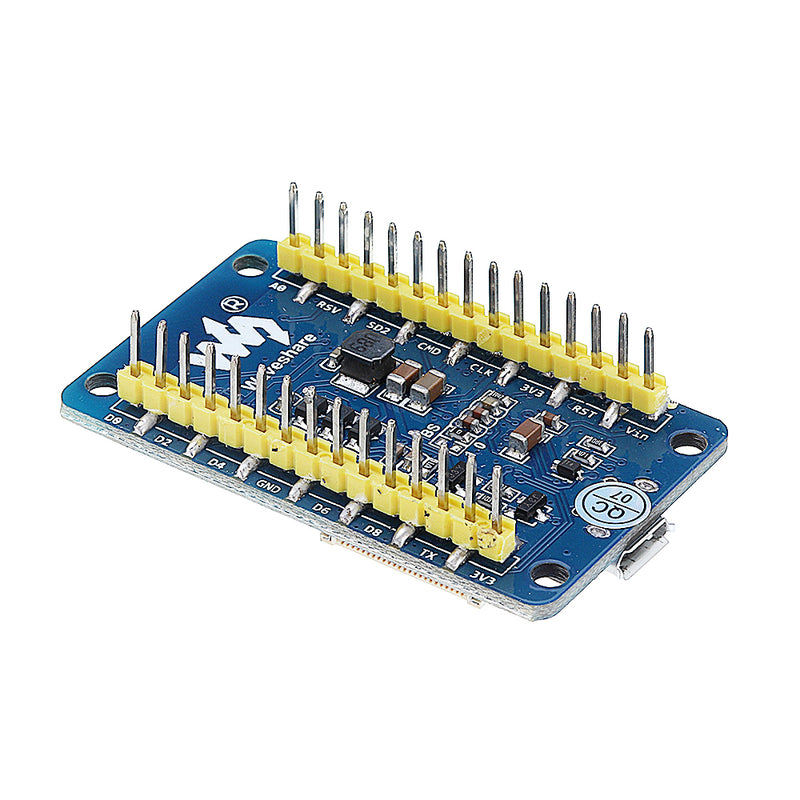

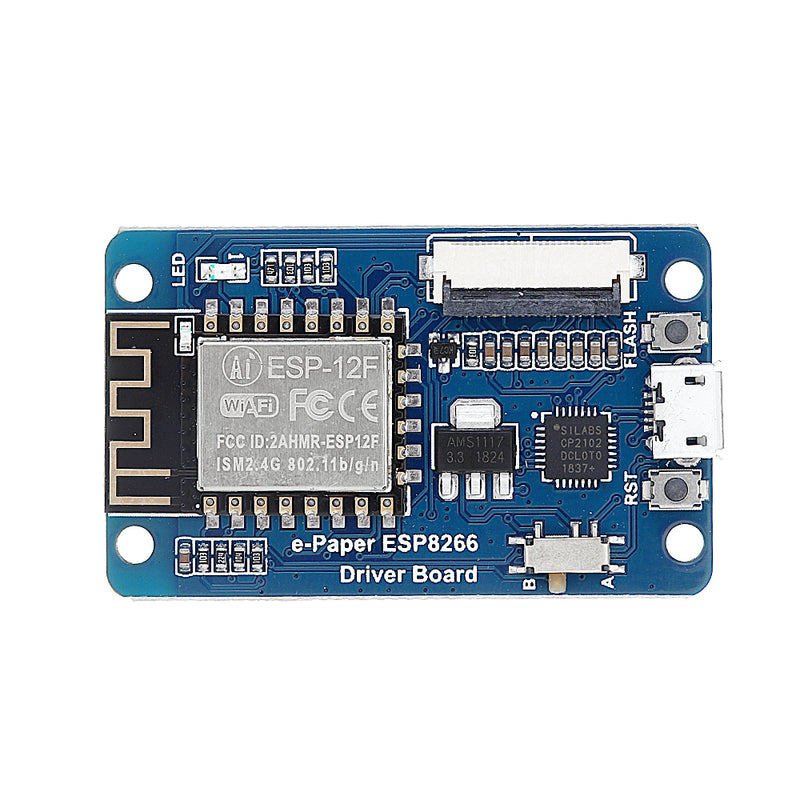

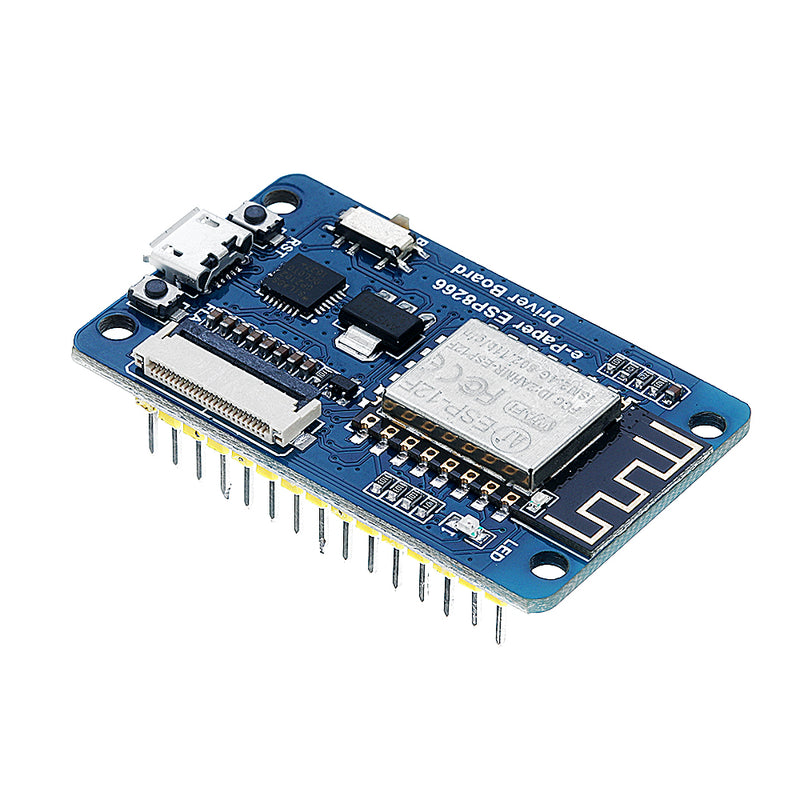

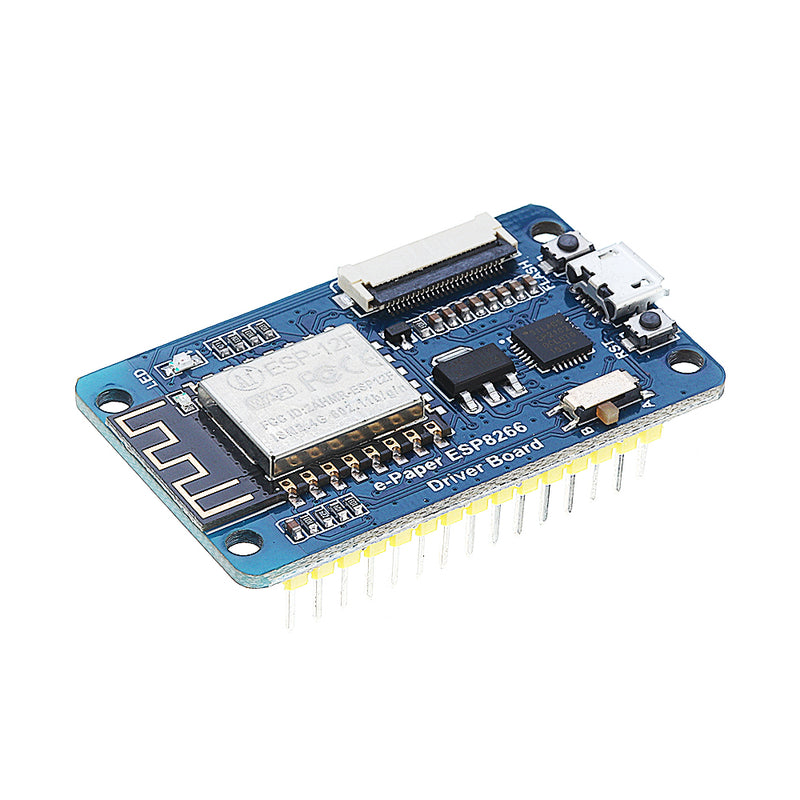

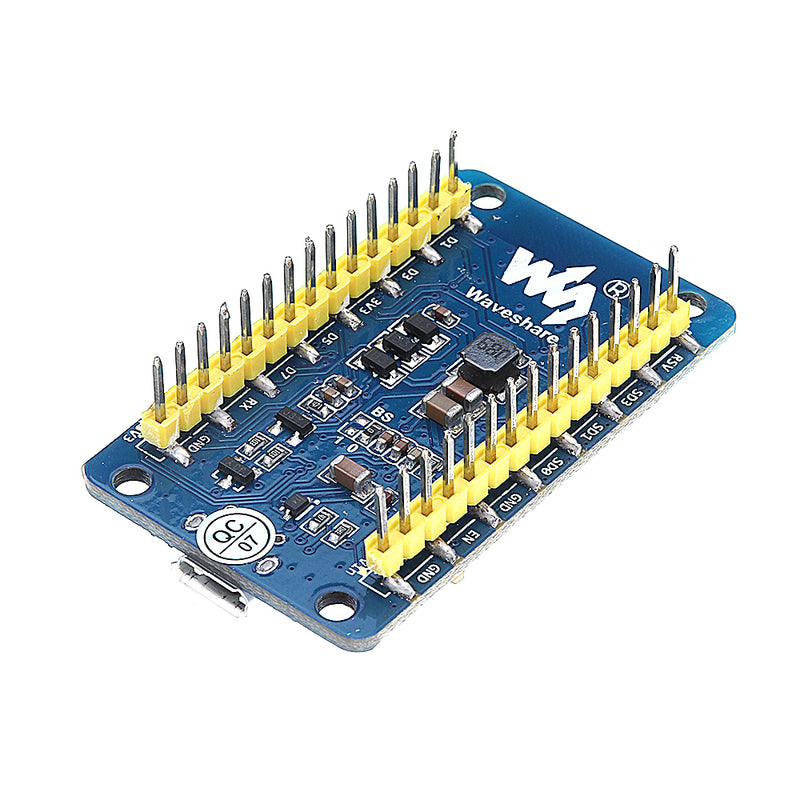

Package includes:1 x e-Paper ESP8266 Driver Board

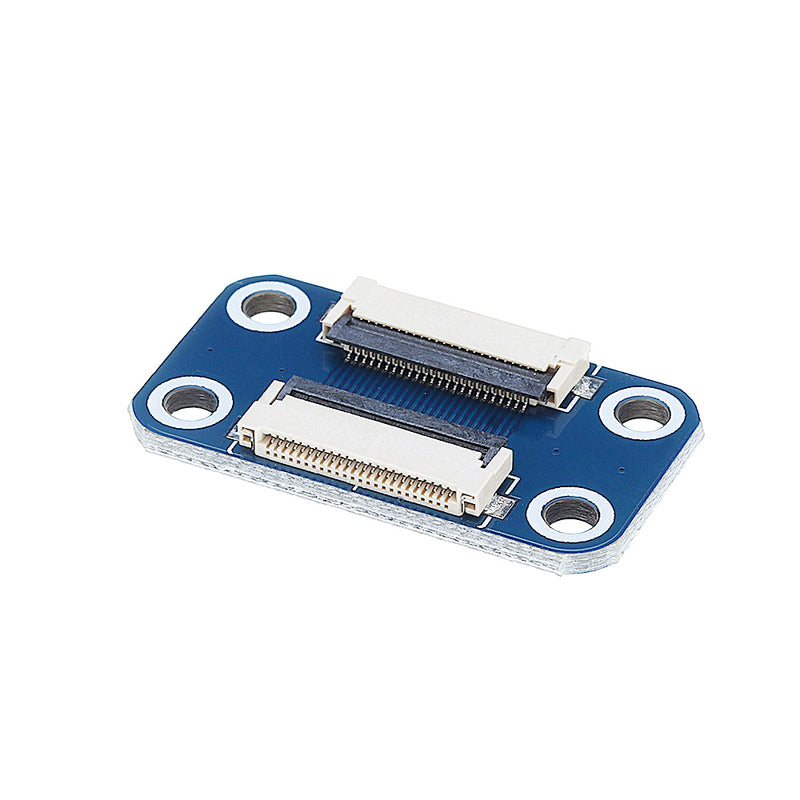

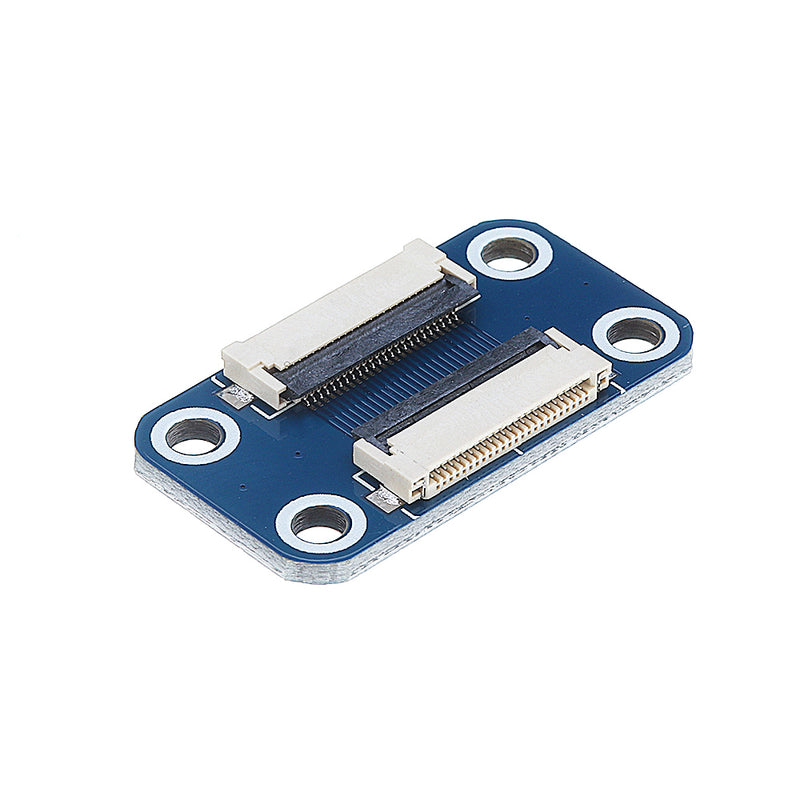

1 x e-Paper Adapter
1 x 24PIN FFC line
