Cable(2 PfG 1169) for Photovoltaic Equipment
FEATURE:
Brand: Pintech
Conductor: Stranded Tinned Copper
Insulation: Halogen Free Crosslinked Polyolefin
Sheath: Halogen Free Crosslinked Polyolefin
Nominal Cross-Section:2.5mm2
Rated Temperature: -40~+90℃
Rated Voltage DC: 1/1.8kV
Rated Voltage AC: 0.6kV
Rated Current: 33~57a
Weathering Resistance: Sun Res.
Burning Behavior: (IEC60332-1)

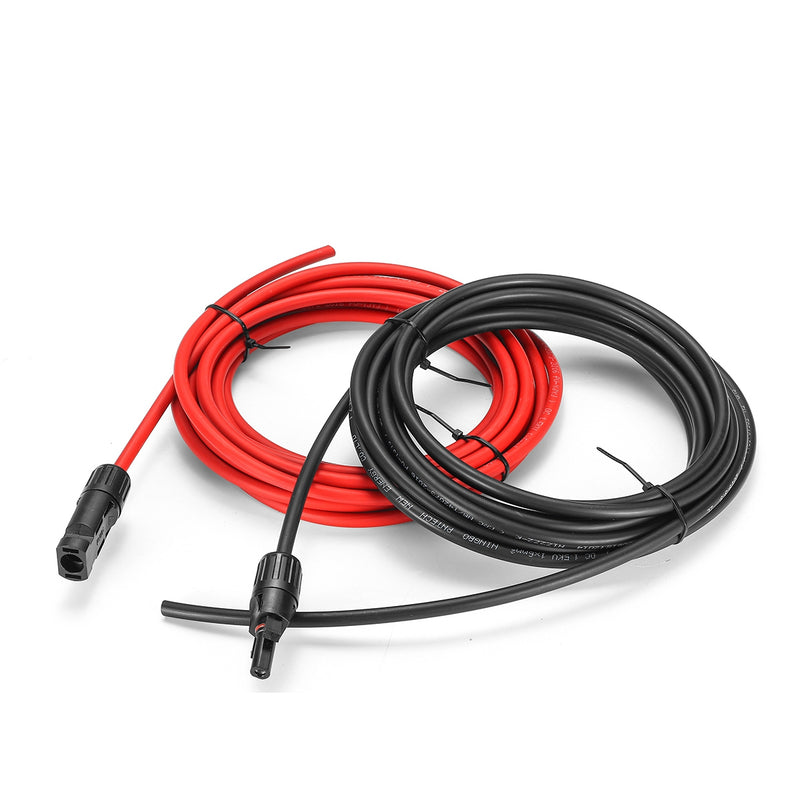

Black Cable MC4 Connector: Male
Red Cable MC4 Connector: Female
TECHNOLOGY PARAMETERS 0f 14AWG(2.5mm2):
Rated Temperature(℃) = -40~90
Rated Votage(AC/DC(kV)) = 0.6~1.0/1.8
Cable Core(NO.) = 1
Cross-Section Area (mm2) = 2.5
Cross-Section Area (AWG) = 14
Diameter Of Wires/ Number(NO./mm) = 51/0.25
Thickness Of The Insulation(mm) = ≥0.5
Thickness Of The Sheath(mm) = ≥0.5
Outer Dia.(mm) = 5.3±0.2
Conductor Resistance(20℃)(Ω/km) = ≤8.21
Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
