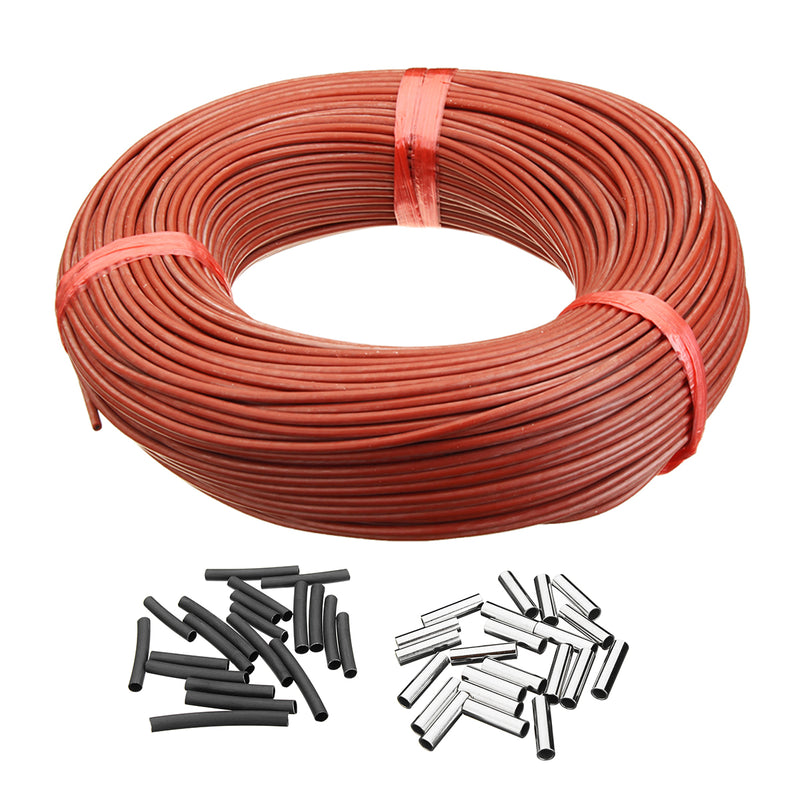

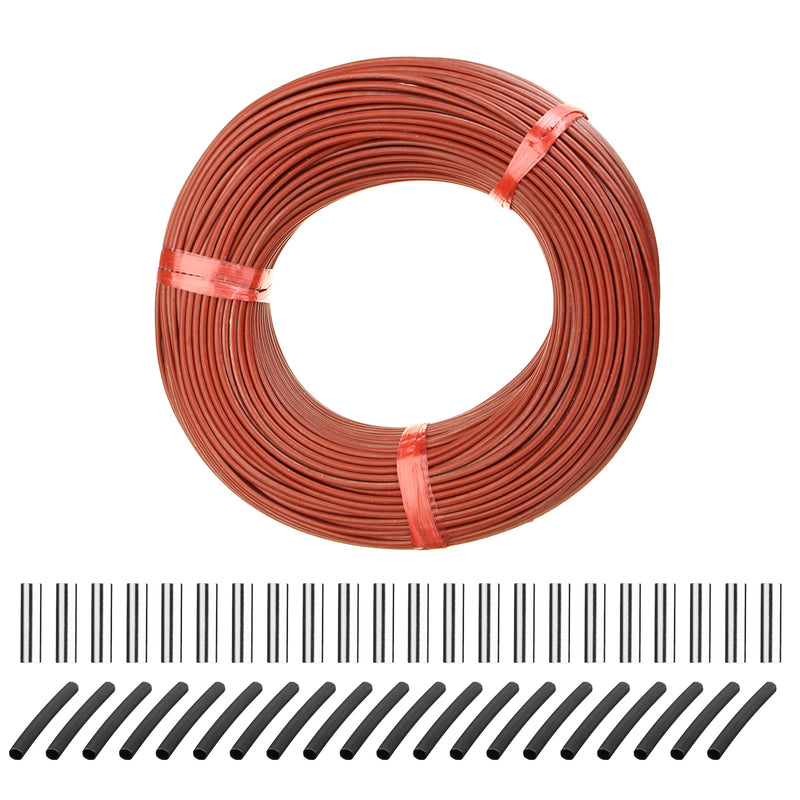

Package included:

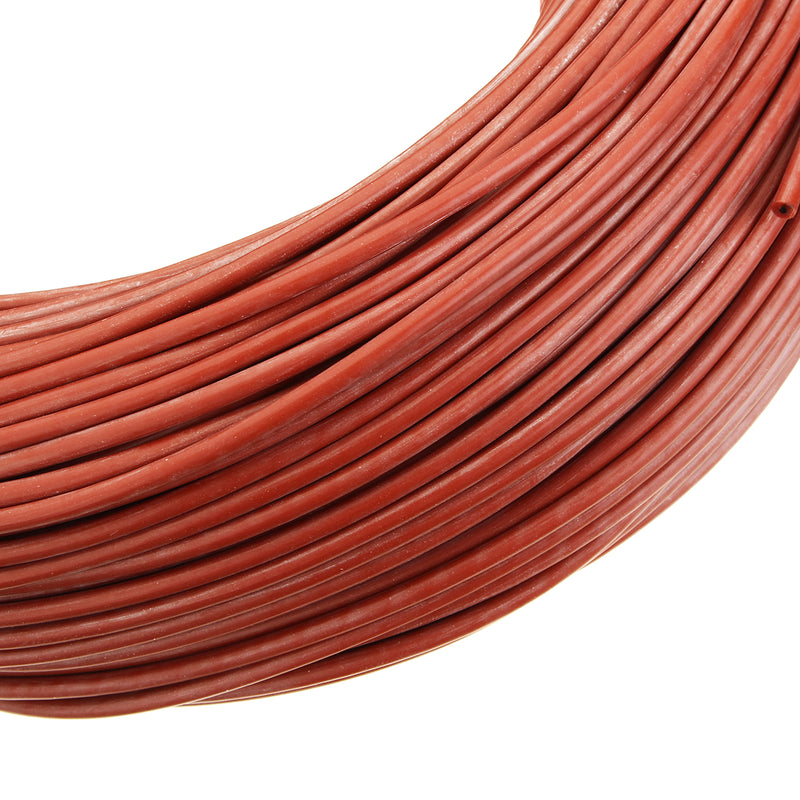

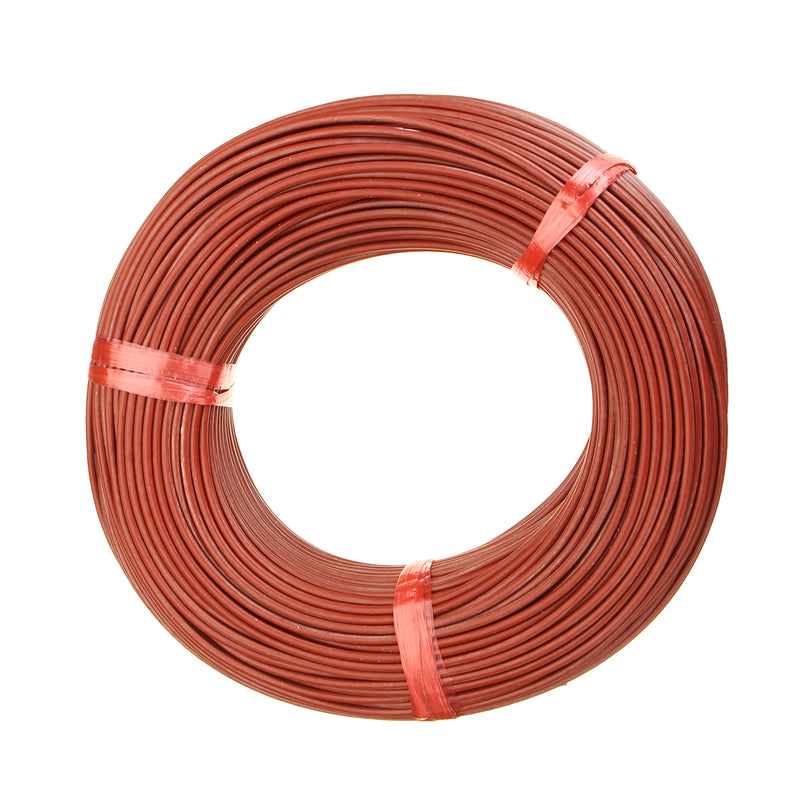

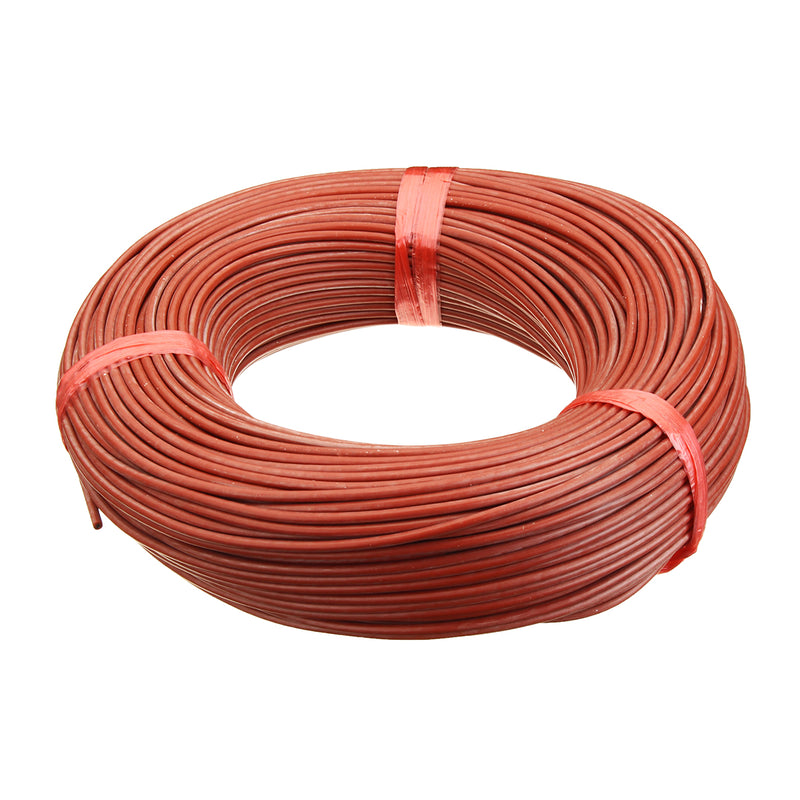

1x 100Meters 12K Floor Warm Heating Cable

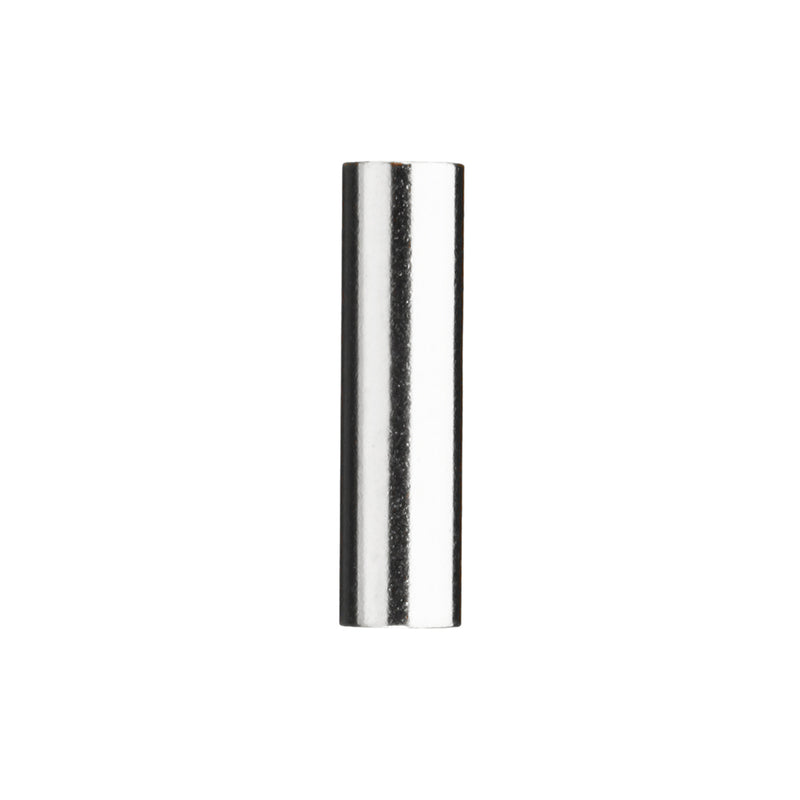

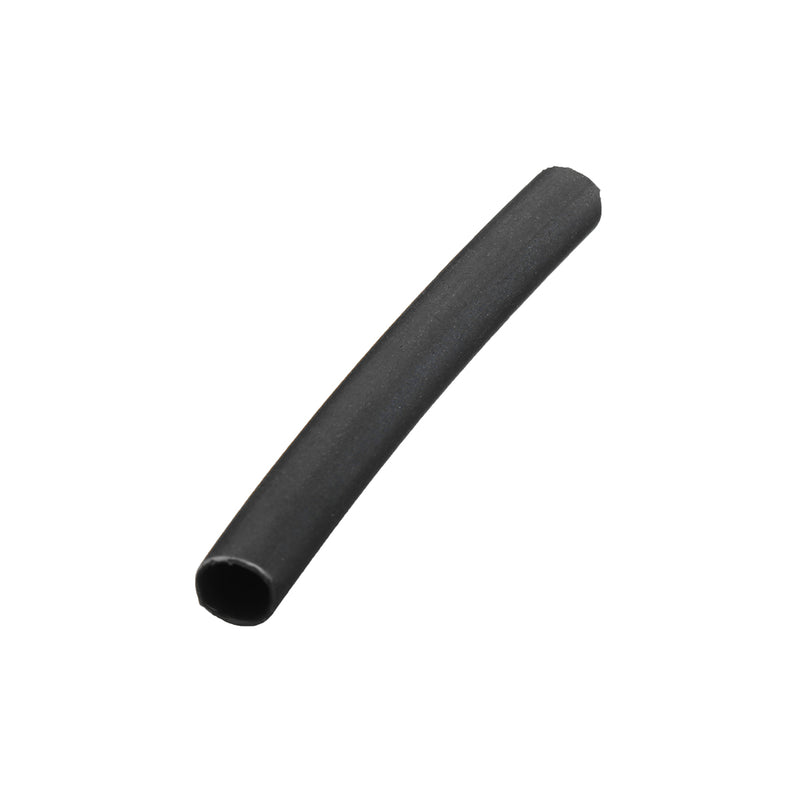

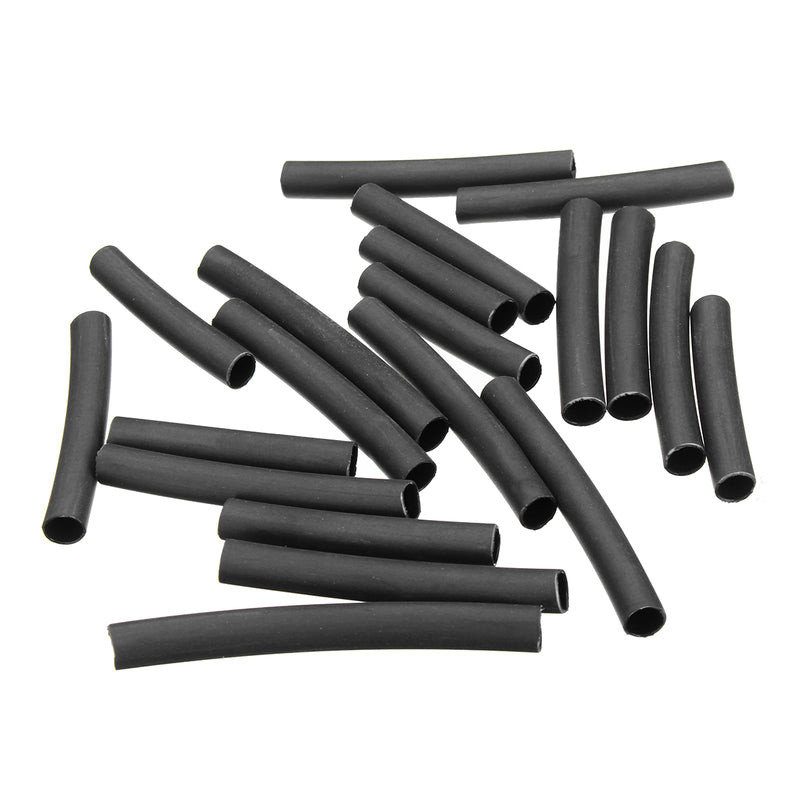

20set Tubes
Specifications:
Color: Red
Material: Carbon fiber

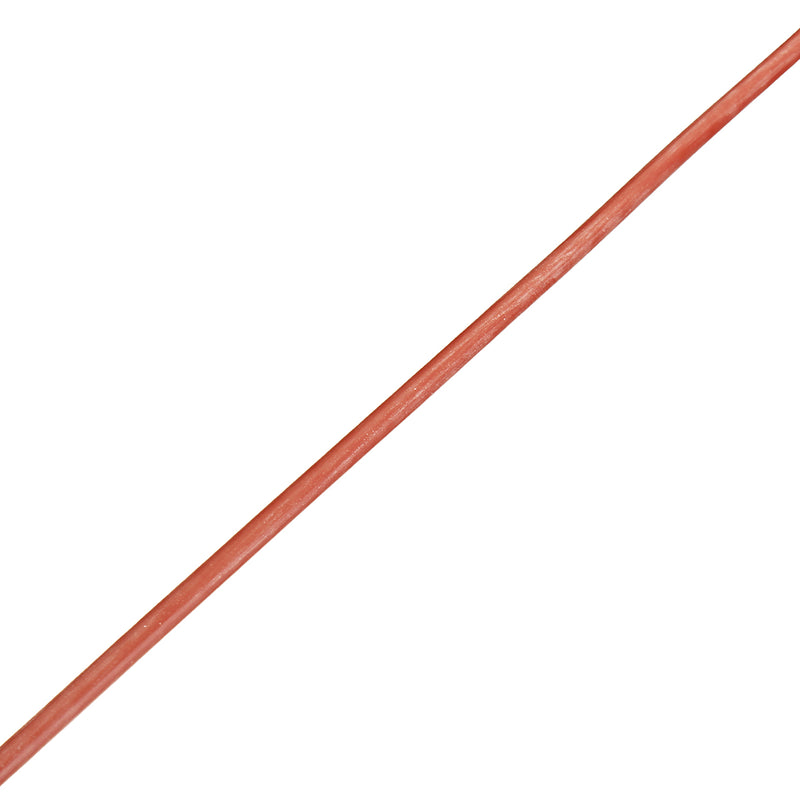

Product Name: Carbon fiber heating wire 100m
Insulating materials: Silicone rubber
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10% Ω / M
Heating conductor: 12K
High voltage test: 3000V
Leakage current: 0.05mA/m

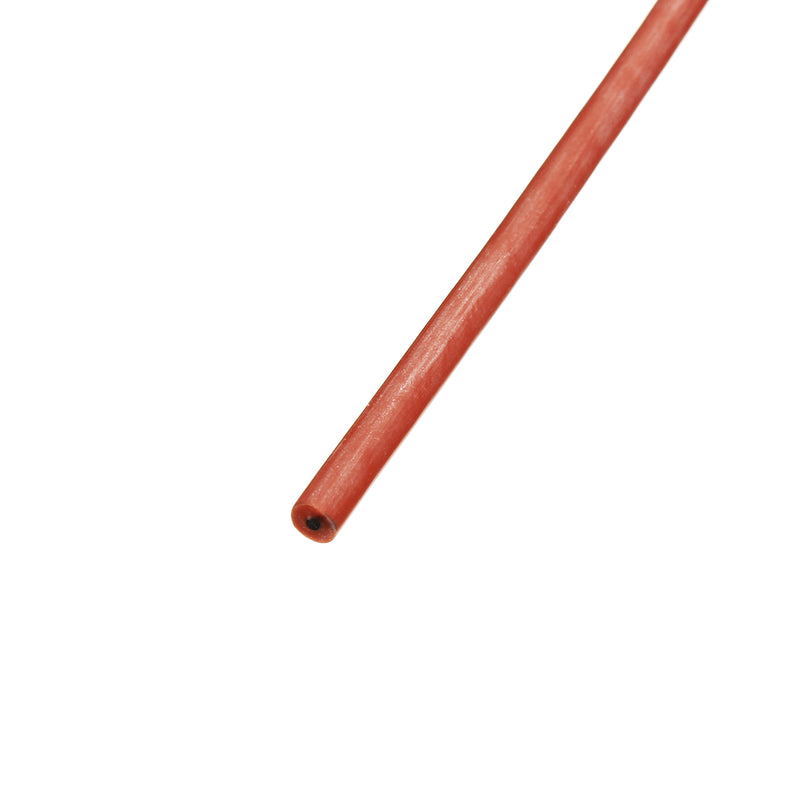

Diameter: 3 MM
Length: 100m/328FT
Conductor resistance: 33 Ω / M
Product Power Calculation:
Voltage * voltage / total resistance = power
For example: 12K carbon fiber, length of 10 meters
220V × 220V / (10 m x 33 Ohm) =150 watts
For example: 12K carbon fiber length of 15 meters
220V × 220V / (15 m x 33 Ohm) =100 watts
The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)
Features:
✔ Having good cold resistance and excellent medical rationalization.
✔ Excellent insulation.New infrared floor heating, make the temperature uniformity, promote blood circulation.
✔ With excellent heat resistance. Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.
✔ The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.
And etc...
✔ You can manually make heating equipment, electric blankets, car seat heater, heating appliances, animal heating system, heating system, etc.
✔ Suitable for farms, pig insulation board, jade bed, electric blanket, electric heating towel rack, footbath, rice cookers, pet pad, electric warm clothing, piping warm, ect.
