Description:
MC4X-B2 Male and Female MC4 Solar Panel Connector Used for Solar Cable Suitable Cable Cross Sections 2.5~6.0mm²
Features:
Simple on-site processing.
Mating safety provided by keyed housings.
Mutiple plugging and unplugging cycles.
Accomodates PV cable with deferent insulation diamaters.
High current carrying capacity.
TUV approved.
Specification:
Product No.: MC4X-B2
Rated Voltage: TUV 1000V DC / UL 600V DC
Rating Current: 20A~25A
Suitable cable cross sections: 2.5mm2~6.0mm2 / 14AWG~10AWG
Pin dimension: 4.0mm
Proof voltage: DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection IP: IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature Range: -40~+85℃
Flame Class: UL94V - 0
Package included:1 x MC4X-B2 Male and Female MC4 Solar Panel Connector

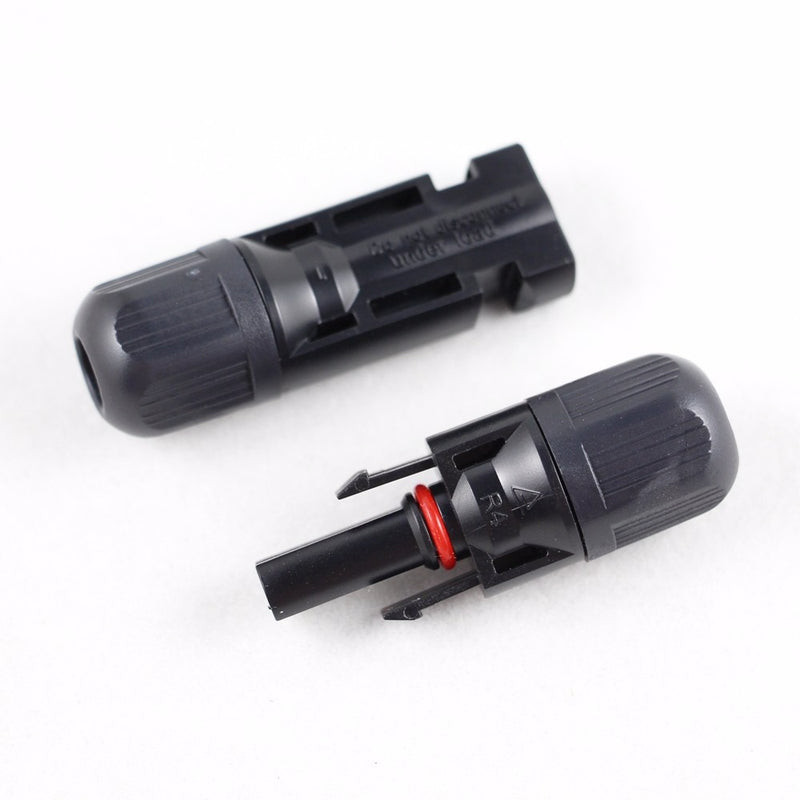

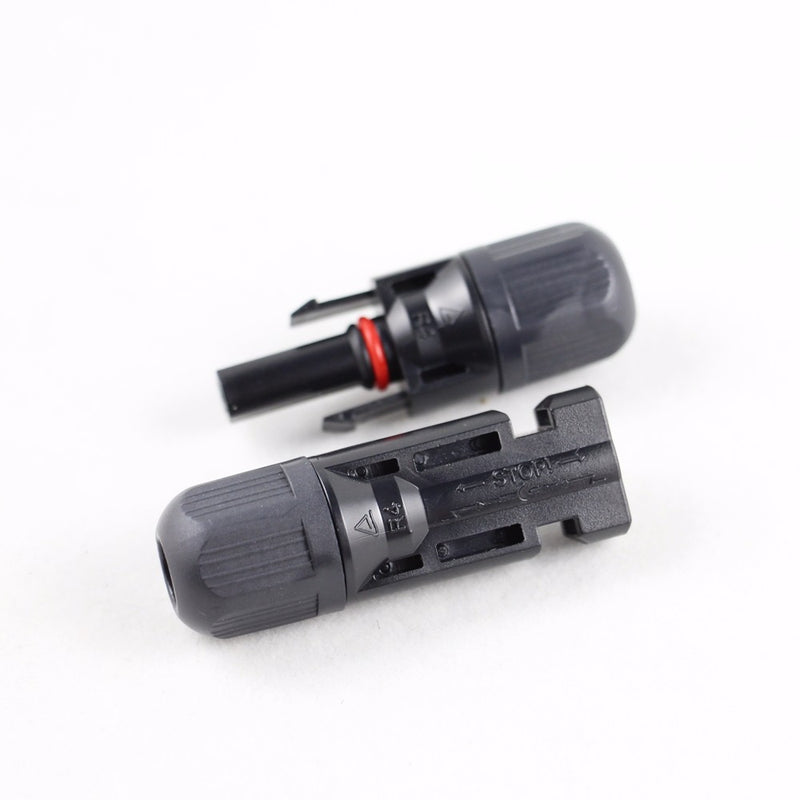

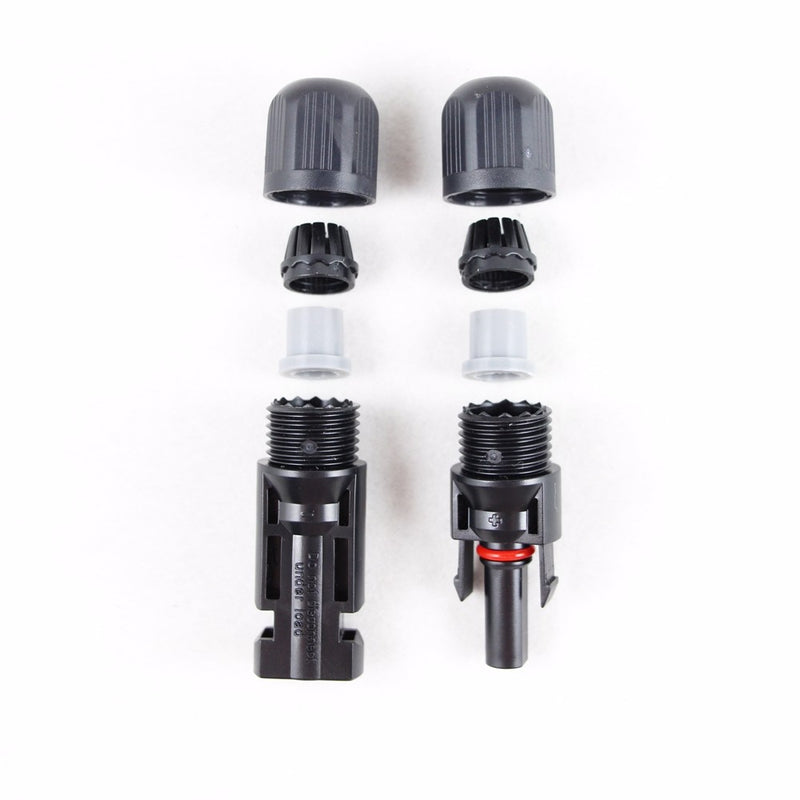

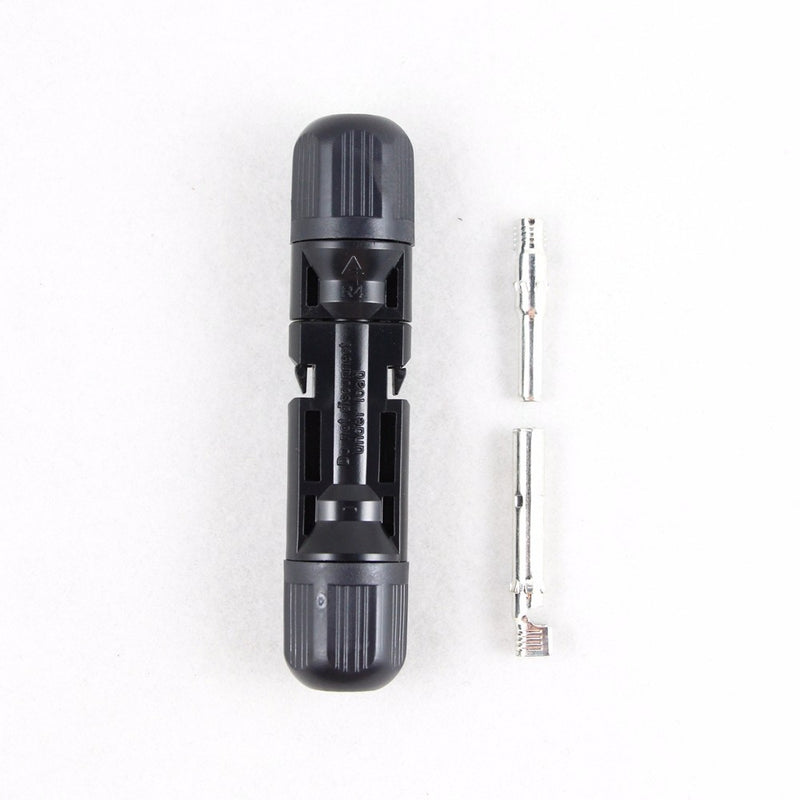

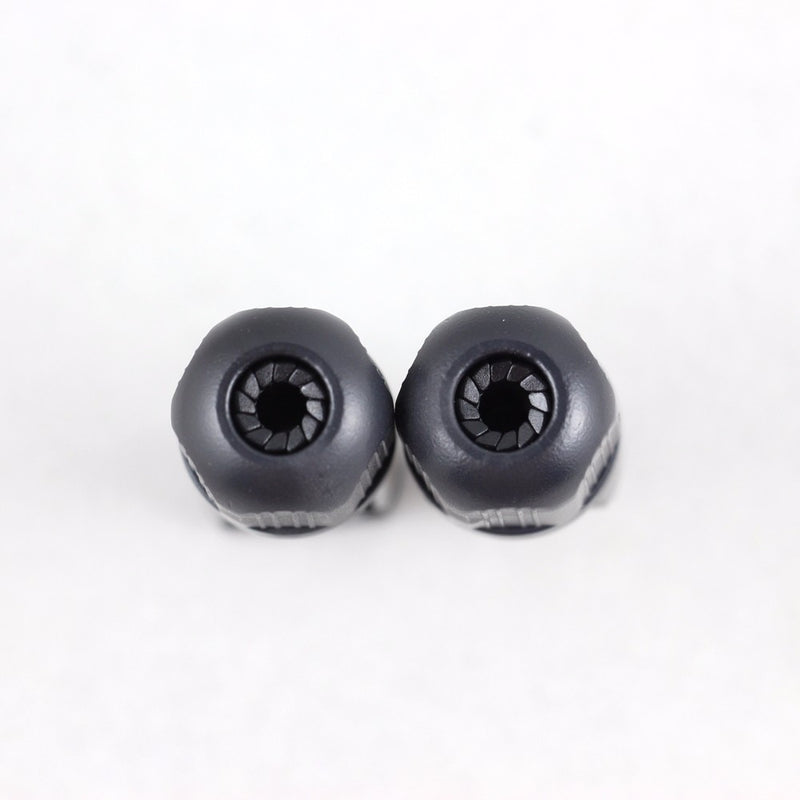

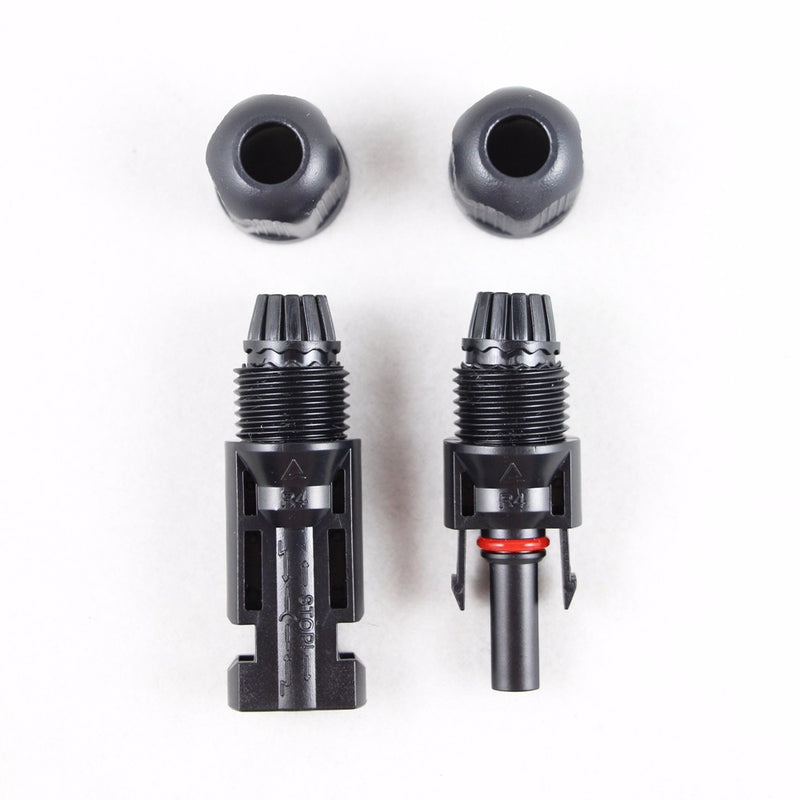

Details pictures:
