Product Usage:
►Sine wave drive three-phase brushless motor, suitable for --- air cushion machine, fuel cell, ventilator air supply, modified car seat cushion air supply, electric heat is sent air, high-grade soldering station smoke, sanding.
Product advantages:
►High pressure (full pressure 7.5KPA), large air volume (240 liters / minute), low noise (45M (A) 1KPa distance 1M far), long life (run 4 hours, stop 30 minutes life up to 25000 hours), The motor movement is designed with a hollow cup structure, featuring high efficiency, high speed and high stability.
►This brushless fan has stable start, small size, low noise, low temperature rise, long service life, high efficiency, accurate accuracy, energy saving and environmentally friendly materials.
Note:
This blower requires a drive to function properly.
Technical parameters:
| Project |
Unit |
WM7040-12V |
|
| Operate voltage |
V |
7.9-14.8 |
| Idle speed |
rpm |
34000+/-5% |
| Idle current |
A |
4.6+/-0.2 |
| Maximum air volume |
L/min |
240 |
| Maximum wind pressure |
cmH2O |
1-65 |
| Coil connection method |
|
Star |
| Body size |
mm |
L:70 H:37.5 |
| Weight |
g |
90 |
| Holzer angle |
|
60 |
| Bearing |
|
NSK Double balls bearing |
| Blower type |
|
Brushless DC |
| Rotor magnet pole number |
|
1 |
| Noise |
db(A) |
45(1M,10CMH2O) |
| Acceleration |
m/s2 |
<=55 |
| vibration acceleration |
mm/s |
<=9 |
| Vibration displacement |
mm |
<=0.025 |
| Using life |
Hours |
25000 |
| Project |
Unit |
WM7040-24V |
| Input voltage |
V |
24 |
| Idle speed |
rpm |
36000+/-5% |
| Idle current |
A |
2.8+/-0.2 |
| Maximum air volume |
L/min |
240-260 |
| Maximum wind pressure |
KPa |
7.5 |
| Coil connection method |
|
Star |
| Body size |
mm |
L:70 H:37.5 |
| Weight |
g |
90 |
| Holzer angle |
|
60 |
| Bearing |
|
NSK Double balls bearing |
| Blower type |
|
Brushless DC |
| Rotor magnet pole number |
|
1 |
| Noise |
db(A) |
45(1M,10CMH2O) |

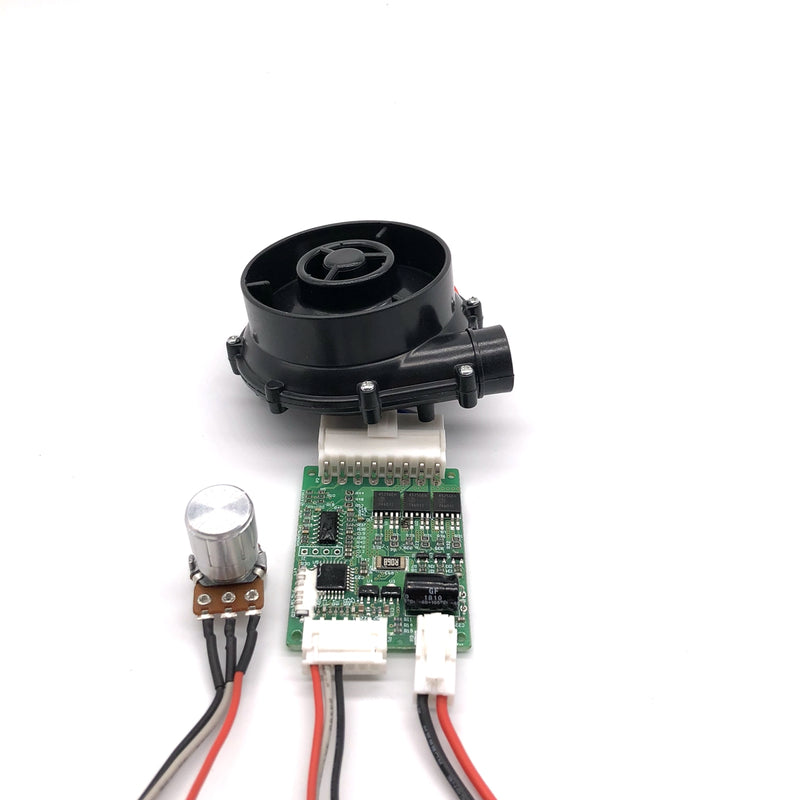

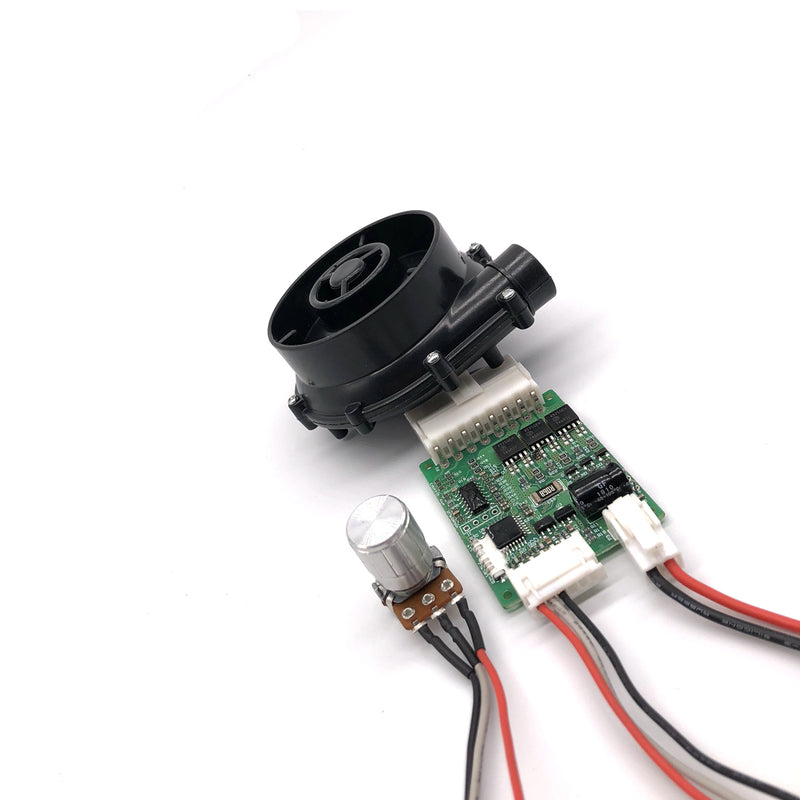

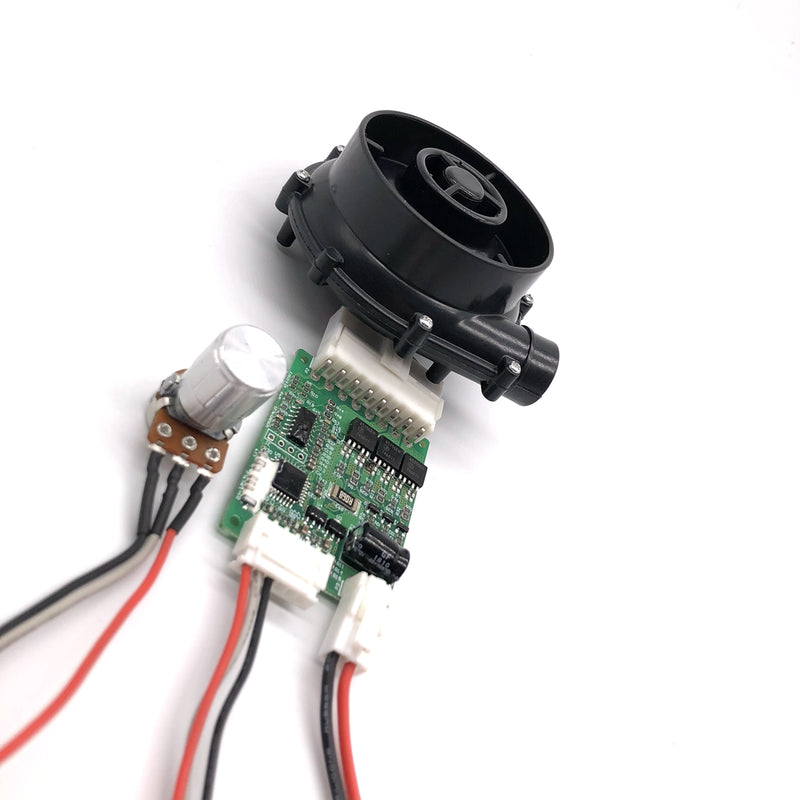

Package Included:1 x High Pressure Blower(without drive)Or1XDrive
