Specification:
| Brand |
XINWEI |
| Model |
XW-24-12-24W |
| Module nature |
Non-isolated BUCK |
| Input voltage |
DC 24V (wide pressure 14V-39V) |
| Output voltage |
DC 12V |
| Output current |
2A MAX 3A
|
| Output power |
24W |
| Conversion efficiency |
>93% |
| Ripple |
30MV |
| Low power consumption |
1.4MA |
| Working temperature |
-40 ° C ~ +85 ° C |
| Protection function |
Over-current over-voltage over temperature and short-circuit protection
|

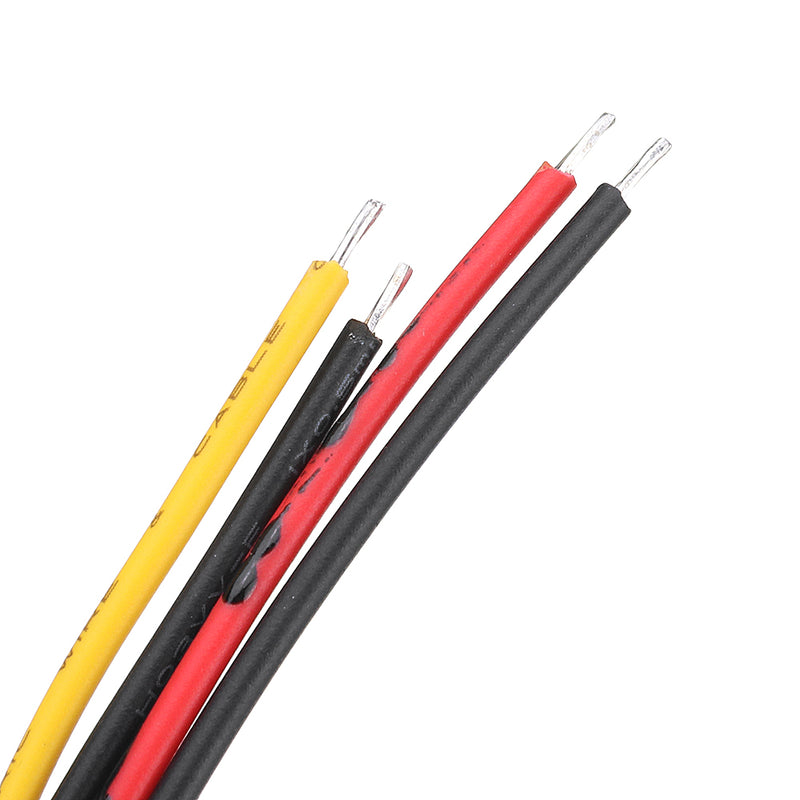

| Installation line length |
13-14cm |
| Waterproof rating |
IP67 |
| Shell size (L*W*H) |
46* 32 * 18mm |
| Weight |
53g |
Feature:
-- IP67 grade, waterproof, moisture proof, dustproof and shockproof-- Flame-retardant material shell, epoxy potting, better heat dissipation
-- Internal use of the original wellhead chip, with intelligent anti-overcurrent protection, overheat protection, short circuit protection, instantaneous absorption of high voltage protection, safer use.
Applicable voltage range: ►LED car display surveillance camera, router, ADSL cat, switch, LED light digital photo frame, electronic refrigerator, portable DVD, audio, security system, portable tools, printer network equipment, control equipment, various voltage parameters Industrial equipment.
Pacakge Included:
1 x Converter
