Specifications:
| Brand |
XINWEI |
| Model |
XW-36/48-12-300W |
| Module nature |
Non-isolated BUCK |
| Input voltage |
DC 36V48V (wide pressure 30V-60V) |
| Output voltage |
DC 12V |
| Output current |
25A Long term working within 20A |
| Output power |
300W |
| Conversion efficiency |
>93% |
| Ripple |
40MV |
| Low power consumption |
20MA |
| Working temperature |
-40 ° C ~ +85 ° C |
| Installation line length |
13-14cm |
| Waterproof rating |
IP67 |
| Shell size (L*W*H) |
74* 74 * 32mm |
| Weight |
260g |
Features:

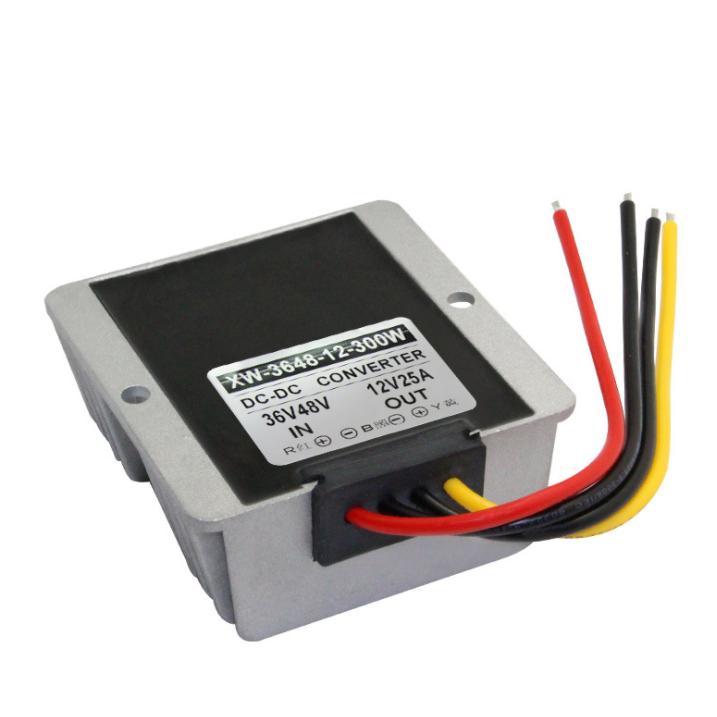

-- DC 36V/48V to 12V step-down converter

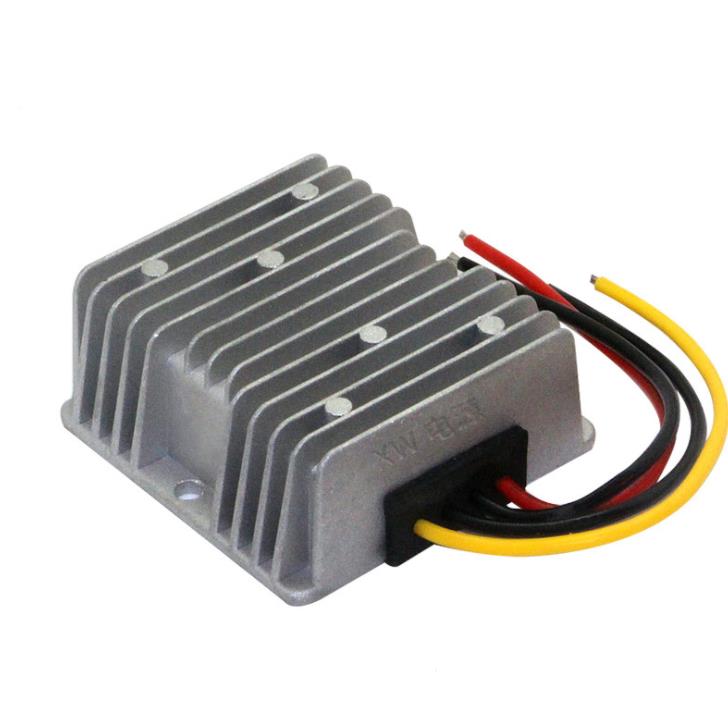

-- Die-cast aluminum shell natural heat dissipation
-- Built-in over/under voltage input, overload, overhead, and short circuit full protection
-- Applied voltage range of electrical appliances: Electric motor, audio, navigation, surveillance, LED display screen, air conditioner, electric fan, solar, photovoltaic energy source, DVD, LED lights, motors, pumps, and industrial electrical equipment etc
Package included:

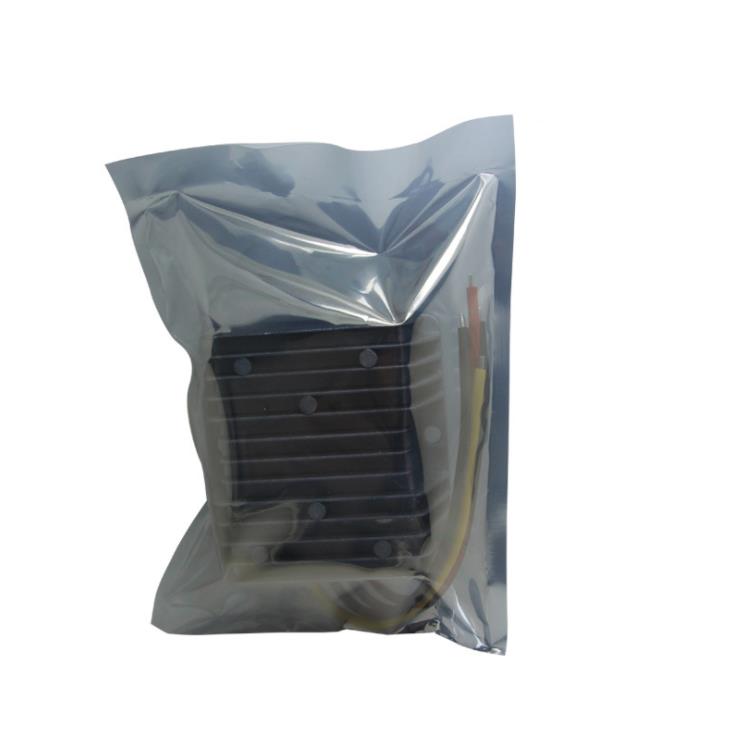

1 x DC 36V/48V to 12V 25A 300W Step Down Converter
