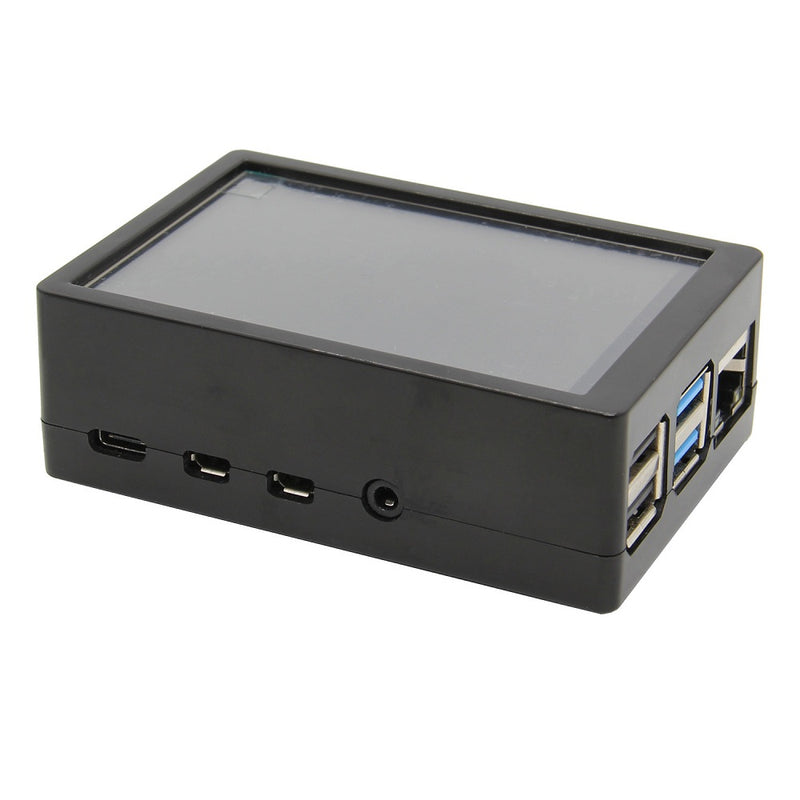

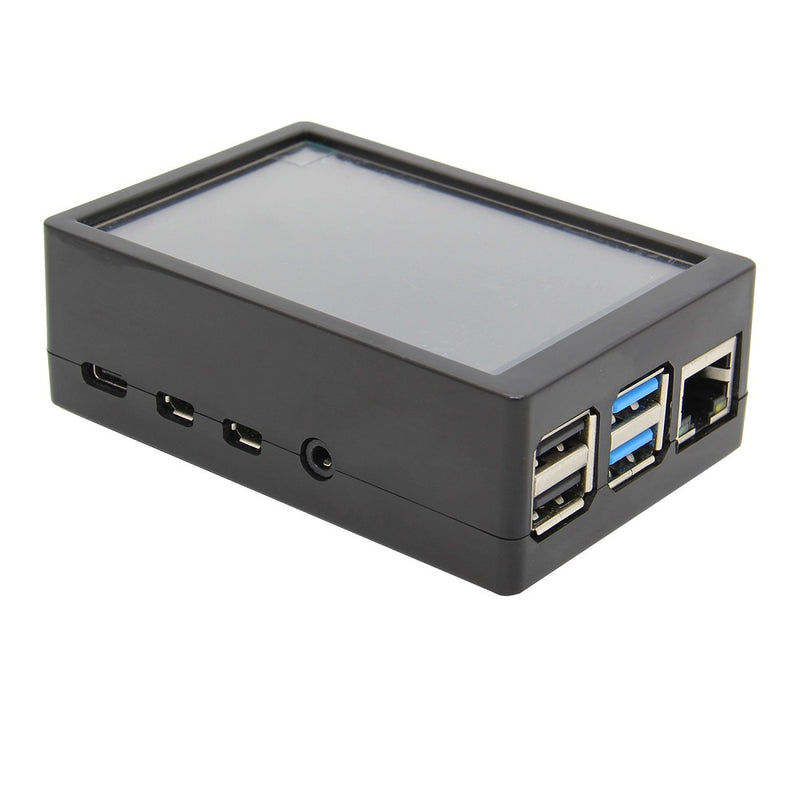

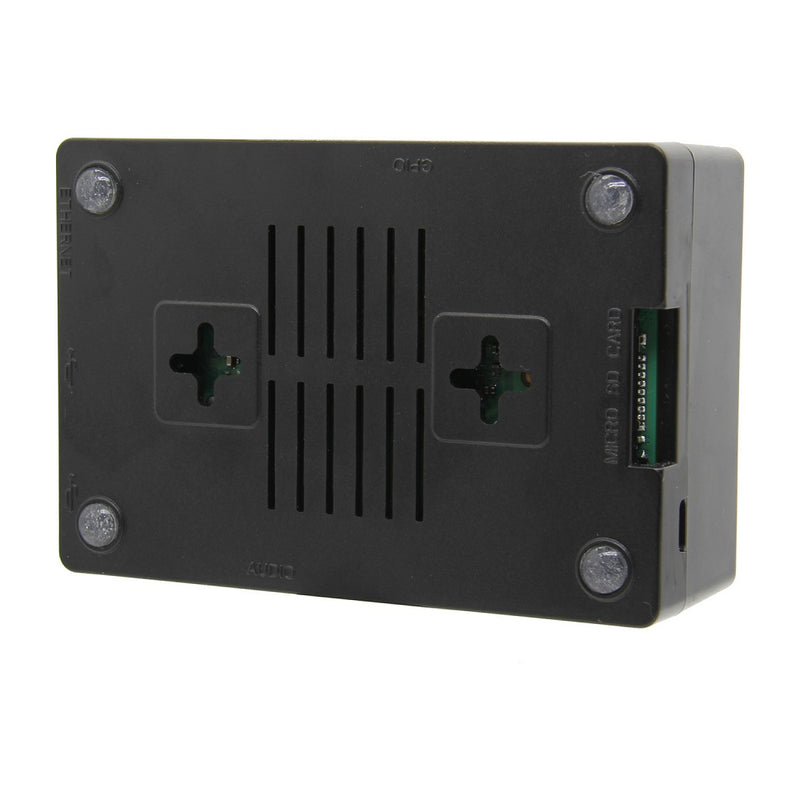

3.5 inch TFT Touch Screen with ABS Case 50FPS LCD Display 3 Aluminum Heatsink for Raspberry Pi 4B

3.5 inch TFT Touch Screen with ABS Case 50FPS LCD Display 3 Aluminum Heatsink for Raspberry Pi 4B

Name: 3.5 inch TFT Touch Screen with ABS Case 50FPS LCD Display 3 Aluminum Heatsink for Raspberry Pi 4B
Brand: Banggood
SKU: U2I-BG-1606980
Price: 7,226.00 INR
Availability: InStock

SKU: U2I-BG-1606980

Share this product

The Raspberry Pi is NOT included

Overview:

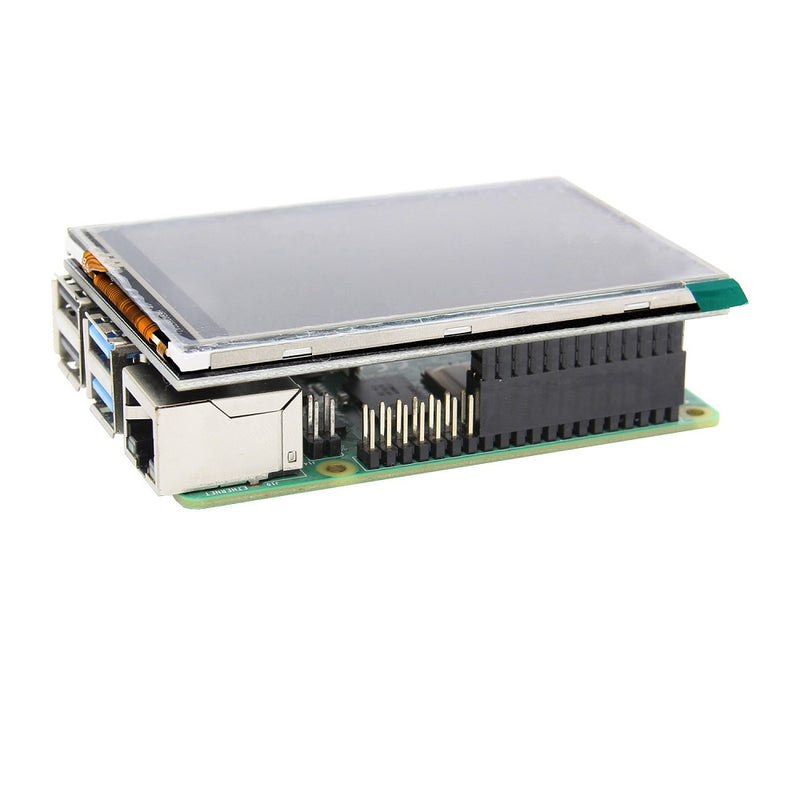

This is a raspberry pi 3.5 Inch TFT Touch Screen with 480*320 Physical resolution, it can support up to 125MHz SPI signal input, showing stable no screen and no flicker!

Features:

- 320×480 resolution
- Resistive touch control
- With the refresh rate of raspberry pie around 50Hz
- Compatible with Raspberry Pi 4B, 3B, 3B+
- Drivers provided (works with your own Raspbian/Ubuntu directly)
- Supports Raspbian system, ubuntu system ,kali Linux system

Specifications:

- LCD Type: TFT
- LCD driver IC: ILI9486L
- LCD Interface: SPI (up to 125MHz SPI input Max FPS: 50Mhz)
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: 65536
- Backlight: LED
- Resolution: 320*480 (Pixel)
- Backlight Current: 120ma
- Power: 0.16A x 5V
- Operating Temp. (℃): -20~70

This LCD Module need install driver first. For the driver installation, please refer to wiki

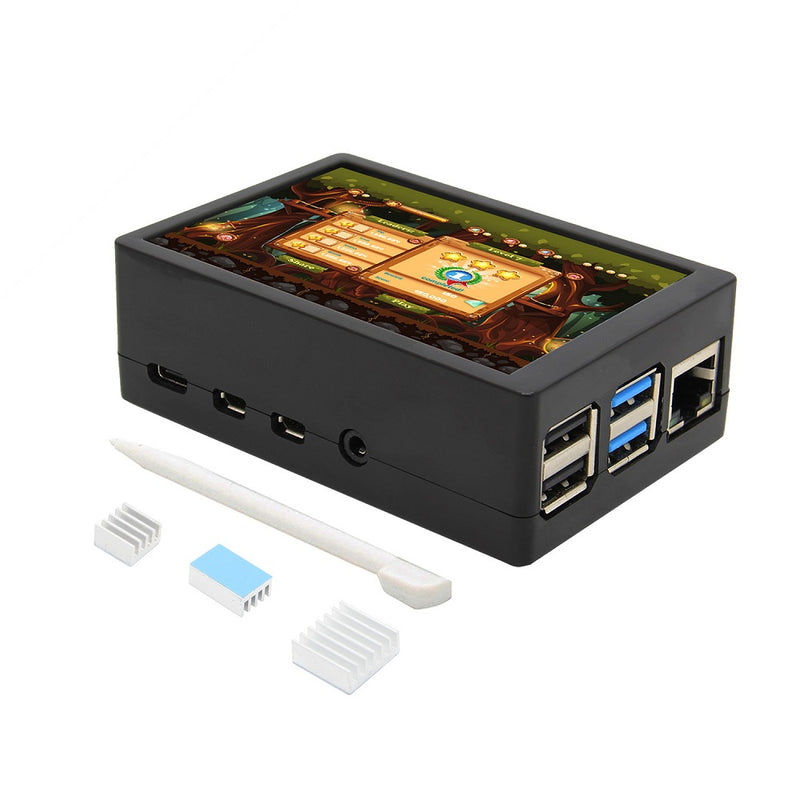

Package Included:

1 x 3.5 Inch TFT Touch Screen
1 x Touch pen
1 x ABS case
3 x Heatsilk
