Note: Raspberrry Pi is not included.
Introduction:

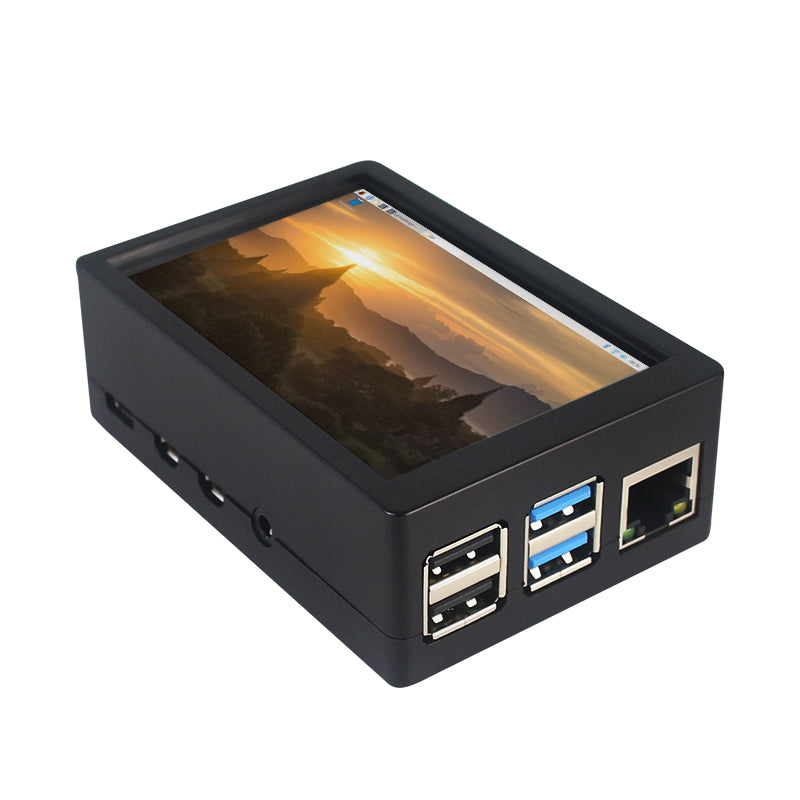

This is the dual use ABS case for 3.5 inch screen kit, suitable for Raspberry Pi 4 Model B.It is esay to install the case with screen and Raspberry Pi.When you use the Raspberry Pi with 3.5inch screen,please remove the cover of case;When you use Raspberry Pi with cooling fan,you needn't remover the cover of case.
Note:The 3.5inch screen and cooling fan can't be used at the same time.
Specifications:Colour: Black
Material: ABS plastic
Size: 90*61*35
Applicable to: Raspberry Pi 4B
3.5-inch touch screen or fan that can install Raspberry Pi
Knowing that: 3.5-inch display and fan cannot be installed at the same time due to the PIN pin
3.5inch Touch Screen Features:
1. Physical resolution 320 x 480, with resistive touch control
2. It supports up to 125MHz SPI signal input, showing stable no screen and no flicker
3. With the refresh rate of raspberry pie around 50Hz, play video to play the game without pressure
4. Support FBCP software drive, support double screen display, can adjust the resolution of the software to zoom
5. Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+ , 4B)
6. Support Raspbian/Ubuntu/Kali system, provide driver and image
7.More information please refer to this link :
http://www.lcdwiki.com/MHS-3.5inch_RPi_Display
Note:
Please plug the screen on Raspberry Pi's GPIO pins correctly( as the picture) , otherwise the touch function will be damaged.
How to Use the Touch LCD
Step 1:Download the Raspbian image
https://www.raspberrypi.org/downloads/raspbian/
Step 2: Burn the system image to the SD card
https://projects.raspberrypi.org/en/projects/raspberry-pi-setting-up/3
Stop 3 : Connect the LCD to Raspberry Pi , insert the system SD card , connect the Ethernet and power on it
Step 4: Open terminal(SSH) and install the driver on RaspberryPi
(1)Execute the following commands (RaspberryPi needs to connect Internet):
sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./MHS35-show
(2) After the above commands are executed, the system will automatically restart and be able to display and touch normally now.

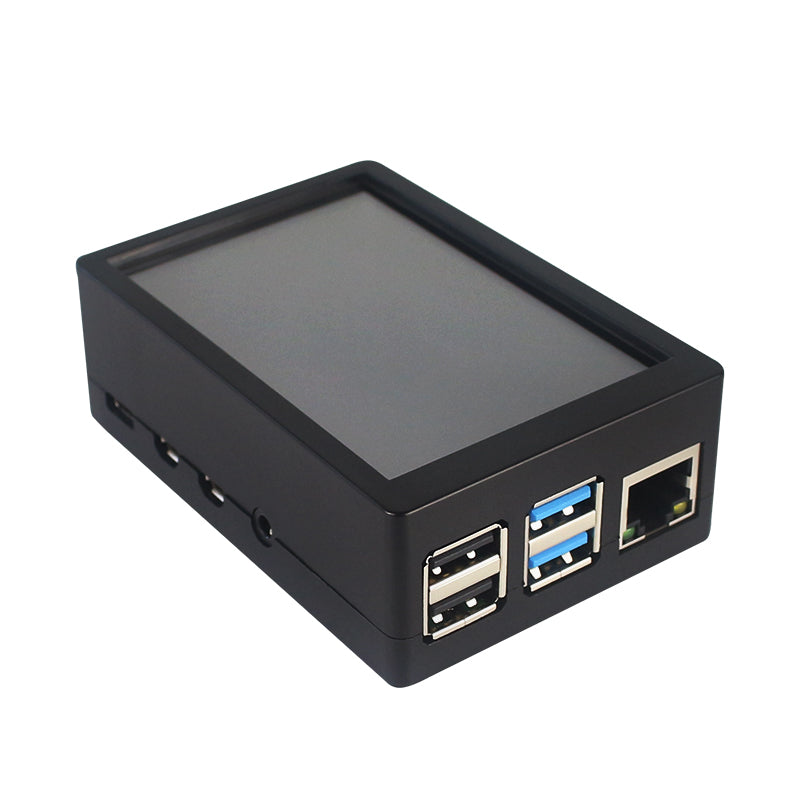

About Dual Use ABS Case:
1.The Case made of ABS material,support to install 3.5 inch touch screen,and need to remove the cover of case. When you don't use the 3.5 inch touchscreen , it is a general case with cooling fan.The 3.5inch screen and cooling fan can't be used at the same time.
2.The case is design for Raspberry Pi 4 Model B , remain almost all interface such as USB , Ethernet , A/V , micro HDMI , SD card slot , display , camera( CSI). (Note: A1 case remain GPIO and POE hole , but A2 case does not remian)
3.We make 2 hole on the bottom so that you can hange the case on the wall or something else . This design is very convenient when using the 3.5 inch touchscreen.

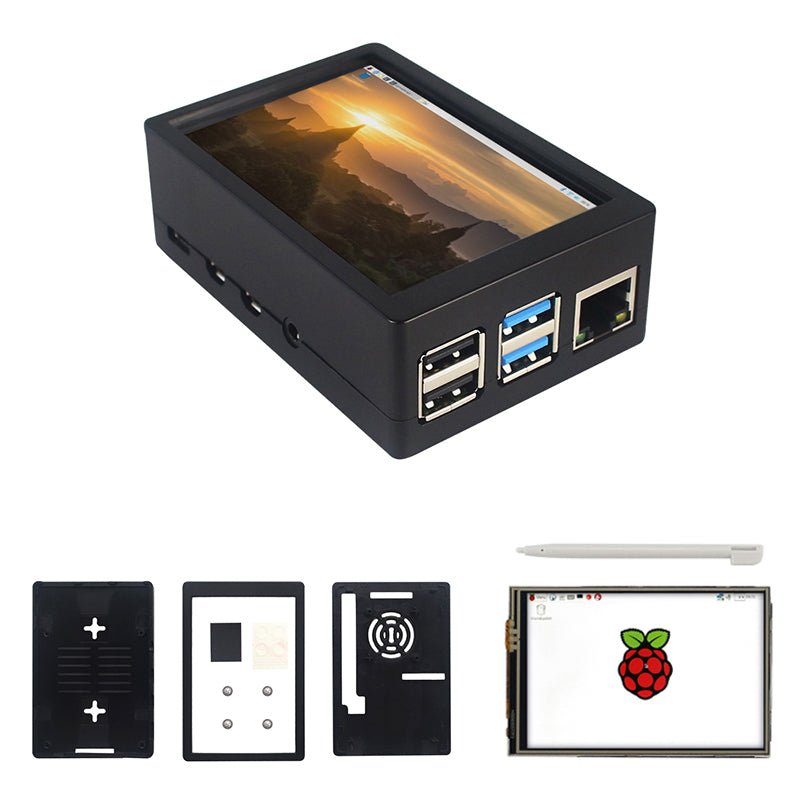

Package Included:
1 x ABS box case
1 x touch screen

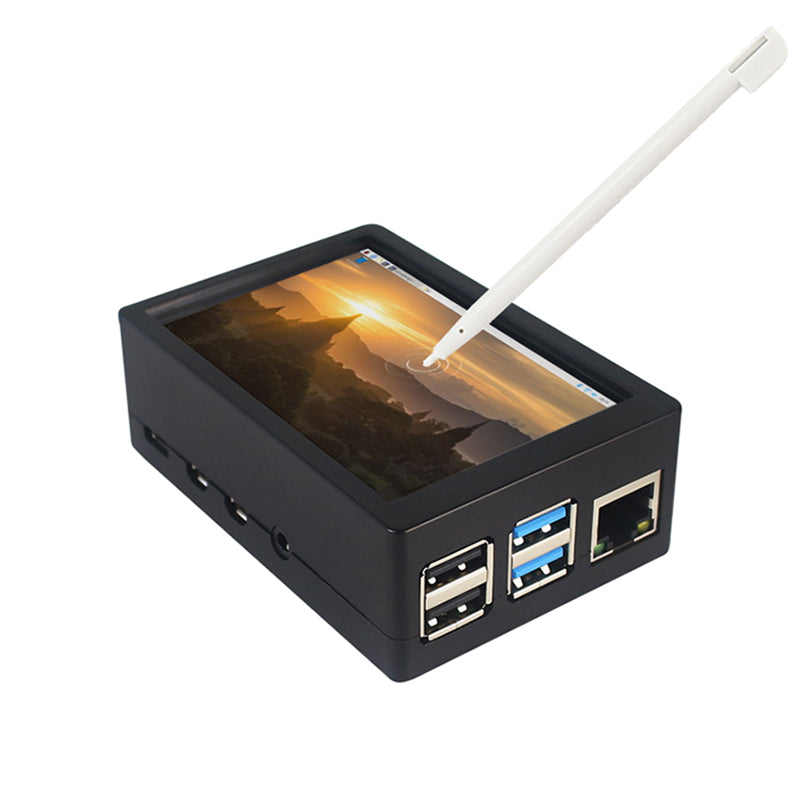

1 x touch screen pen
